Weifang Xincheng Original 495 Series 4100 31 kW High-Performance Premium Four-Cylinder Four-Stroke Mechanical Diesel Engine
ZH4100/4102/4105D Technical Parameters Model ZH4100/4102/4105D Diesel engine power 31-33-40KW Speed 1500r/min Type In line, water-coo...
Category Diesel Generator
Keywords engine assembly, machinery engines, engine, diesel engine, 4 stroke engine
Email Now
Call Us / Whatsapp

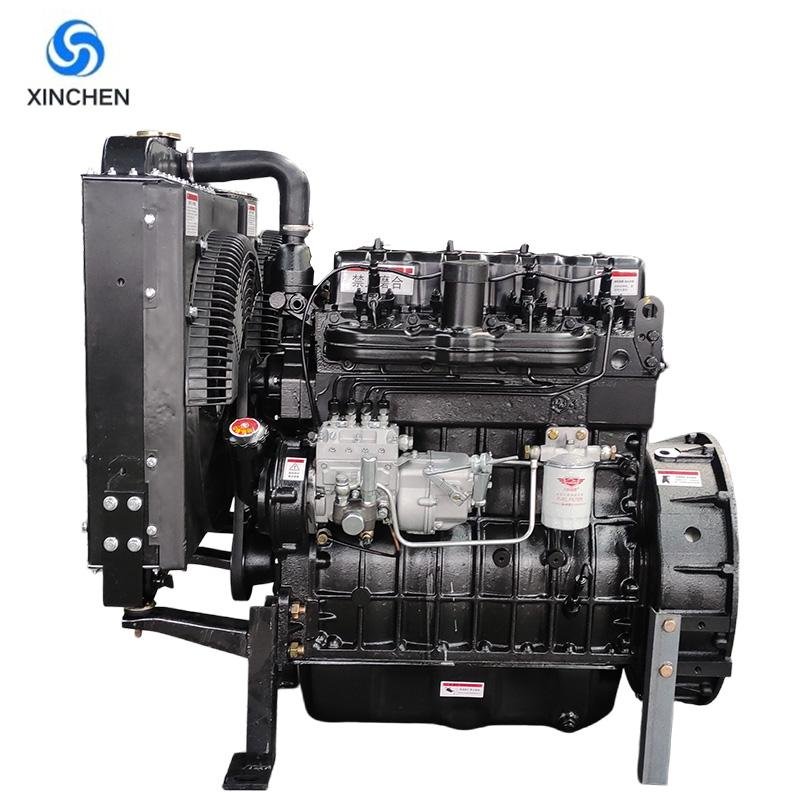

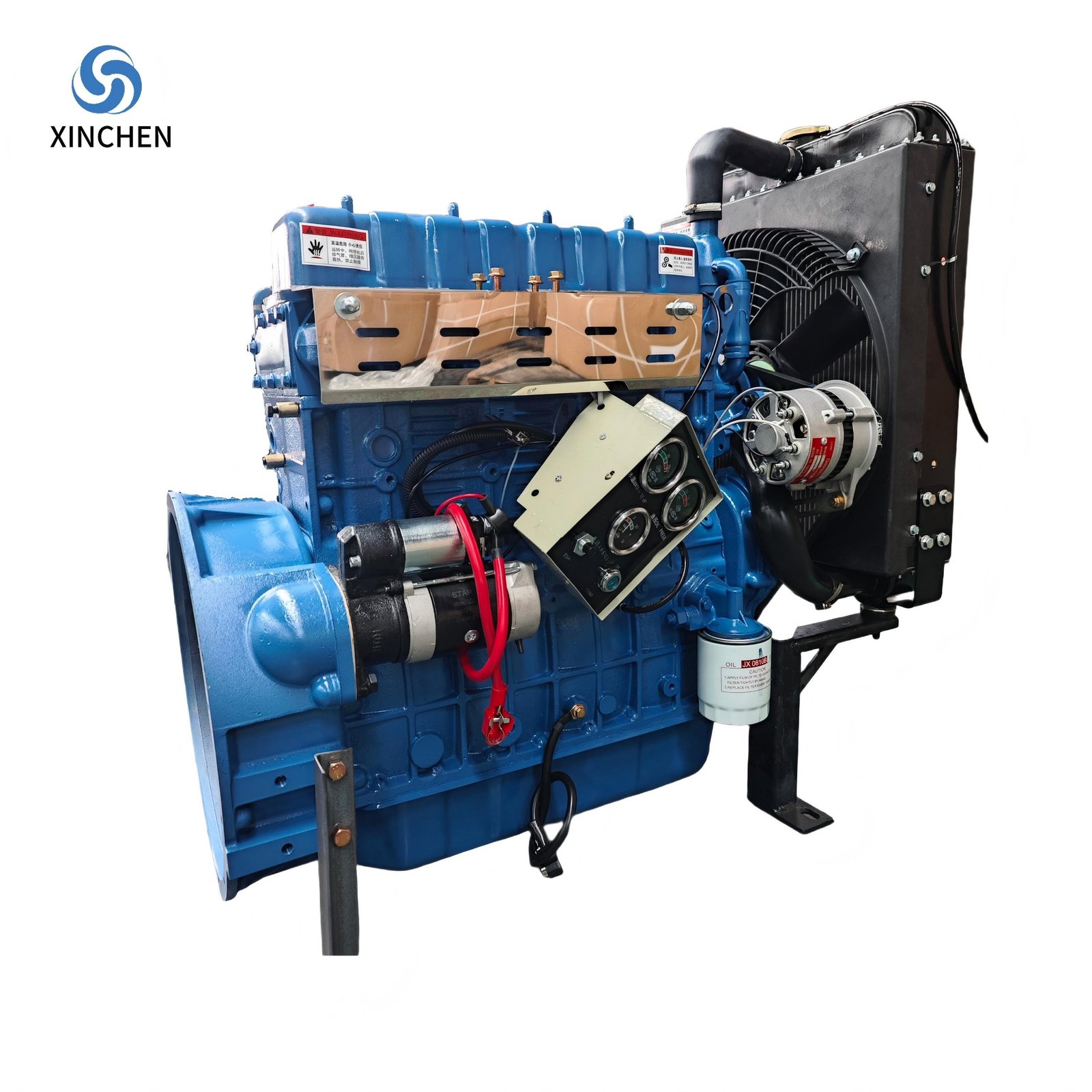

Weifang Xincheng Original 495 Series 4100 31 kW High-Performance Premium Four-Cylinder Four-Stroke Mechanical Diesel Engine
|
ZH4100/4102/4105D Technical Parameters
|
|||
| Model | ZH4100/4102/4105D | ||
| Diesel engine power | 31-33-40KW | Speed | 1500r/min |
| Type | In line, water-cooled, four stroke | Minimum speed of empty vehicle | 850±50r/min |
| Intake Type | Natural inhalation | Cyinder Quantity | 4 |
| Burning pattern | Direct injection | Cylinder working sequence | 1-3-4-2 |
| Bore*stroke (mm) | 100*115/ 102*115/105*115 | lubrication method | Pressure and Splash Composite |
| Cylinder liner type | Wet type | Cooling method | Closed forced water cooling |
| Displacement | 3.62L | Direction of crankshaft rotation (viewed from the flywheel end) |
Counterclockwise |
| Compression Ratio | 19:1 | speed regulation method | Mechanical speed regulation |
| Noise | ≤107dB(A) | Startup method | Electric starter 24V |
| Oil consumption rate | ≤2.04g/KW.h | Fuel consumption rate (g/KW. h) | ≤258.4g/KW.h |
| Net mass (flywheel end stop) |
340kg | Dimensions(flywheel housing end stop) length * width * height mm |
1016*585*880 |
| Diesel Fuel | 0# diesel oil; the smoke emission at rated working conditions meets environmental protection requirements. | ||
 |
|||
