Chendura is a Company integrating the research and development, sales and after-sales of diesel engines, diesel generator sets and water pump sets. It specializes in providing various diesel engine complete machines and diesel engine accessories.
Read MoreGallery
Ricardo series 4100 4105 4105 30KW-72KW high-quality 4-cylinder water-cooled diesel engine
Item Model ZH4100D ZH4102D ZH4102ZD ZH4105D ZH4105ZD 4105ZLDS air intake mode Inhale naturally Inhale naturally Turboc...
Category Diesel Engine
Keywords engine, diesel engine, ricardo diesel engine, high quality engine, wanter cooled diesel engine
Email Now
Call Us / Whatsapp

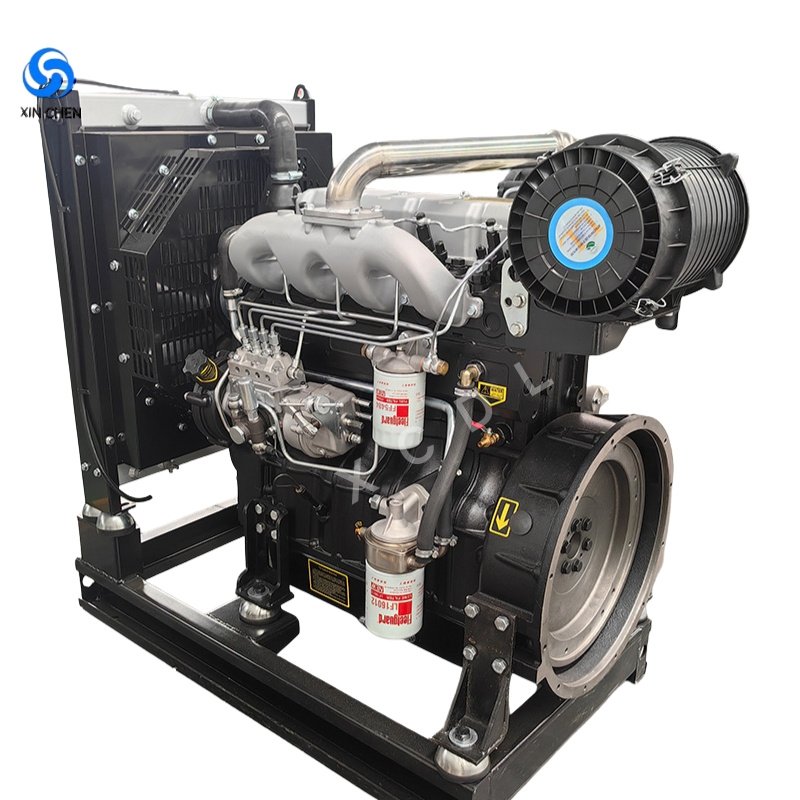

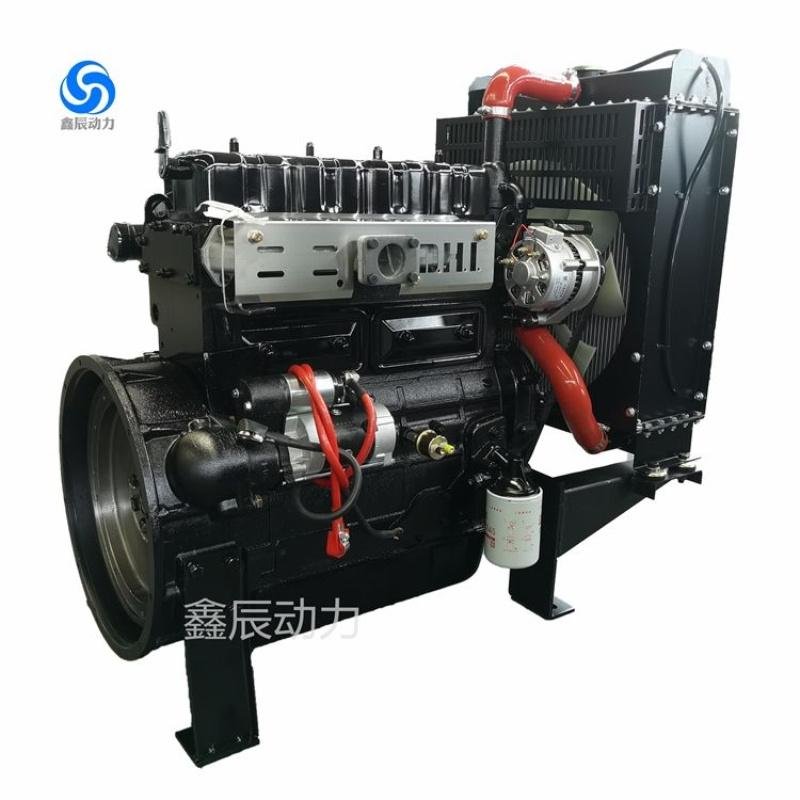

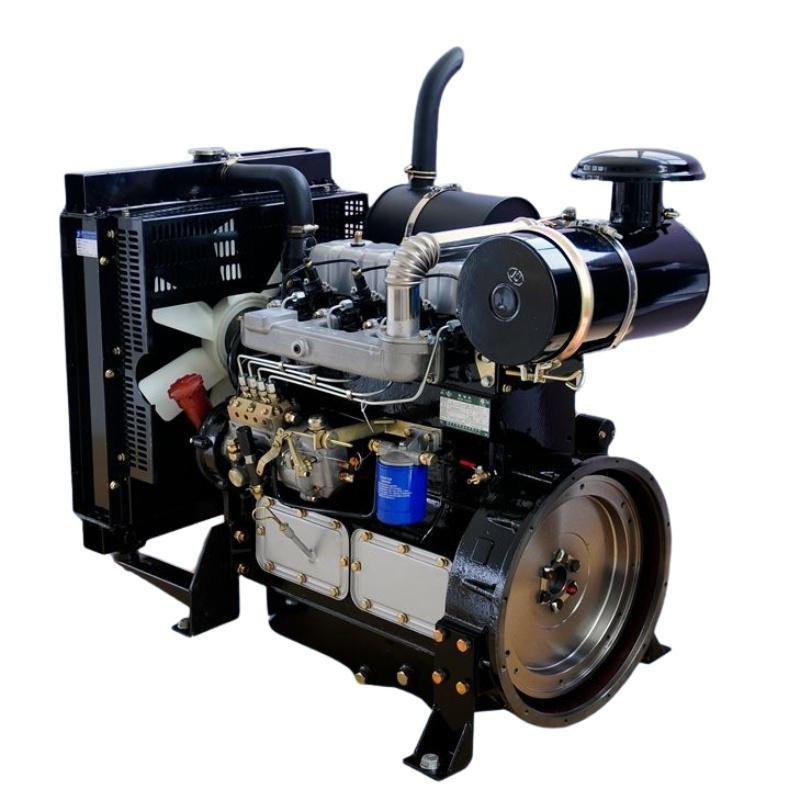

Ricardo series 4100 4105 4105 30KW-72KW high-quality 4-cylinder water-cooled diesel engine
| Item Model | ZH4100D | ZH4102D | ZH4102ZD | ZH4105D | ZH4105ZD | 4105ZLDS |
| air intake mode | Inhale naturally | Inhale naturally | Turbocharge | Inhale naturally | Turbocharge | Pressurized intercooled |
| Way of burning | Direct injection | Direct injection | Direct injection | Direct injection | Direct injection | Direct injection |
| Cyl | 4 | 4 | 4 | 4 | 4 | 4 |
| Bore diameter×stroke（mm） |
100×105 | 102×115 | 102×115 | 105×120 | 105×120 | 105×120 |
| Displacement（L） | 3.61 | 3.61 | 3.61 | 4.15 | 4.15 | 4.15 |
| Calibration speed （r/min） |
1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Main power（kW） | 30 | 33 | 42 | 38 | 56 | 66 |
| Calibration speed （r/min） |
1800 | 1800 | 1800 | 1800 | 1800 | 1800 |
| Main power（kW） | 33 | 40 | 46 | 42 | 62 | 73 |
| Calibration speed （r/min） |
2000 | 2000 | 2000 | 2000 | 2000 | 2000 |
| Main power（kW） | 36 | 44 | 52 | 46 | 65 | 68 |
| Calibration speed （r/min） |
2200 | 2200 | 2200 | 2200 | 2200 | 2200 |
| Main power（kW） | 47 | 49 | 58 | 60 | 68 | 72 |
| （r/min) Highest no-load speed |
≤1575 | ≤1575 | ≤1575 | ≤1575 | ≤1575 | ≤1575 |
| Lowest no-load speed （r/min) |
≤650 | ≤650 | ≤650 | ≤650 | ≤650 | ≤650 |
| Fuel consumption rate（g/kW.h) | ≤225 | ≤220 | ≤220 | ≤220 | ≤210 | ≤210 |
| Cooling method | Forced water cooling |
Forced water cooling |
Forced water cooling |
Forced water cooling |
Forced water cooling |
Forced water cooling |
| Lubricating method | Pressure splash composite |
Pressure splash composite |
Pressure splash composite |
Pressure splash composite |
Pressure splash composite |
Pressure splash composite |
| Starting method | Electric start |
Electric start |
Electric start |
Electric start |
Electric start |
Electric start |
| Net mass (kg) | 380 | 390 | 390 | 360 | 400 | 420 |
