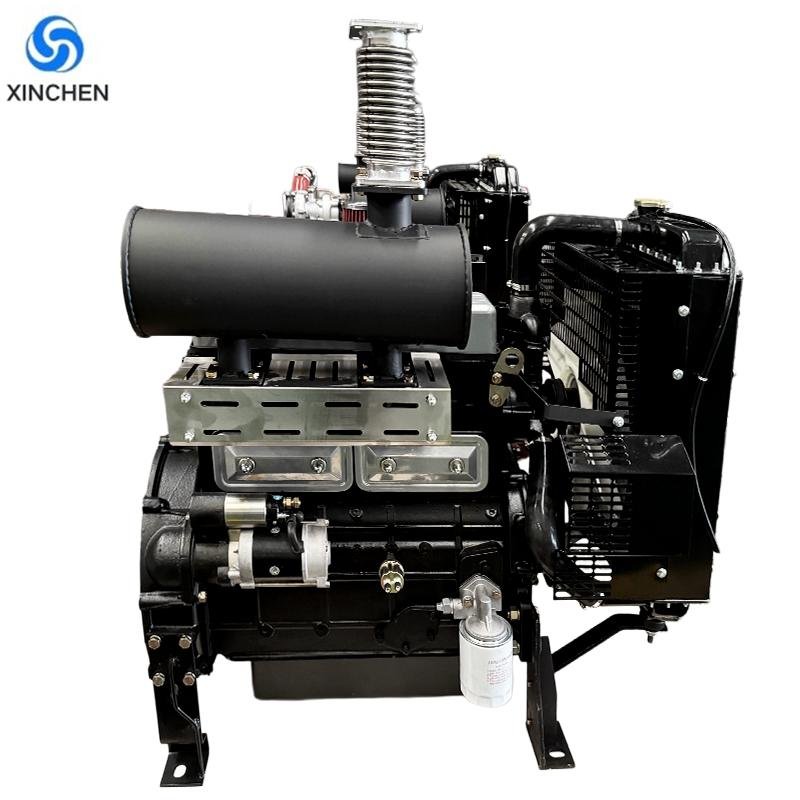

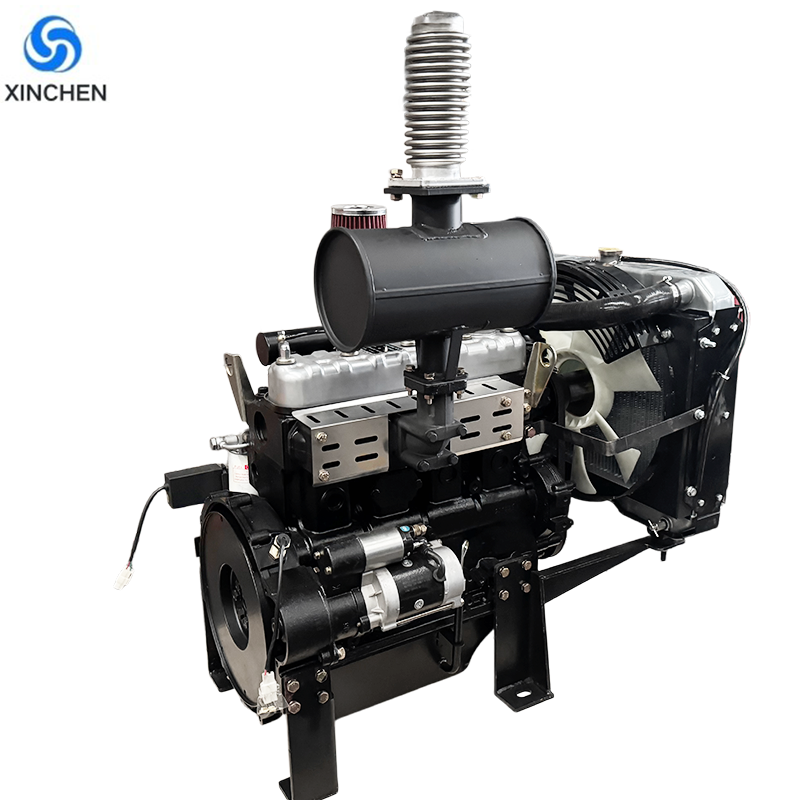

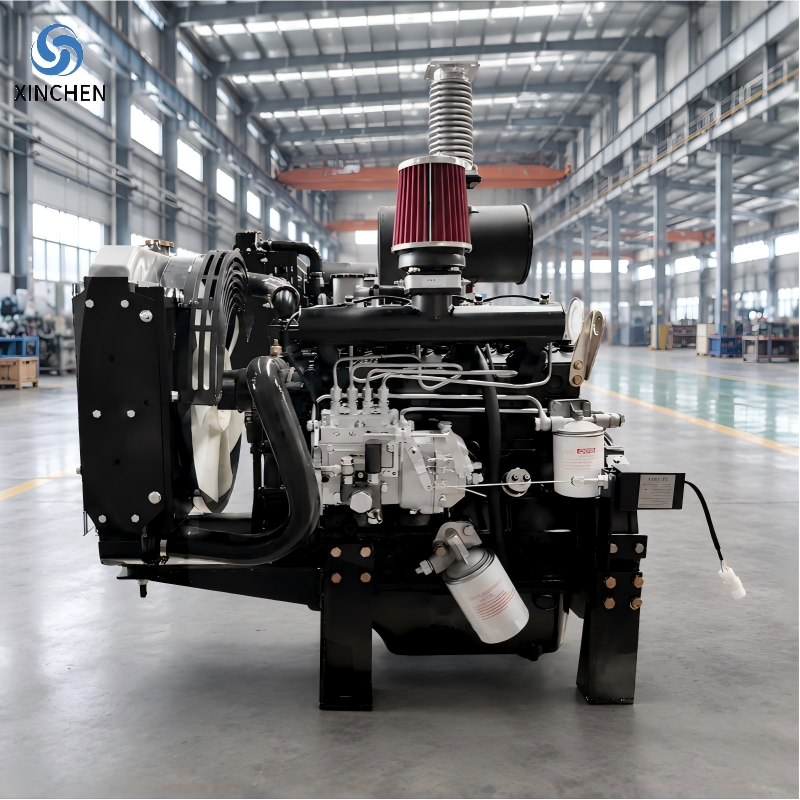

1500 Rpm, 24kw/30kVA, Four-Cylinder, Four-Stroke, Small Diesel Engine
|
ZH490D/490ZD/490ZLD Technical Parameters
|
|||
|
Model
|
ZH490D/490ZD/490ZLD
|
||
|
Diesel engine power
|
24KW/26KW/28KW
|
Speed
|
1500r/min
|
|
Type
|
In line, water-cooled, four stroke
|
Minimum speed of empty vehicle
|
850±50r/min
|
|
Intake Type
|
NaturallyAspirated/Turbocharging/Turbocharged & Intercooled
|
Cyinder Quantity
|
4
|
|
Burning pattern
|
Direct injection
|
Cylinder working sequence
|
1-3-4-2
|
|
Bore*stroke (mm)
|
90*100
|
lubrication method
|
Pressure and Splash Composite
|
|
Cylinder liner type
|
Wet type
|
Cooling method
|
Closed forced water cooling
|
|
Displacement
|
2.2L
|
Direction of crankshaft rotation
(viewed from the flywheel end) |
Counterclockwise
|
|
Compression Ratio
|
18:1
|
speed regulation method
|
Mechanical speed regulation
|
|
Noise
|
≤107dB(A)
|
Startup method
|
Electric starter 24V
|
|
Oil consumption rate
|
≤2.04g/KW.h
|
Fuel consumption rate (g/KW. h)
|
≤253g/KW.h
|
|
Net mass
(flywheel end stop) |
205kg
|
Dimensions(flywheel housing end stop)
length * width * height mm |
950*750*980
|
|
Diesel Fuel
|
0# diesel oil; the smoke emission at rated working conditions meets environmental protection requirements.
|
||
 |
|||
