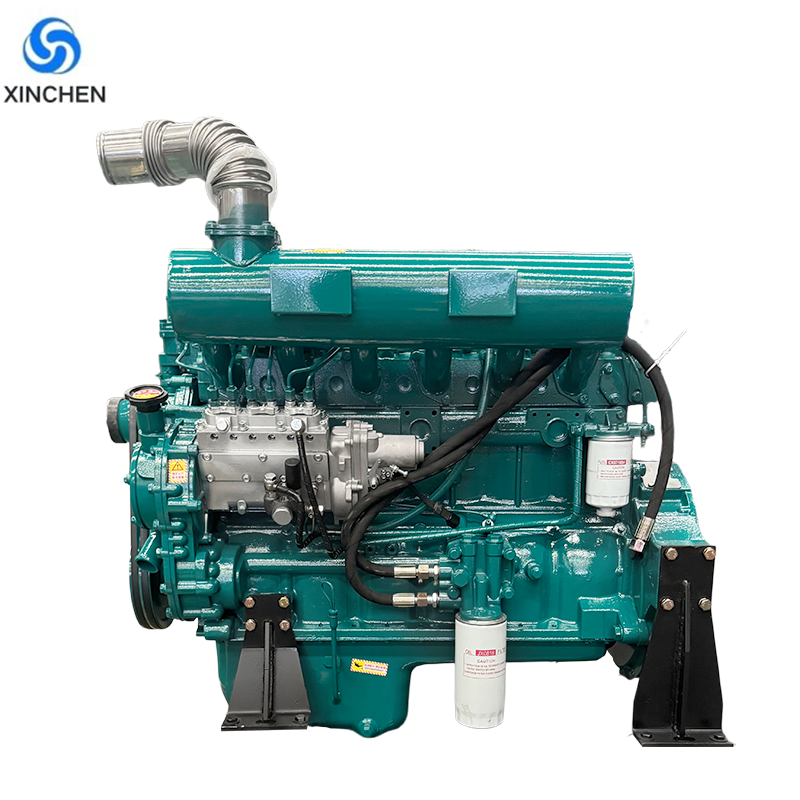

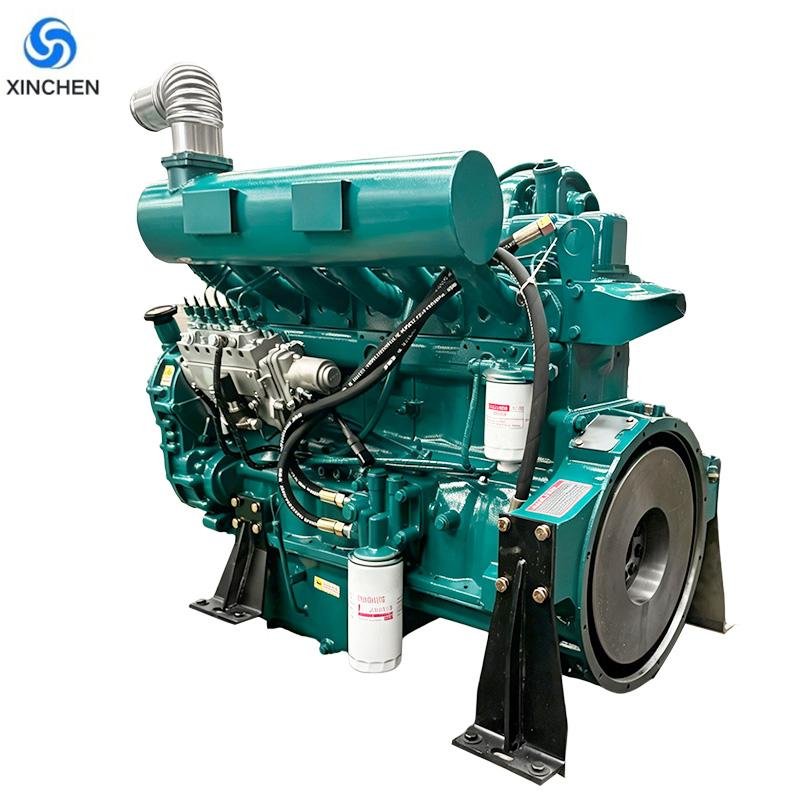

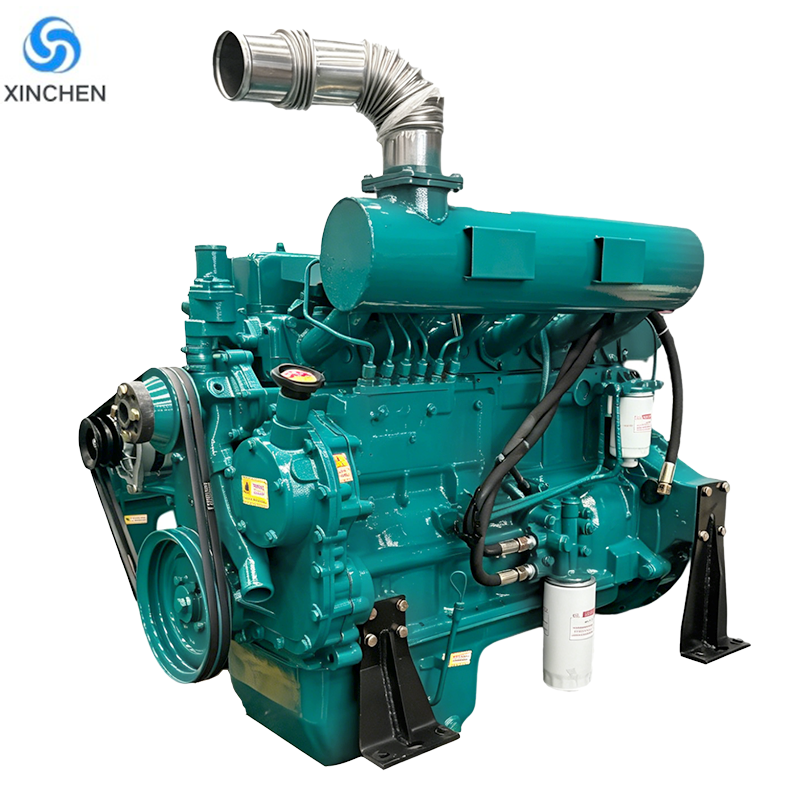

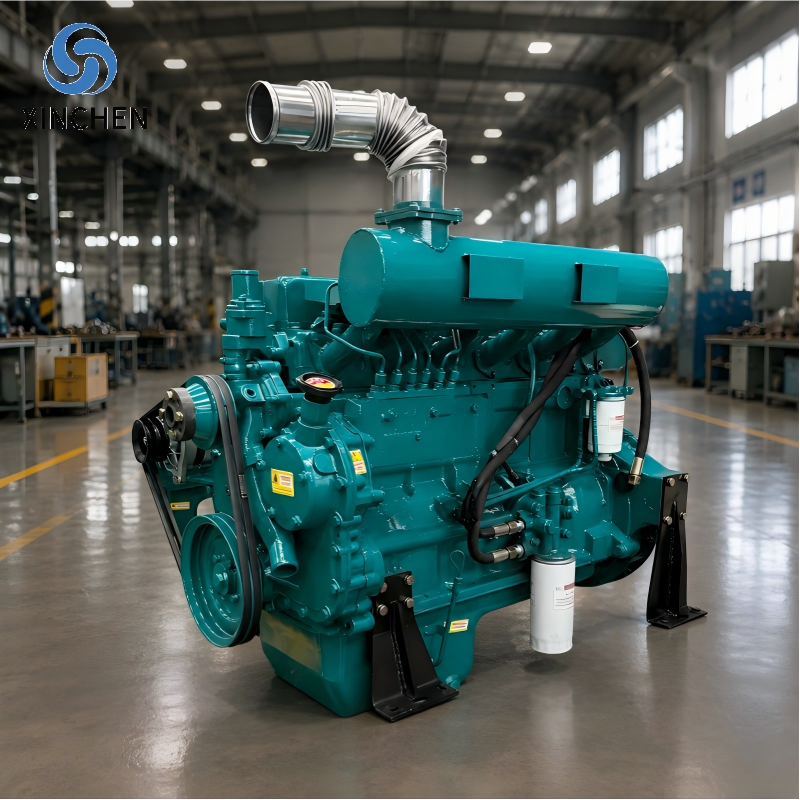

156kw 212HP R6110zld Six-Cylinder Four-Stroke Water-Cooled Diesel Engine, EU Certified
|
Engine Parameter
|
|||||
|
Model
|
R6110ZLD
|
||||
|
Rated power
|
156
|
KW
|
Rated speed
|
1500
|
r/min
|
|
Number of cylinders
|
6
|
Way of burning
|
Direct injection
|
||
|
diameter×stroke
|
110×135
|
mm
|
Displacement
|
7.01
|
L
|
|
Compression ratio
|
16:1
|
cylinder working sequence
|
1-5-3-6-2-4
|
||
|
oil temperature≤
|
105
|
℃
|
Cooling water outlet temperature ≤
|
90℃
|
|
|
Oil Pressure
|
0.3-0.5
|
MPa
|
Idle oil pressure ≥
|
0.1MPa
|
|
|
Exhaust temperature
|
470
|
℃
|
Fuel Type
|
Diesel
|
|
|
Fuel consumption rate≤
|
231
|
g/kw.h
|
Oil consumption rate ≤
|
1.63
|
g/kw.h
|
|
air intake mode
|
Turbocharged & Intercooled
|
Cooling method
|
water cooling
|
||
|
Speed Control
|
Mechanical speed regulation
|
Starting method
|
24VElectric start
|
||
|
Lubricating method
|
Pressure splash composite
|
Way of burning
|
Direct injection
|
||
|
Crankshaft rotatingdirection(ace to output end)
|
Counterclockwise (from flywheel end)
|
||||
 |
|||||
