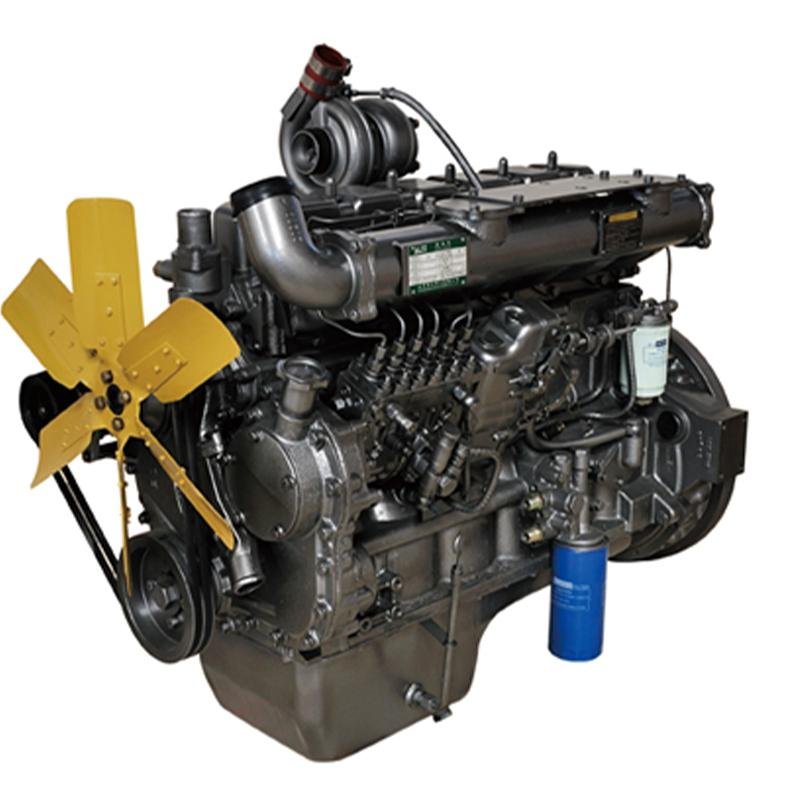

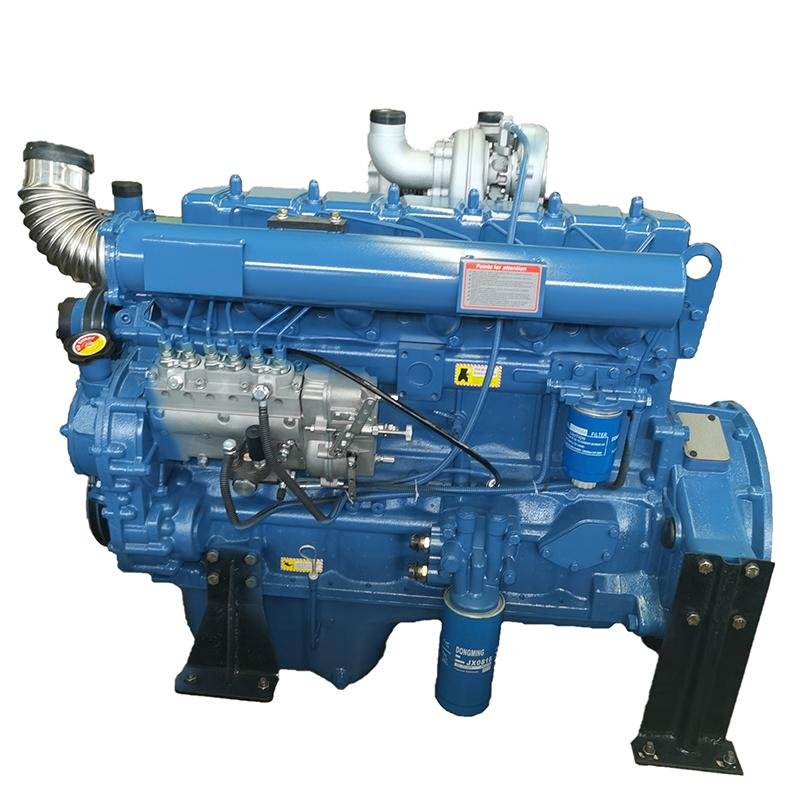

6105 6113 Diesel Engines for Generator/Water Pump/Marine Use

List of diesel engine performance parameters
Diesel engine model R6105D
 power KW Ps
60HZ(1800r/min) Excess power 80 109
Rated power 82 112
Maximum no-load stable speed 1890r/min(60HZ) 1575r/min(50HZ)
Minimum no-load stable speed 650r/min
Type

Inline, water-cooled, four-stroke
Burning method Direct injection Burning chamber
Number of cylinders

6
 Bore × stroke 105×135 mm
Total piston displacement 7.01 L
Shrinkage ratio

16 :1
Ignition sequence 1-5-3-6-2-4
 Air intake method


The direction of rotation of the crankshaft

Counterclockwise (from flywheel end)
Connection flywheel housing Dedicated flywheel
Net weight 620 kg
标定转速机油压力Calibrated speed oil pressure 0.3-0.5 MPa
 Oil pressure at idling

0.1 MPa
Cooling water outlet temperature 90
Oil temperature

105
 Exhaust temperature 600
Fuel consumption rate 218 g/kw.h
Fuel consumption rate 1.63 g/kw.h
Oil grade Better than CD15W/40
Cool the way Closed forced water circulation cooling system
Activation Method:

24 V Electric start
 Fuel Type:

Diesel oil
