2105/2110d Small 2-Cylinder Water-Cooled Diesel Engine

ZH 2 110 D Technical parameters of diesel engine Model ZH 2 110 D Rated power: 18 KW ...

Category Diesel Engine

Keywords Diesel Engine, 2105Diesel Engine, 2110Diesel Engine, Water-Cooled Diesel Engine, 28HP Diesel Engine

Email Now

anna@chendura.com

Call Us / Whatsapp

+8613884816171

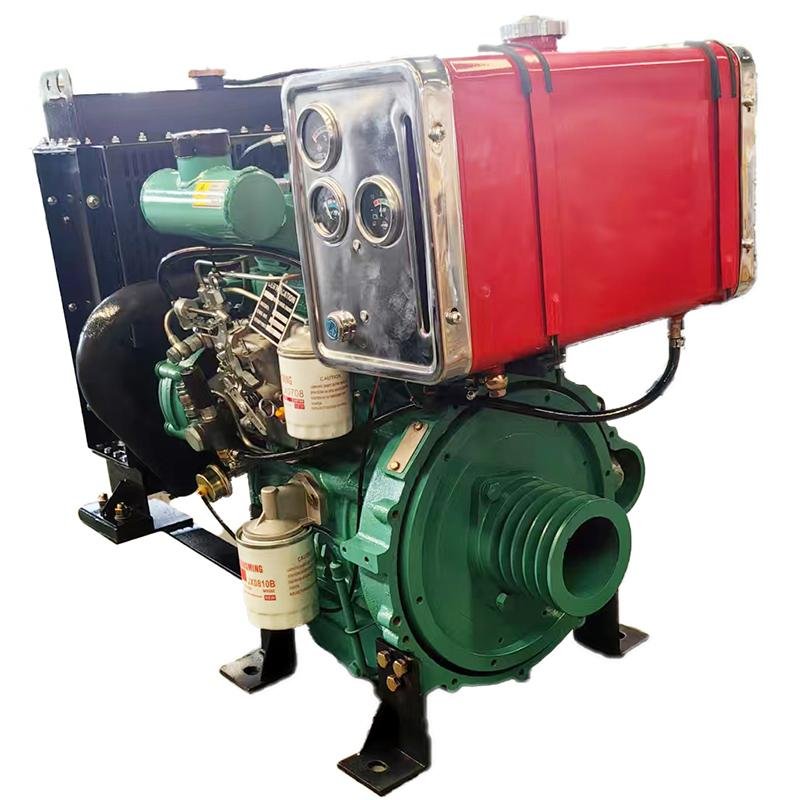

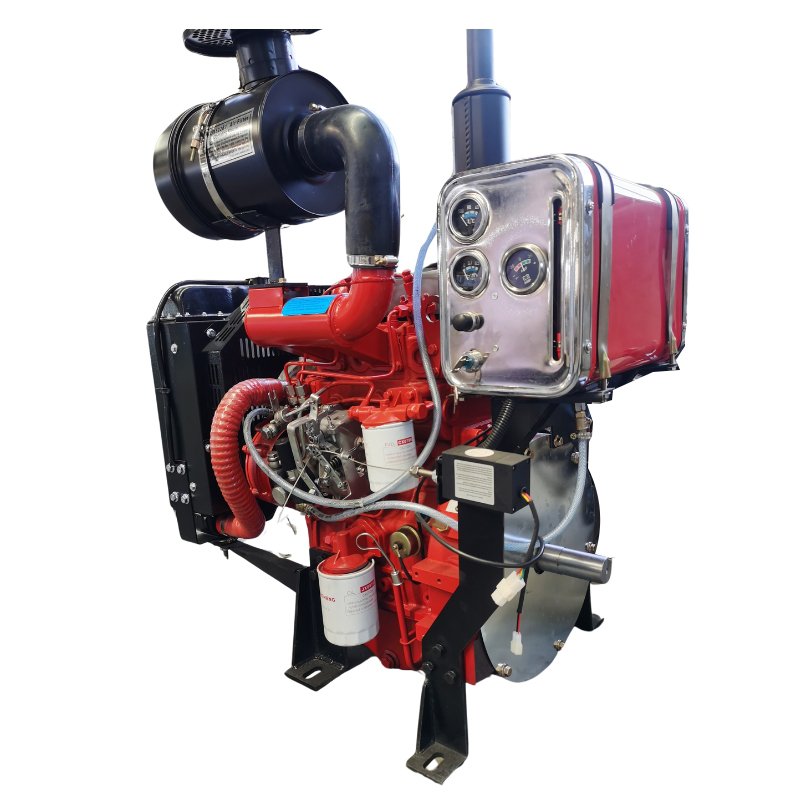

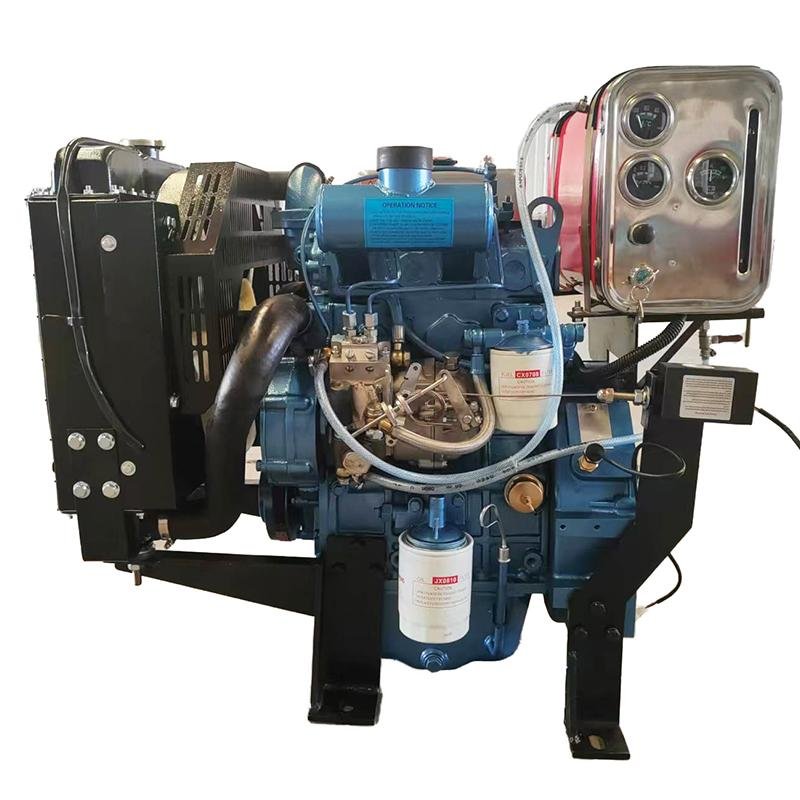

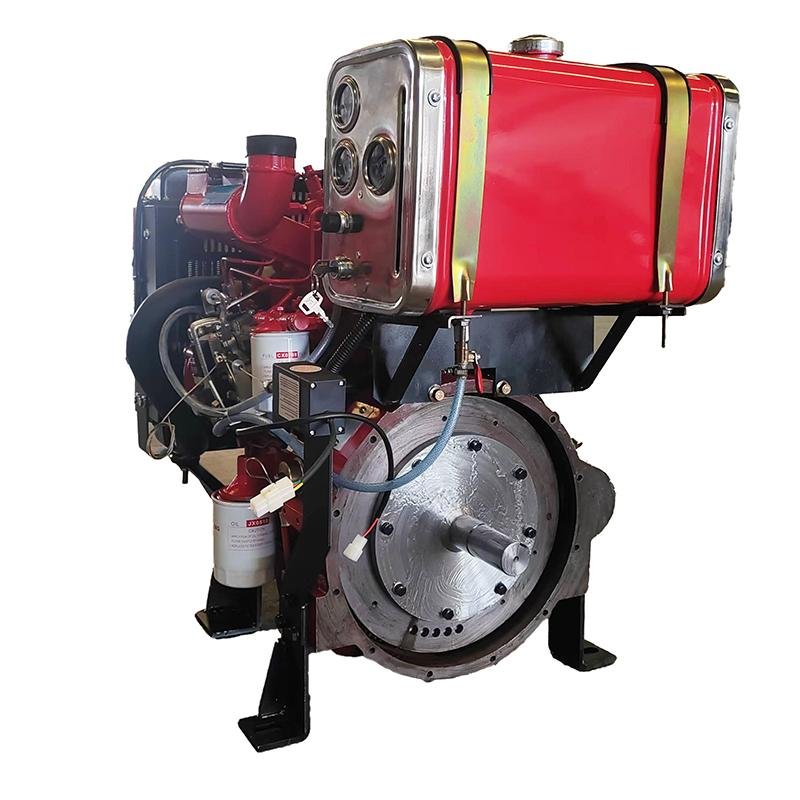

2105/2110d Small 2-Cylinder Water-Cooled Diesel Engine

		ZH	2	110	D	Technical parameters of diesel engine
Model					ZH		2	110	D
Rated power:	18		KW		Rated speed:			1500		r/min
Maximum no-load stable speed:	1620			r/min	Minimum no-load stable speed:		850	±	50	r/min
of cylinders	2				Type		In-line water-cooled four-stroke
cylinder diameter × Stroke	110	×	117	（mm）	Total piston displacement:			2.224		L
Compression ratio:	17		:1		Ignition sequence:			1	_	2
Nm/r/min：		129.2	/1650-1760		≤Cooling water outlet temperature: ≤		≤	95		℃
Rated speed oil pressure:	0.2	—	0.5	MPa	:Heat engine idle oil pressure:		≥	0.08		MPa
Noise:	≤	110		dB(A)	Grade:			Better than CD15W/40
Consumption Rate:	≤	246		g/kw.h	consumption rate: ≤		≤	2.04		g/kw.h
intake mode:			Inhale naturally		Cooling Method:			Closed water cooling
Speed regulation mode:	Mechanical speed regulation				Method:				12 V electric start
Smoothing method:	and spatter combined				method:				combustion chamber
Crankshaft rotation direction: counterclockwise (from flywheel end) Angle:	19		±	1°	Fuel Type:					GB diesel
Crankshaft rotation direction: counterclockwise (from flywheel end)					Fuel consumption at full load (L/h)		5		L/h
capacity(L):	5		L		mass (with clutch):		220		kg
approximately	750636850				use		Stationary power
