K4100D/K4100ZD Four Cylinders Diesel Engine Generator Price 3 Phase 50Hz/60Hz for Silent

Diesel engine model K4100D Output power KW Ps 60HZ（1800r/min） Excess power 33 45 Rated power 36 49 50HZ（1500r/min） Exc...

Category Diesel Engine

Keywords K4100D Diesel Engine, K4100ZD Diesel Engine, Diesel Engine Generator, 490Diesel Engine, RicardoDiesel Engine

Email Now

anna@chendura.com

Call Us / Whatsapp

+8613884816171

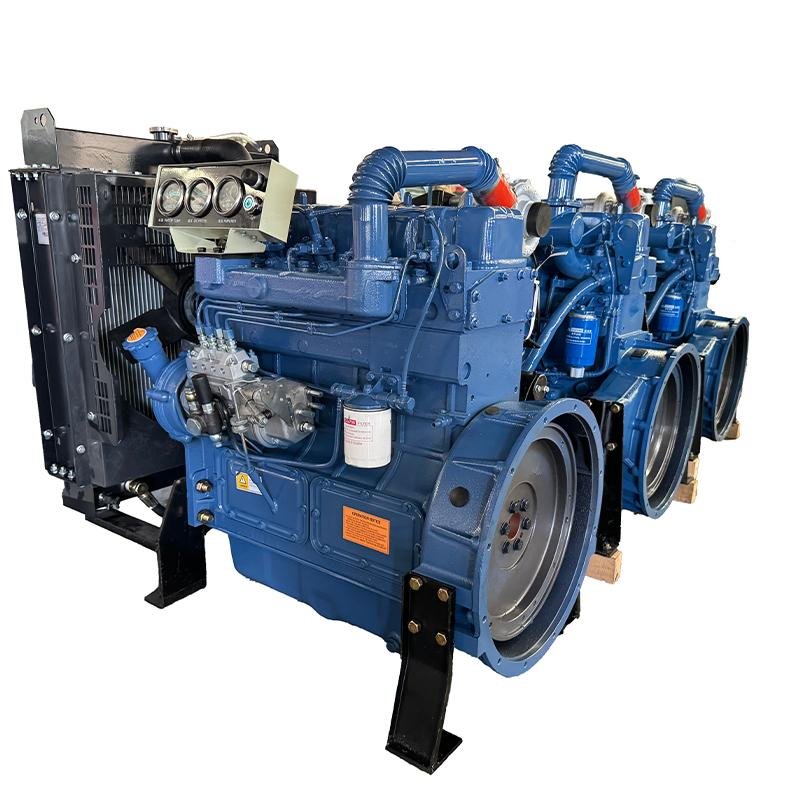

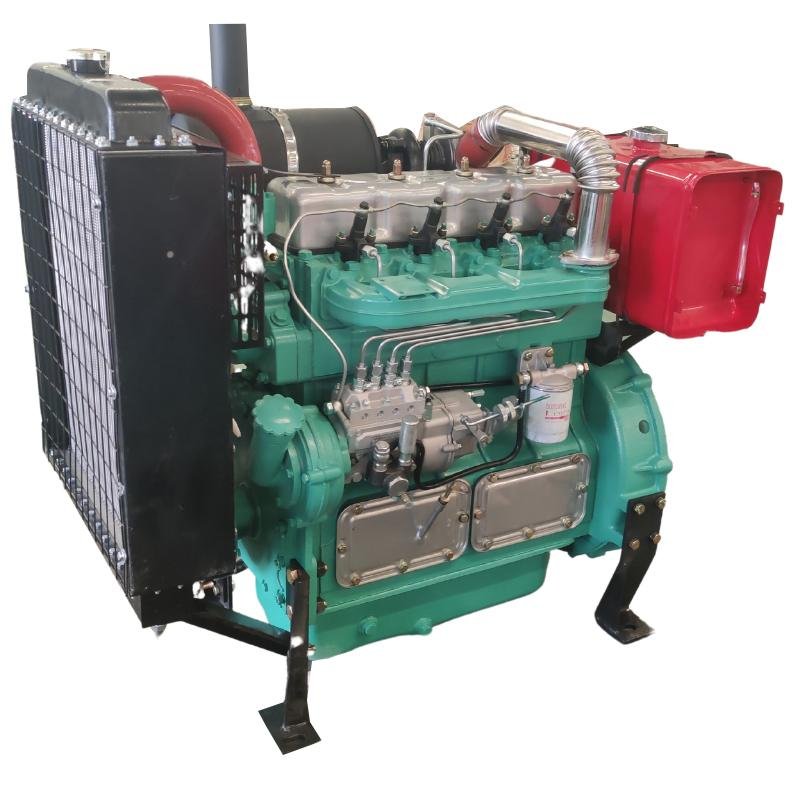

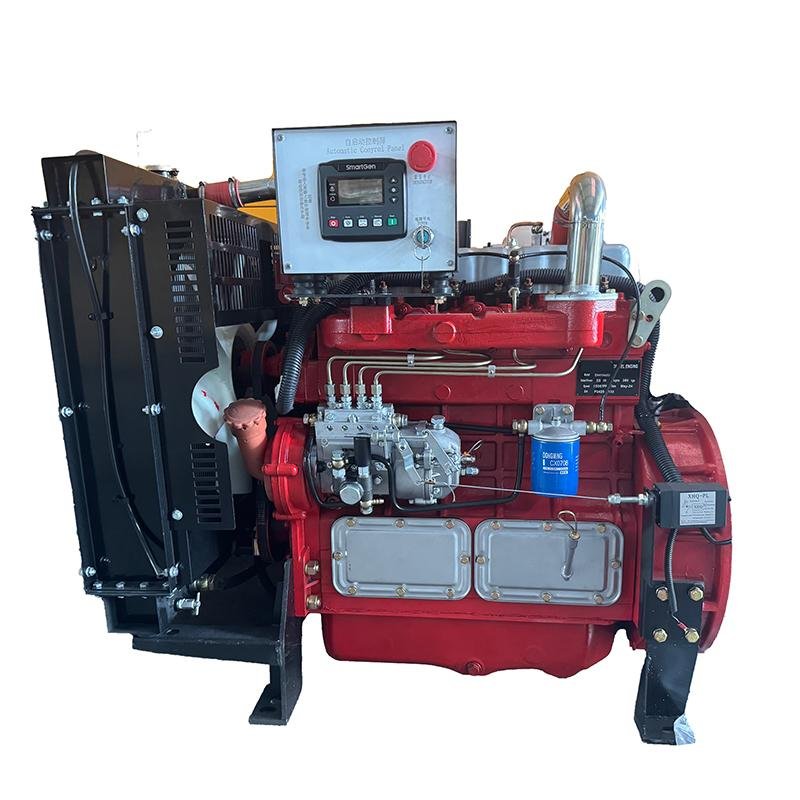

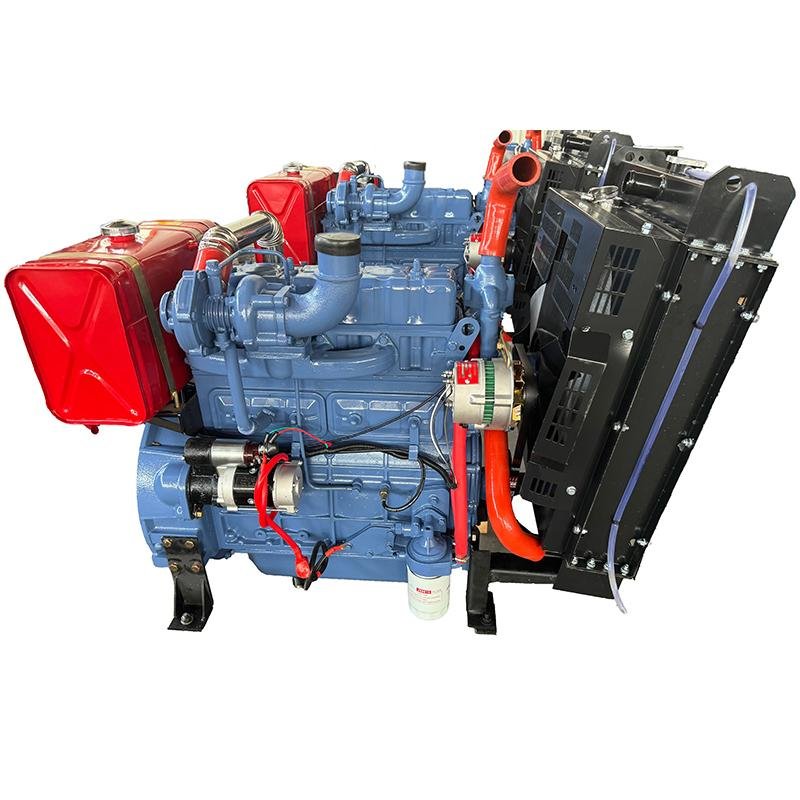

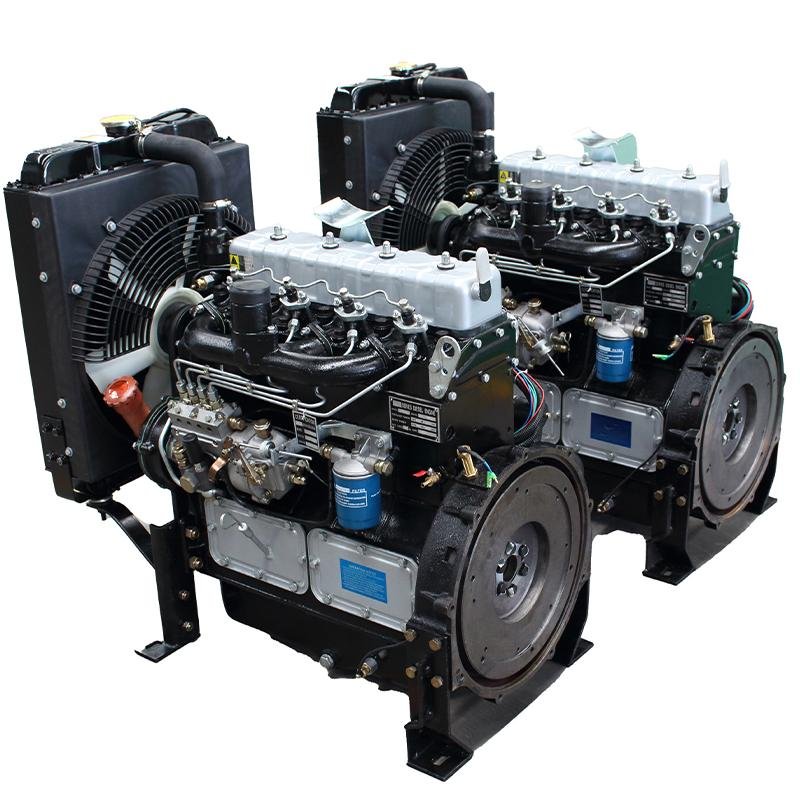

K4100D/K4100ZD Four Cylinders Diesel Engine Generator Price 3 Phase 50Hz/60Hz for Silent

Diesel engine model		K4100D
Output power		KW		Ps
60HZ（1800r/min）	Excess power	33		45
	Rated power	36		49
50HZ（1500r/min）	Excess power	31		42
	Rated power	33		45
Maximum no-load stable speed	1890r/min（60HZ)		1575r/min(50HZ)
Minimum no-load stable speed	650r/min
Type	Inline, water-cooled, four-stroke
Burning method	Direct injection		Burning chamber
Number of cylinders	4
Bore × stroke	100*115			mm
Total piston displacement	3.62			L
Shrinkage ratio	19		:1
Ignition sequence	1-3-4-2
Air intake method	Turbocharged
The direction of rotation of the crankshaft	Counterclockwise (from flywheel end)
Connection	3# flywheel housing		Dedicated flywheel
Net weight	330			kg
Calibrated speed oil pressure	0.3-0.5			MPa
Oil pressure at idling	≥	0.1		MPa
Cooling water outlet temperature	≤	90		℃
Oil temperature	≤	105		℃
Exhaust temperature	≤	600		℃
Fuel consumption rate	≤	231		g/kw.h
Fuel consumption rate	≤	1.63		g/kw.h
Oil grade	Better than CD15W/40
Cool the way	Closed forced water circulation cooling system
Activation Method:	24		V	Electric start
Fuel Type:	diesel fuel
