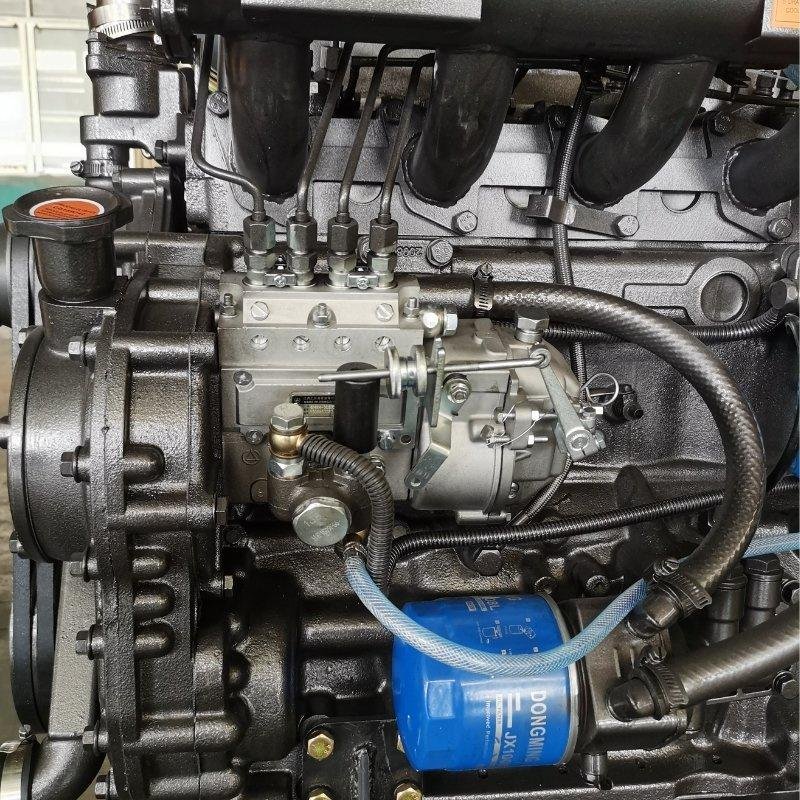

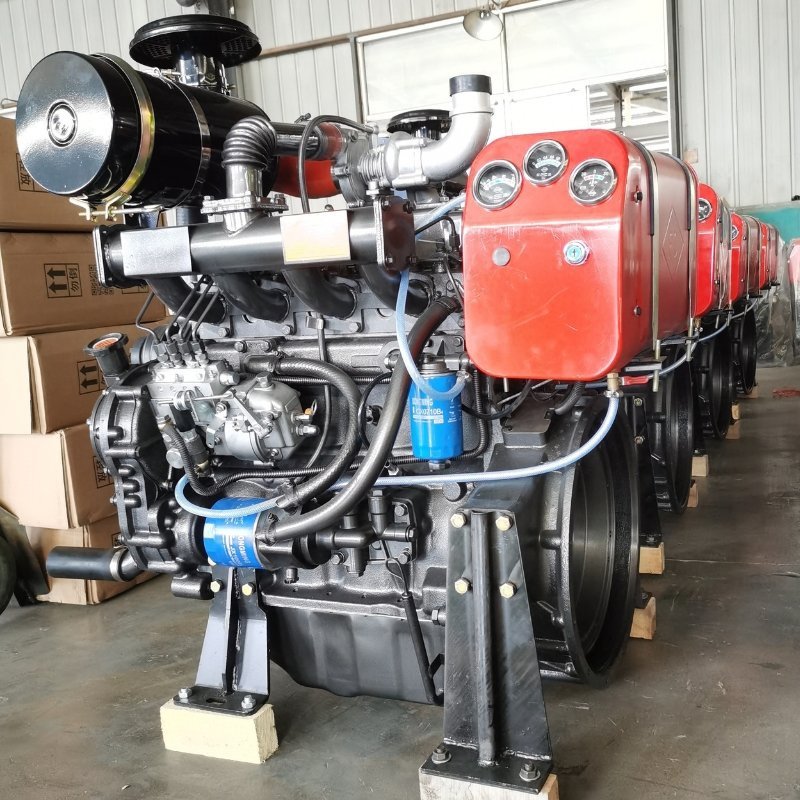

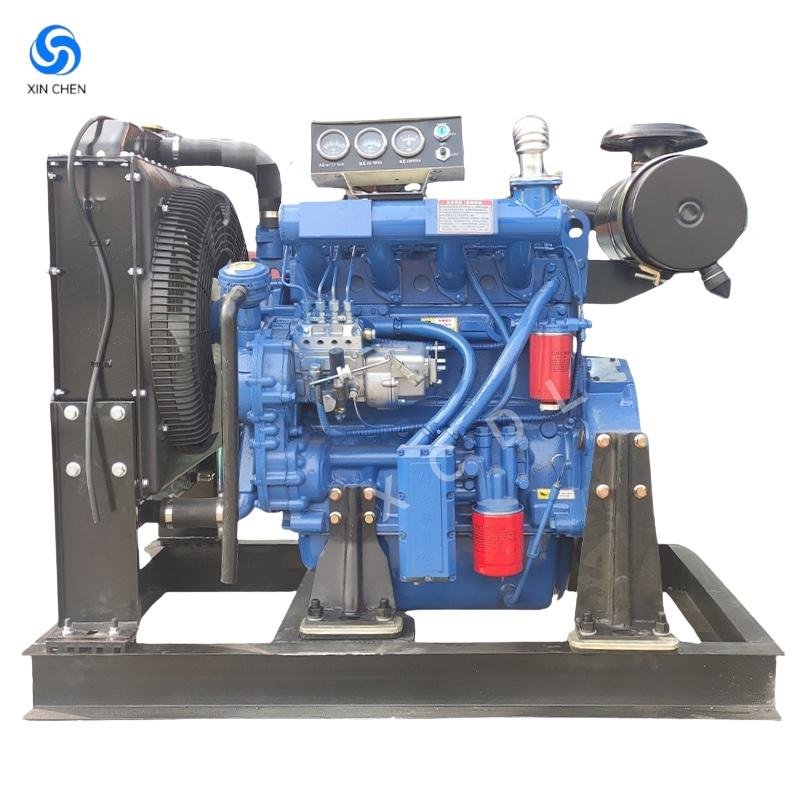

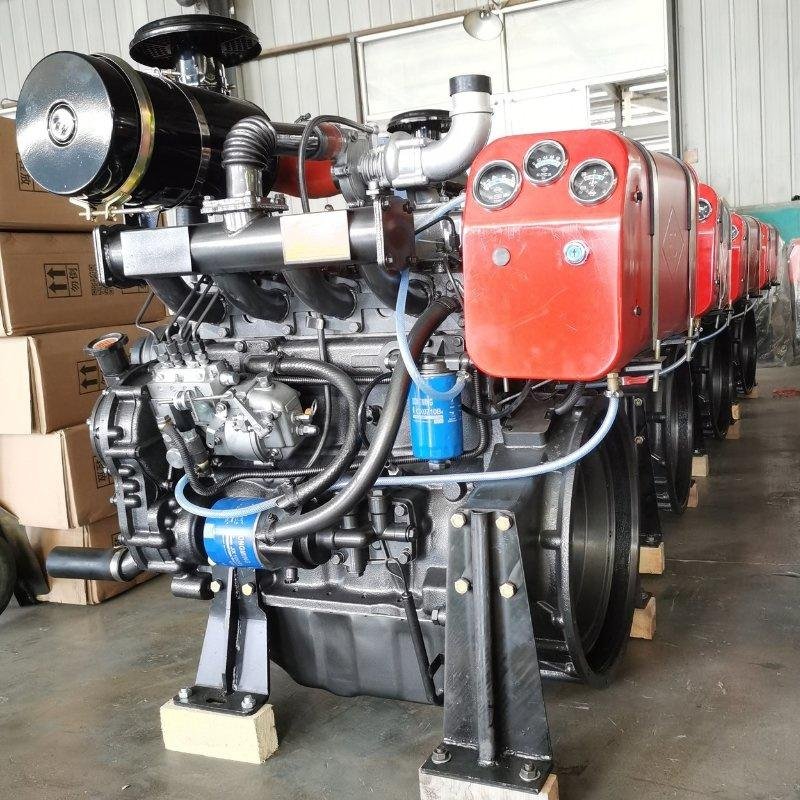

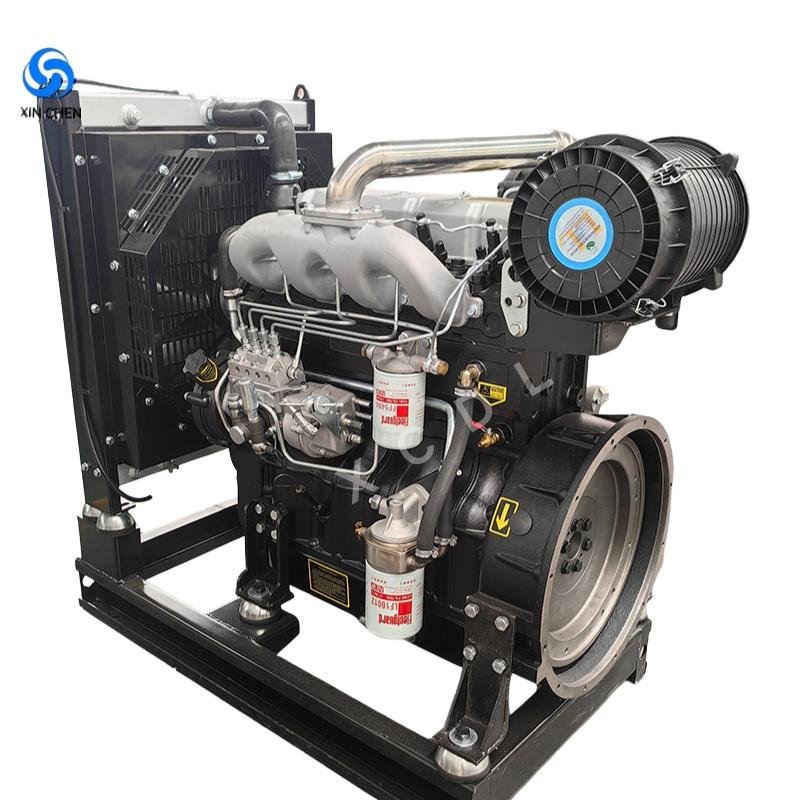

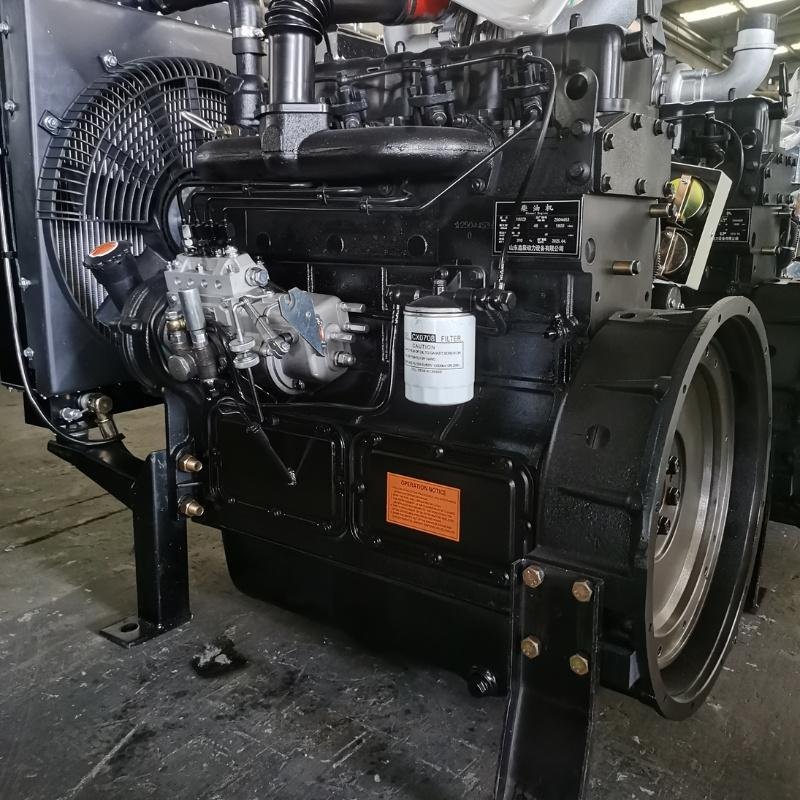

Four stroke high-quality UK Ricardo R4105 4-cylinder diesel engine for generator sets/mining machinery/crushers
| Parameter Table of 4105 Series Diesel Engines | |||
| Item Model | ZH4105D | ZH4105ZD | 4105ZLDS |
| air intake mode | Inhale naturally | supercharge | Pressurized intercooled |
| Way of burning | Direct injection | Direct injection | Direct injection |
| Cyl | 4 | 4 | 4 |
| Bore diameter×stroke（mm） | 105×120 | 105×120 | 105×120 |
| Displacement（L） | 4.15 | 4.15 | 4.15 |
| Calibration speed（r/min） | 1500 | 1500 | 1500 |
| Main power（kW） | 38 | 56 | 66 |
| Calibration speed（r/min） | 1800 | 1800 | 1800 |
| Main power（kW） | 42 | 62 | 73 |
| Calibration speed（r/min） | 2000 | 2000 | 2000 |
| Main power（kW） | 46 | 65 | 68 |
| Calibration speed（r/min） | 2200 | 2200 | 2200 |
| Main power（kW） | 50 | 68 | 72 |
| Lowest no-load speed（r/min) | ≤650 | ≤650 | ≤650 |
| Fuel consumption rate（g/kW.h) | ≤220 | ≤210 | ≤210 |
| Crankshaft rotating direction(ace to output end) |
Anticlockwise | Anticlockwise | Anticlockwise |
| Cooling method | Forced water cooling | Forced water cooling | Forced water cooling |
| Lubricating method | Pressure splash composite | Pressure splash composite | Pressure splash composite |
| Starting method | Electric start | Electric start | Electric start |
| Net mass (kg) | 360 | 400 | 420 |
| cylinder working sequence | 1-3-4-2 | 1-3-4-2 | 1-3-4-2 |
| Exhaust temperature after turbing（℃） | ≤600 | ≤600 | ≤600 |
| Oil sump capacity(L) | 13 | 13 | 13 |
| Max oil temperature（℃） | 105 | 105 | 105 |
| Oil consumption rate（g/kW.h) | ≤2.04 | ≤2.04 | ≤2.04 |
| Number of teeth | 130 | 130 | 130 |
| Water tank capacity（L） | 7 | 8 | 8 |
| Cooling water capacity in diesel engine(L) | 8 | 8 | 8 |
| Overall dimension（mm)(L×W×H) | 1016*585*880 | 1032*615*895 | 1032*615*895 |
