R4105ZLD intercooled turbocharged Ricardo big horsepower four cylinder water-cooled diesel engine
R4105ZLD Technical parameters Model R4105ZLD Rated power: 66/73/80/88 KW Rated speed: 1500/1800/2000/2200 r/min Ma...
Category Diesel Engine
Keywords diesel engine, ricardo engine, big horsepower engine, four cylinder diesel engine, R4105 diesel engine
Email Now
Call Us / Whatsapp

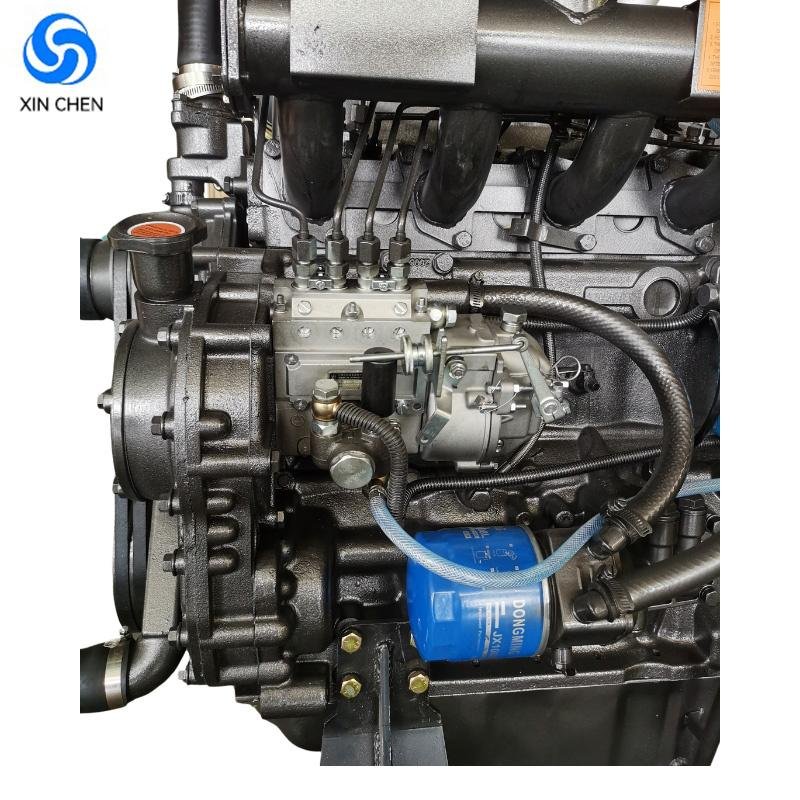

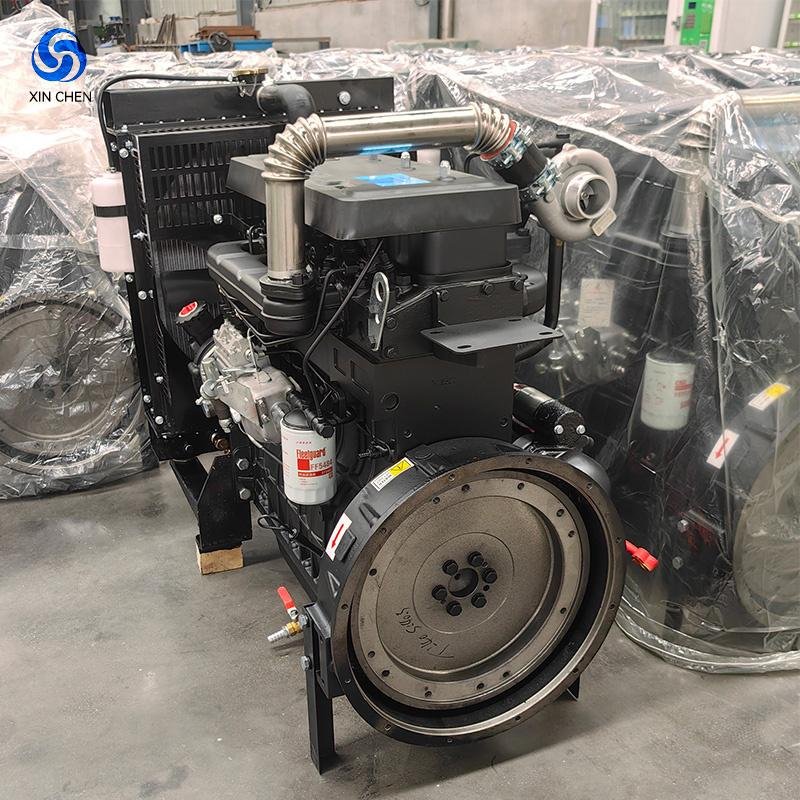

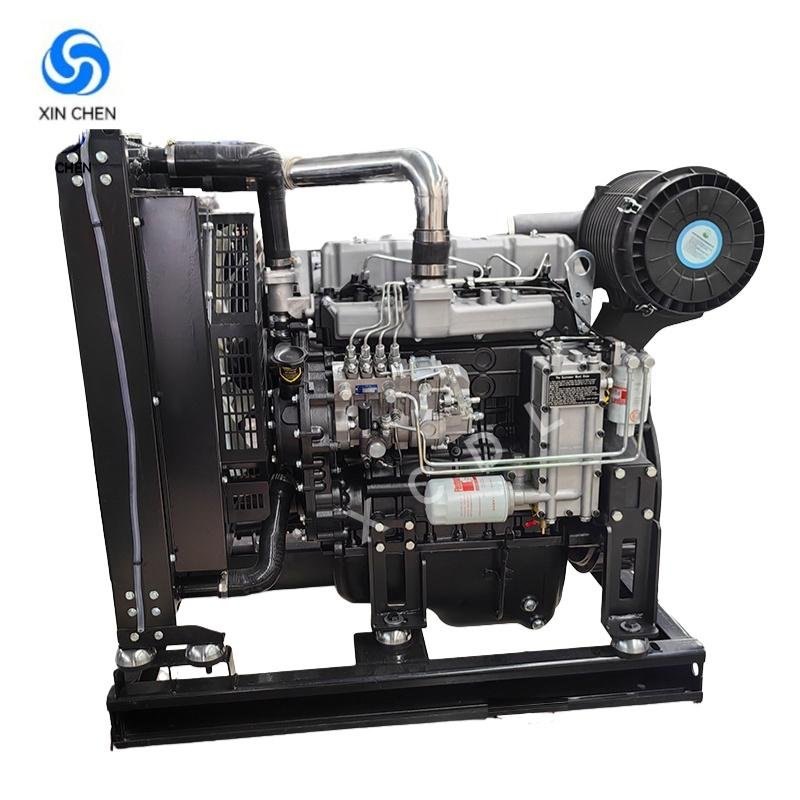

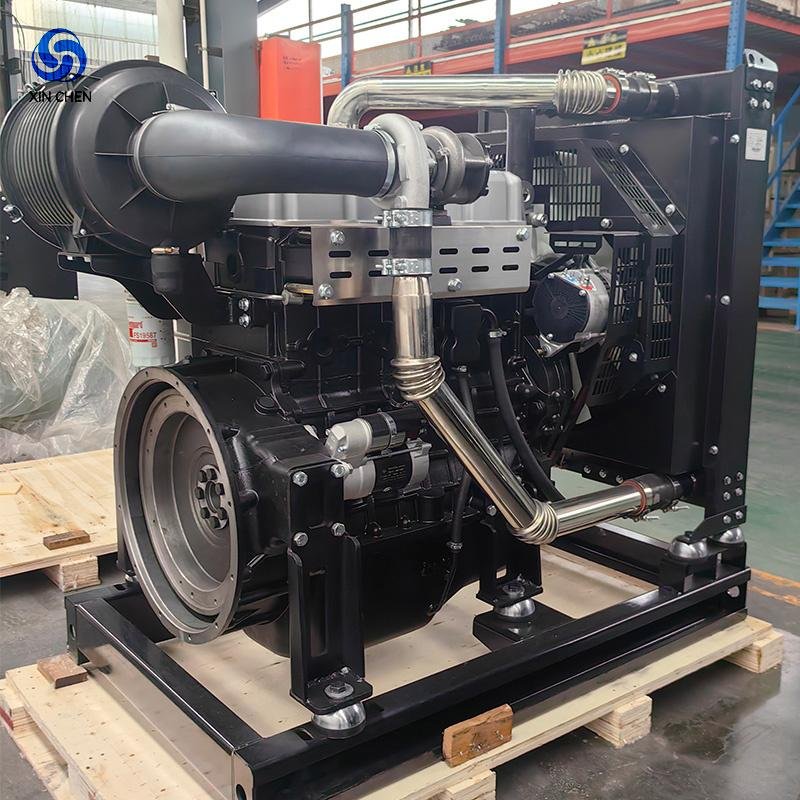

R4105ZLD intercooled turbocharged Ricardo big horsepower four cylinder water-cooled diesel engine
| R4105ZLD Technical parameters | ||||||
| Model | R4105ZLD | |||||
| Rated power: | 66/73/80/88 | KW | Rated speed: | 1500/1800/2000/2200 | r/min | |
| Maximum no-load stable speed: | 2275 | r/min | Minimum no-load stable peed: | 650 | r/min | |
| Number of cylinders: | 4 | Type: |
Inline, water-cooled, four-stroke | |||
| Bore × Stroke: | 105×120 | （mm） | Total piston displacement: | 4.15 | L | |
| Compression ratio: | 18 | :1 | Ignition sequence: |
1-3-4-2 | ||
| Oil temperature: ≤ | 95 | ℃ | Cooling water outlet temperature: ≤ | 90 | ℃ | |
| Rated speed oil pressure | 0.20-0.40 | MPa | Oil pressure at idling: ≥ | 0.05 | MPa | |
| Exhaust temperature: ≤ | 470 | ℃ | Oil Grade: | CD15W/40 | ||
| Fuel consumption rate: ≤ | 210 | g/kw.h | Fuel consumption rate: ≤ | 2.04 | g/kw.h | |
| Air intake mode: | Intercooled Turbocharge | Cooling Method: | Closed water cooling | |||
| regulation mode | Mechanical speed regulation | Activation Method: |
24V electric start | |||
| Lubricating method | Pressure splash composite | Combustion method: | Direct injection | |||
| Lubrication Angle: | 15 | ±2° | Fuel Type: |
diesel fuel | ||
| Crankshaft rotation direction: | Counterclockwise (from flywheel end) | |||||
