2110/2105 18 kW small two-cylinder four-stroke diesel engine
ZH2110D Technical Parameters Model ZH2110D Diesel engine power 18KW Speed 1500r/min Type In line, water-cooled, four st...
Category Diesel Generator
Keywords small engine, 4 stroke engine, 2 cylinder diesel engine, engine, diesel engine
Email Now
Call Us / Whatsapp

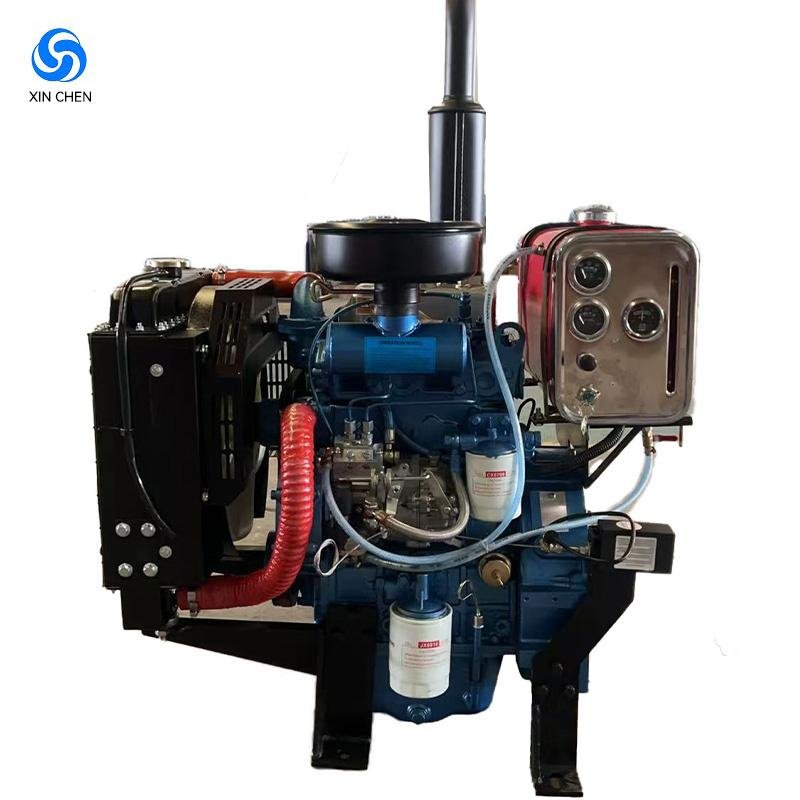

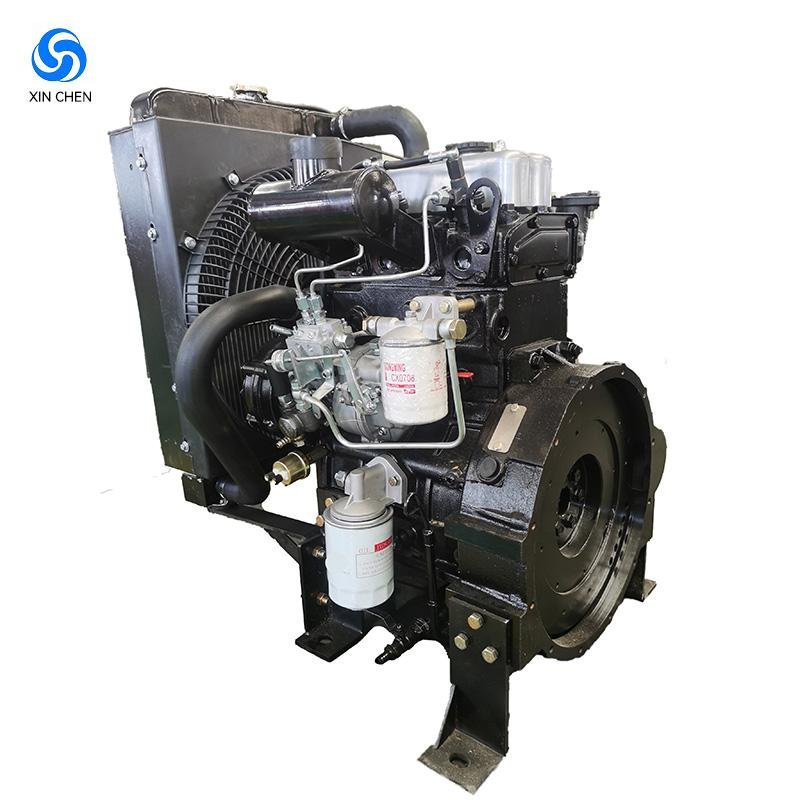

2110/2105 18 kW small two-cylinder four-stroke diesel engine
|
ZH2110D Technical Parameters
|
|||
| Model | ZH2110D | ||
| Diesel engine power | 18KW | Speed | 1500r/min |
| Type | In line, water-cooled, four stroke | Minimum speed of empty vehicle | 850±50r/min |
| Intake Type | Natural inhalation | Cyinder Quantity | 2 |
| Burning pattern | Direct injection | Cylinder working sequence | 1-2 |
| Bore*stroke (mm) | 110*117 | lubrication method | Pressure and Splash Composite |
| Cylinder liner type | Wet type | Cooling method | Closed forced water cooling |
| Displacement | 2.22L | Direction of crankshaft rotation (viewed from the flywheel end) |
Counterclockwise |
| Compression Ratio | 17:1 | speed regulation method | Mechanical speed regulation |
| Noise | ≤107dB(A) | Startup method | Electric starter 12V |
| Oil consumption rate | ≤2.72g/KW.h | Fuel consumption rate (g/KW. h) | ≤252g/KW.h |
| Net mass (flywheel end stop) |
230kg | Dimensions(flywheel housing end stop) length * width * height mm |
600*510*720 |
| Diesel Fuel | 0# diesel oil; the smoke emission at rated working conditions meets environmental protection requirements. | ||
 |
|||
