Chendura is a Company integrating the research and development, sales and after-sales of diesel engines, diesel generator sets and water pump sets. It specializes in providing various diesel engine complete machines and diesel engine accessories.

Read More

Gallery

  • anna@chendura.com

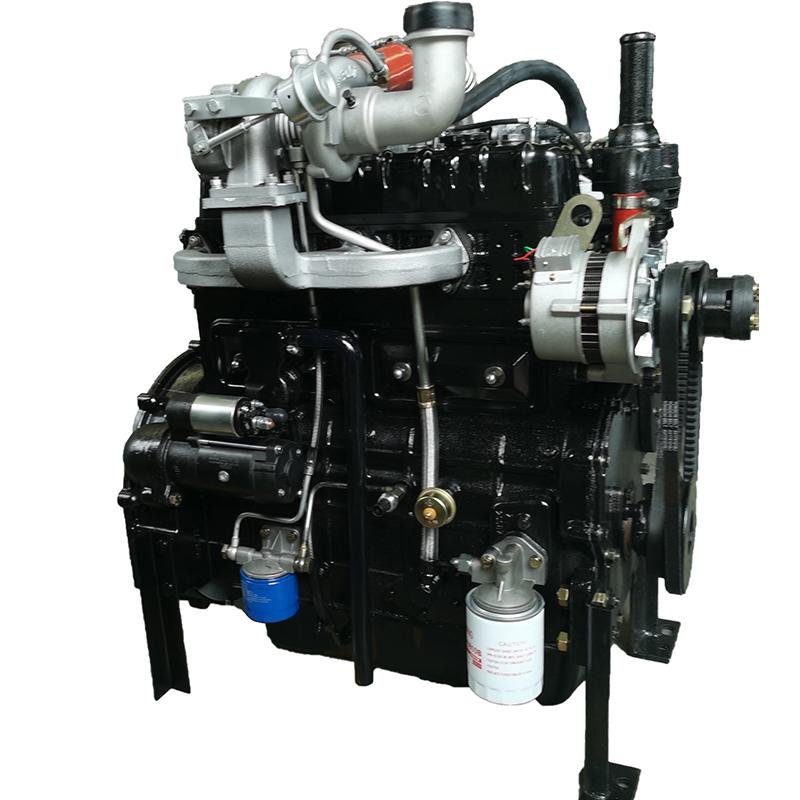

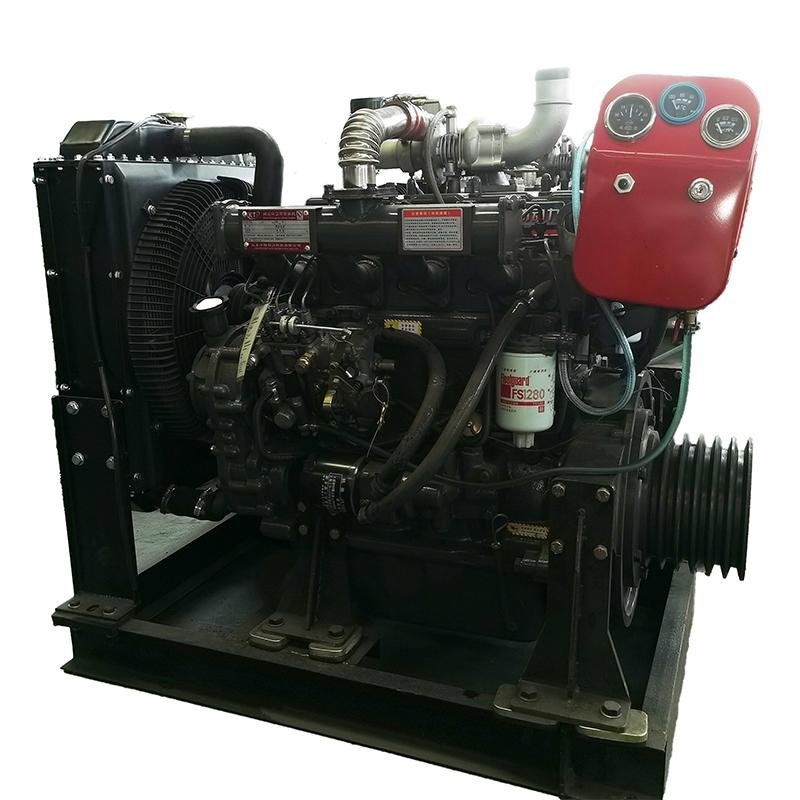

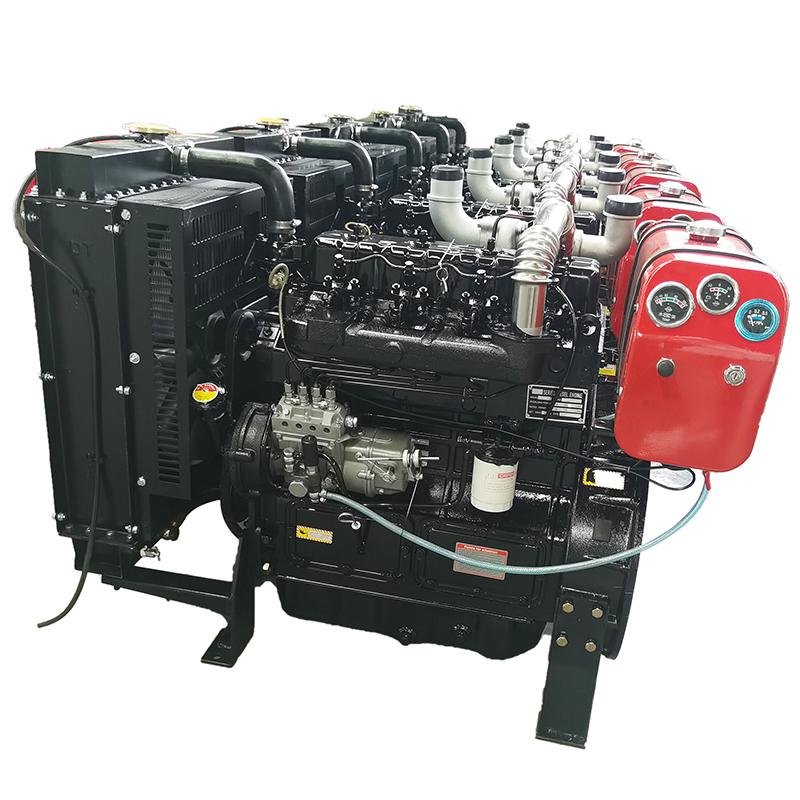

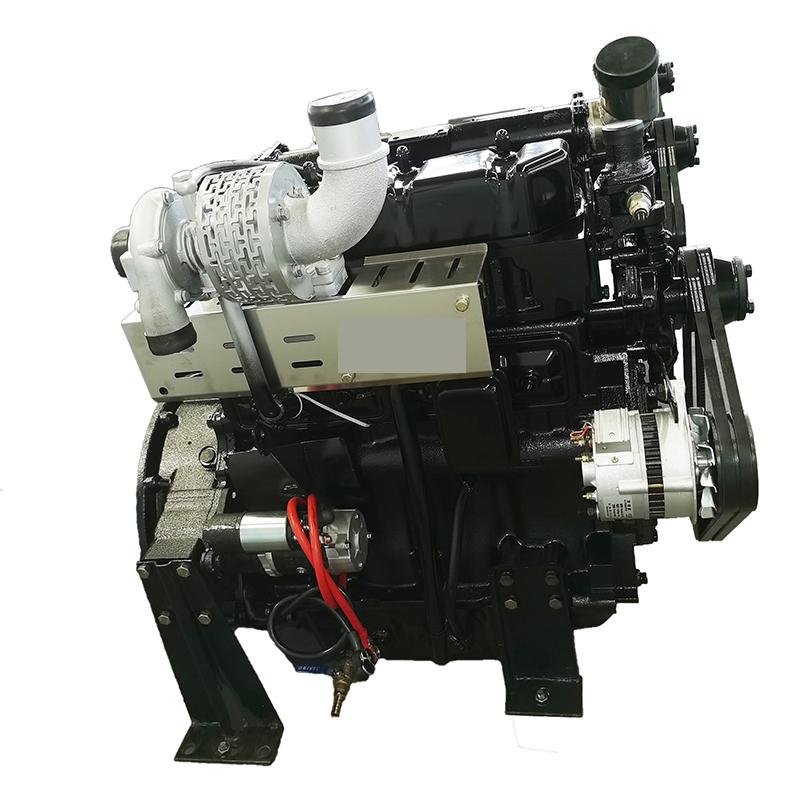

R4105ZD turbocharged high-performance Ricardo 56/62/65/68KW four cylinder small water-cooled diesel engine

R4105ZD turbocharged high-performance Ricardo 56/62/65/68KW four cylinder small water-cooled diesel engine
R4105ZD turbocharged high-performance Ricardo 56/62/65/68KW four cylinder small water-cooled diesel engine
R4105ZD turbocharged high-performance Ricardo 56/62/65/68KW four cylinder small water-cooled diesel engine
R4105ZD turbocharged high-performance Ricardo 56/62/65/68KW four cylinder small water-cooled diesel engine
R4105ZD turbocharged high-performance Ricardo 56/62/65/68KW four cylinder small water-cooled diesel engine
R4105ZD turbocharged high-performance Ricardo 56/62/65/68KW four cylinder small water-cooled diesel engine
R4105ZD turbocharged high-performance Ricardo 56/62/65/68KW four cylinder small water-cooled diesel engine

R4105ZD turbocharged high-performance Ricardo 56/62/65/68KW four cylinder small water-cooled diesel engine

R4105ZD Technical parameters   Model R4105ZD  Rated power: 56/62/65/68 KW  Rated speed: 1500/1800/2000/...

Category Diesel Engine
Keywords engine, turbocharged diesel engine, ricardo diesel engine, diesel engine, small engine
Email Now

anna@chendura.com

Call Us / Whatsapp

+8613884816171

R4105ZD turbocharged high-performance Ricardo 56/62/65/68KW four cylinder small water-cooled diesel engine

R4105ZD Technical parameters
  Model R4105ZD
 Rated power: 56/62/65/68 KW  Rated speed: 1500/1800/2000/2200 r/min
Maximum no-load stable speed: 2275 r/min Minimum no-load stable peed: 650 r/min
 Number of cylinders:  4  Type:
 		 Inline, water-cooled, four-stroke
 Bore × Stroke: 105×120 （mm） Total piston displacement: 4.15 L
 Compression ratio:     18 :1 Ignition sequence:
 		 1-3-4-2
 Oil temperature: ≤  95 ℃ Cooling water outlet temperature: ≤ 90 ℃
 Rated speed oil pressure  0.20-0.40 MPa   Oil pressure at idling: ≥ 0.05 MPa
 Exhaust temperature: ≤ 470 ℃  Oil Grade: CD15W/40
Fuel consumption rate: ≤ 210 g/kw.h Fuel consumption rate: ≤ 2.04 g/kw.h
 Air intake mode:  Turbocharge Cooling Method:  Closed water cooling
 regulation mode  Mechanical speed regulation Activation Method:
  		 24V electric start
 Lubricating method Pressure splash composite Combustion method: Direct injection
Lubrication Angle: 15 ±2° Fuel Type:
  		 diesel fuel
Crankshaft rotation direction:  Counterclockwise (from flywheel end)
