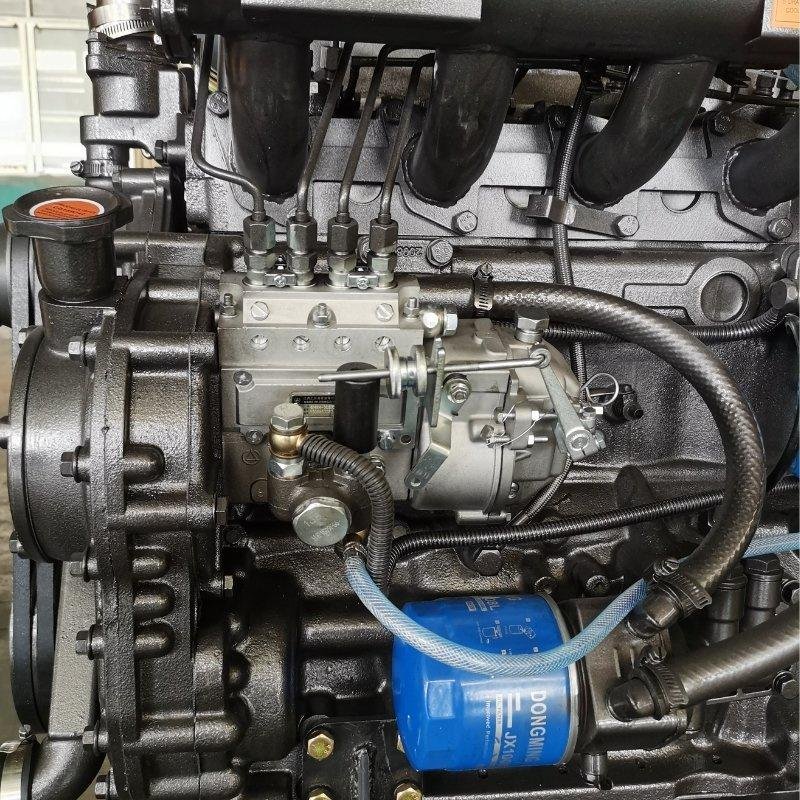

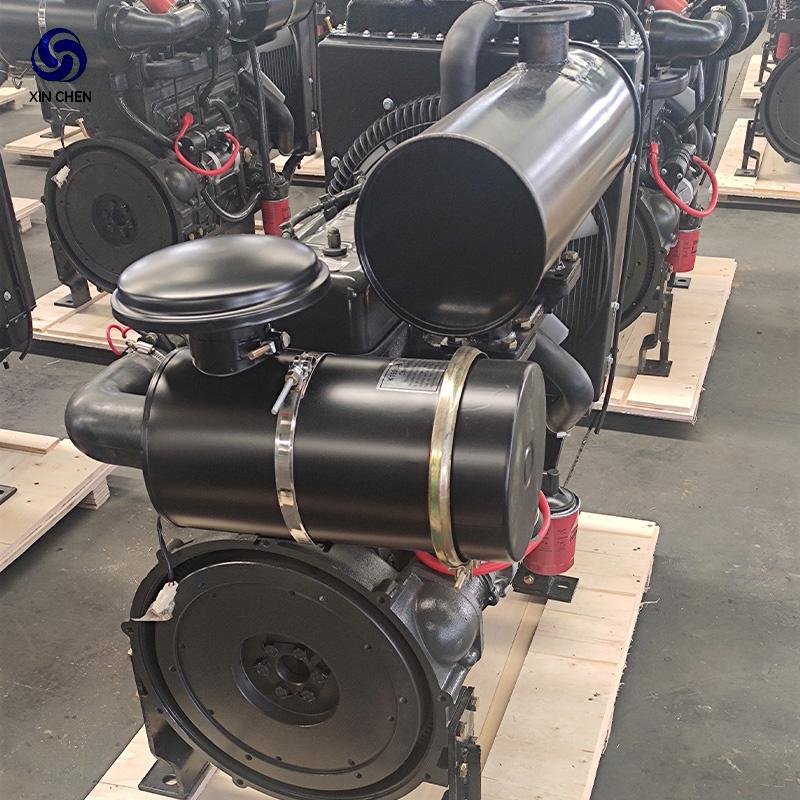

UK Ricardo series R4102 44KW 2000RPM small 4-cylinder 4-stroke water-cooled diesel engine
| Model | ZH4102 | |||||
| Rated power: | 44 | KW | Rated speed: | 2000 | r/min | |
| Maximum no-load stable speed: | 2160 | r/min | Minimum no-load stable speed: | 650 | r/min | |
| Number of cylinders: | 4 | Type: |
Inline, water-cooled, four-stroke | |||
| Bore × Stroke: | 102×115 | （mm） | Total piston displacement: | 3.61 | L | |
| Compression ratio: | 19 | :1 | Ignition sequence: |
1-3-4-2 | ||
| Oil temperature: ≤ | 95 | ℃ | Cooling water outlet temperature: ≤ | 90 | ℃ | |
| Rated speed oil pressure | 0.20-0.40 | MPa | Oil pressure at idling: ≥ | 0.05 | MPa | |
| Exhaust temperature: ≤ | 470 | ℃ | Oil Grade: | CD15W/40 | ||
| Fuel consumption rate: ≤ | 220.4 | g/kw.h | Fuel consumption rate: ≤ | 2.04 | g/kw.h | |
| Air intake mode: | Inhale naturally | Cooling Method: | Closed water cooling | |||
| regulation mode | Mechanical speed regulation | Activation Method: |
24V electric start | |||
| method | Forced splash | Combustion method: | Direct injection | combustion chamber | ||
| Lubrication Angle: | 15 | ±2° | Fuel Type: |
diesel fuel | ||
| Crankshaft rotation direction: | Counterclockwise (from flywheel end) | |||||
