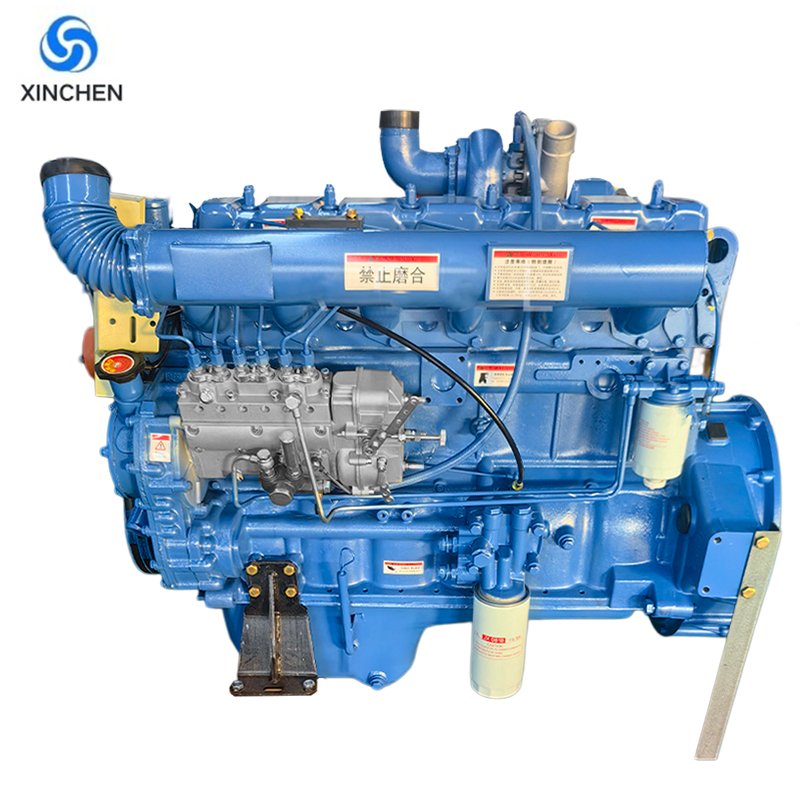

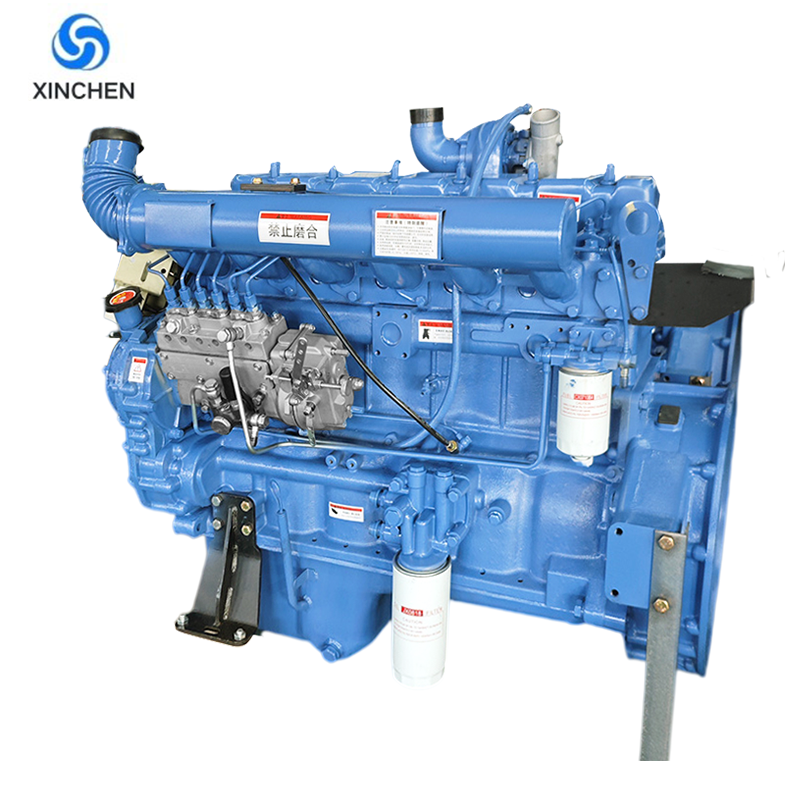

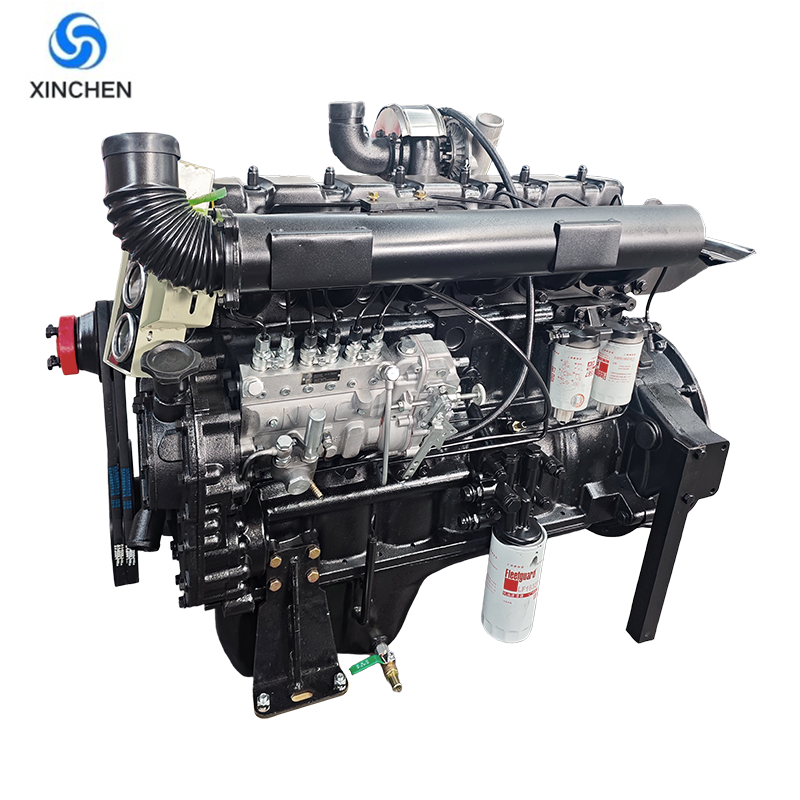

Ricardo 165-horsepower six-cylinder four-stroke water-cooled diesel engine, compliant with Euro 2 emission standard (R6105)
| R6105AZLD技术参数（R6105AZLD Technical Parameters) |
||
| 型号 Model |
R6105AZLD | |
| 标定功率及相应转速(KW/r/min) Rated Power and Corresponding Speed |
121/1500 | |
| 最高空载转（r/min） Maximum No‑load Speed (r/min) |
1578 r/min(50HZ) | |
| 最低空载转速（r/min） Minimum No‑load Speed (r/min) |
650（r/min） | |
| 型式 Type |
直列、水冷、四冲程 Inline, Water-cooled, Four-stroke |
|
| 进气方式 Air intake mode |
增压、中冷 Turbocharged & Intercooled |
|
| 燃烧方式 Combustion mode |
直喷 Direct Injection |
燃烧式 Combustion Type |
| 缸径*行程（mm） Bore*troke (mm) |
 105×130（mm) |
|
| 气缸数 Number of Cylinders |
6 | |
| 排量（L） Displacement（L) |
6.75(L) | |
| 气缸工作顺序 Firing Order |
1-5-3-6-2-4 | |
| 调速方式 Speed control method |
机械全程调速 Mechanical full-range governing |
|
| 冷却方式 Combustion Mode |
闭式强制水循环冷却系统 Closed forced circulation water cooling system |
|
| 连接方式 Connection Type |
飞轮壳（专用飞轮） Flywheel housing (special flywheel) |
|
| 压缩比 Net Weight（kg） |
16:01 | |
| 机油消耗率（克/千瓦*时） oil consumption rate（g/kW·h） |
≤1.63（g/kW·h） | |
| 燃料类型 Fuel Type |
柴油 Diesel |
|
| 启动方式 Startup Mode |
24v电启动 24v electric start |
|
| 机油等级 Oil Grade |
优于CD15W/40 Better than CD 15W‑4 |
|
| 曲轴旋转方向 Rankshaft rotating direction (face to output end) |
逆时针（自飞轮端） Anticlockwise（View from flywheel end） |
|
| 标定转速机油压力 Oil Pressure at Rated Speed |
0.3-0.5（MPa) | |
| 怠速时机油压力 Oil pressure at idle speed |
≥0.1（MPa) | |
| 润滑方式 Lubrication Method |
压力飞溅复合式 Pressure splash composite |
|
| 燃油消耗率（克/千瓦*时） Fuel Consumption rate（g/kW·h） |
≤218（g/kW·h） | |
| 净质量（kg） Net Weight（kg） |
620(kg) | |
 |
||
