R4105 Ricardo series Weifang high-quality four cylinder water-cooled diesel engine
Parameter Table of 4105 Series Diesel Engines Item Model R4105D R4105ZD 4105ZLDS air intake mode Inhale naturally supercharge...
Category Diesel Engine
Keywords Ricardo diesel engine, diesel engine, engine, four cylinder engine, four cylinder diesel engine
Email Now
Call Us / Whatsapp

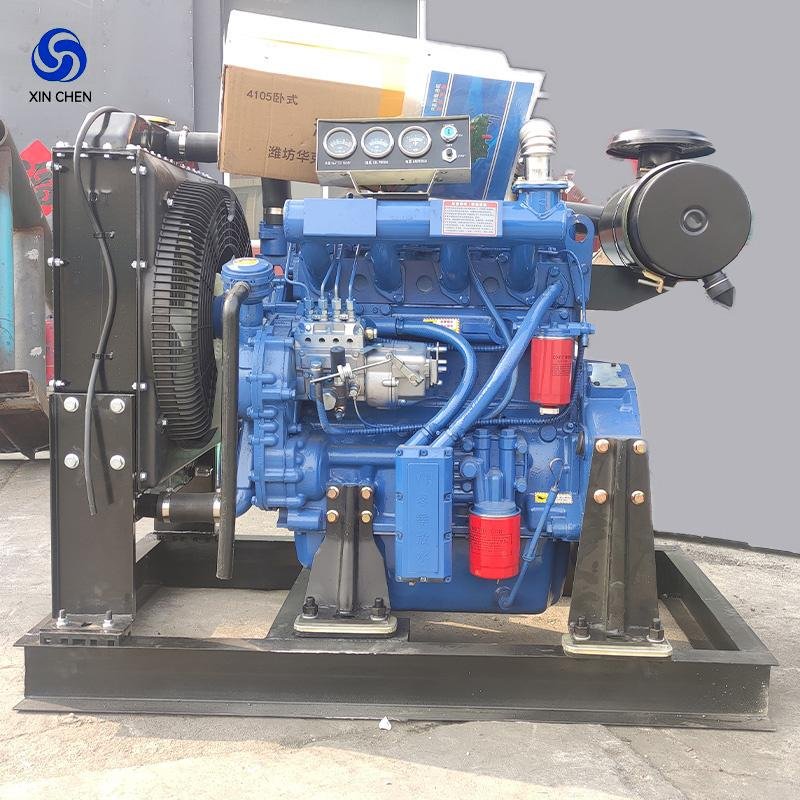

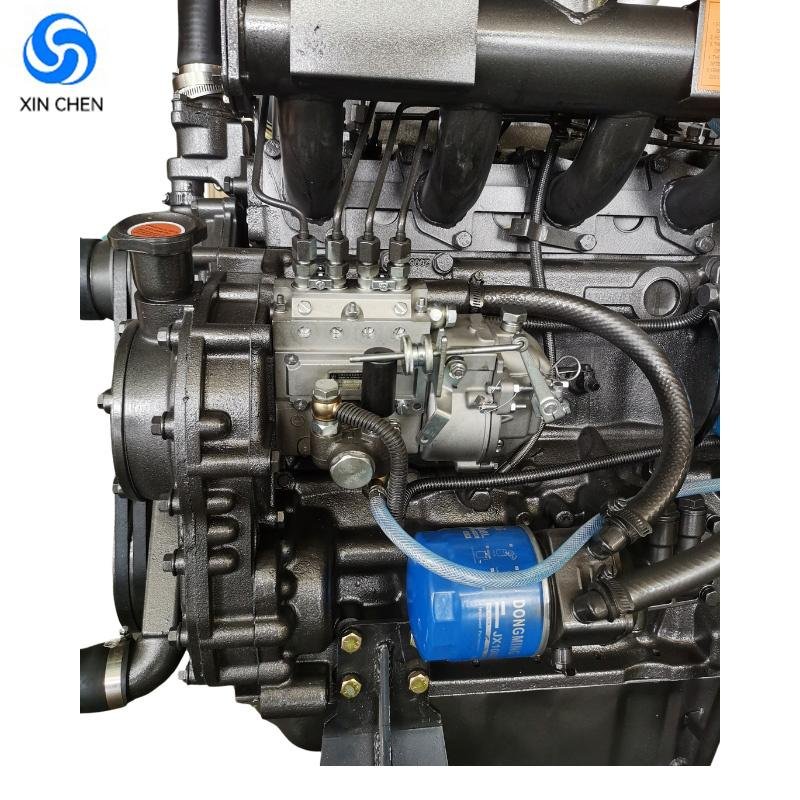

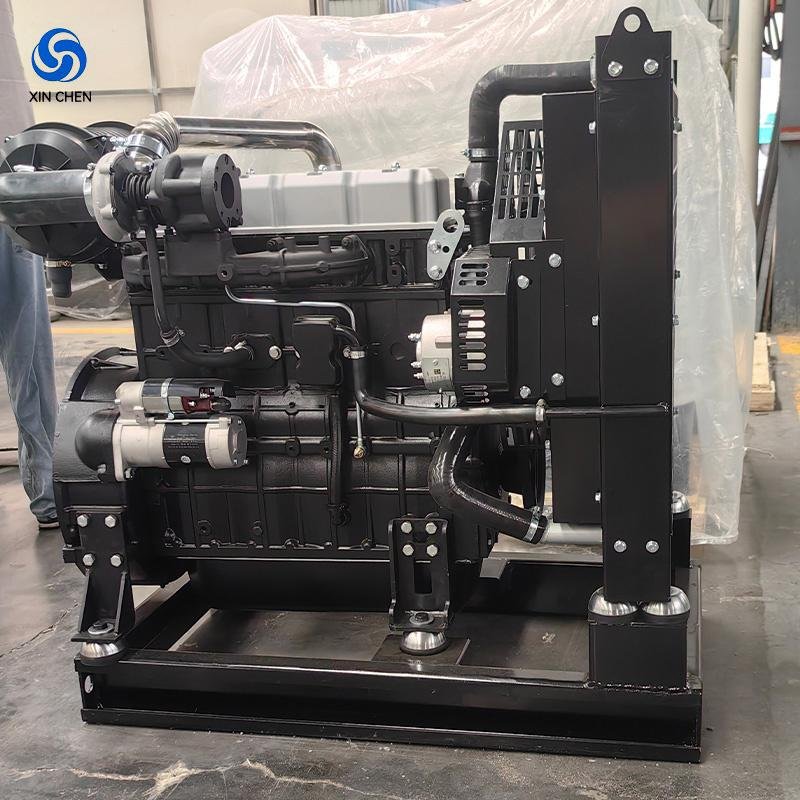

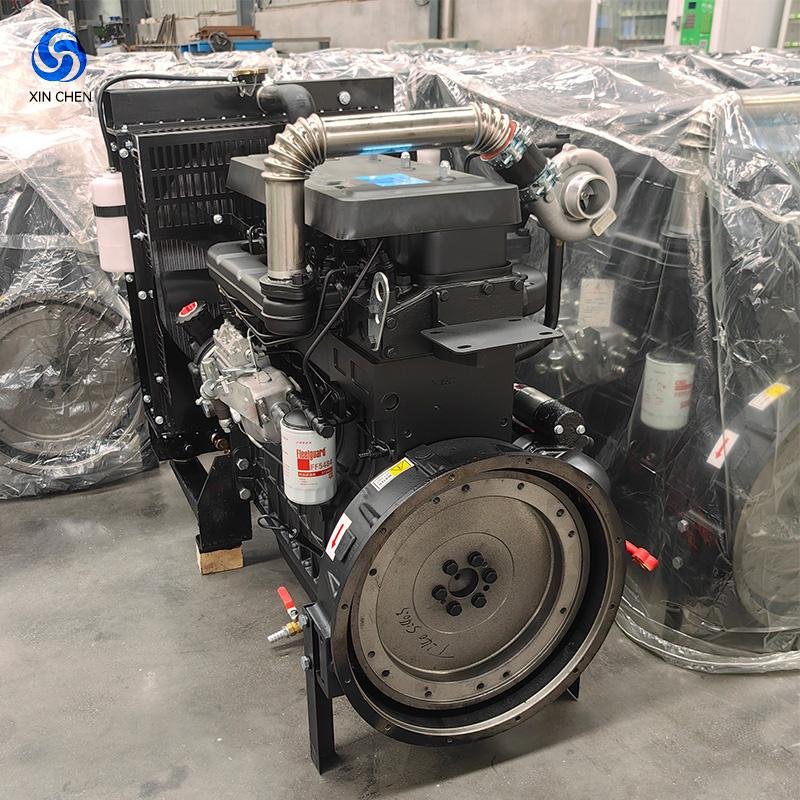

R4105 Ricardo series Weifang high-quality four cylinder water-cooled diesel engine
| Parameter Table of 4105 Series Diesel Engines | |||
| Item Model | R4105D | R4105ZD | 4105ZLDS |
| air intake mode | Inhale naturally | supercharge | Pressurized intercooled |
| Way of burning | Direct injection | Direct injection | Direct injection |
| Cyl | 4 | 4 | 4 |
| Bore diameter×stroke（mm） | 105×120 | 105×120 | 105×120 |
| Displacement（L） | 4.15 | 4.15 | 4.15 |
| Calibration speed（r/min） | 1500 | 1500 | 1500 |
| Main power（kW） | 38 | 56 | 66 |
| Calibration speed（r/min） | 1800 | 1800 | 1800 |
| Main power（kW） | 42 | 62 | 73 |
| Calibration speed（r/min） | 2000 | 2000 | 2000 |
| Main power（kW） | 46 | 65 | 68 |
| Calibration speed（r/min） | 2200 | 2200 | 2200 |
| Main power（kW） | 60 | 68 | 72 |
| Lowest no-load speed（r/min) | ≤650 | ≤650 | ≤650 |
| Fuel consumption rate（g/kW.h) | ≤220 | ≤210 | ≤210 |
| Crankshaft rotating direction(ace to output end) |
Anticlockwise | Anticlockwise | Anticlockwise |
| Cooling method | Forced water cooling | Forced water cooling | Forced water cooling |
| Lubricating method | Pressure splash composite | Pressure splash composite | Pressure splash composite |
| Starting method | Electric start | Electric start | Electric start |
| Net mass (kg) | 360 | 400 | 420 |
| cylinder working sequence | 1-3-4-2 | 1-3-4-2 | 1-3-4-2 |
| Exhaust temperature after turbing（℃） | ≤600 | ≤600 | ≤600 |
| Oil sump capacity(L) | 13 | 13 | 13 |
| Max oil temperature（℃） | 105 | 105 | 105 |
| Oil consumption rate（g/kW.h) | ≤2.04 | ≤2.04 | ≤2.04 |
| Number of teeth | 130 | 130 | 130 |
| Water tank capacity（L） | 7 | 8 | 8 |
| Cooling water capacity in diesel engine(L) | 8 | 8 | 8 |
| Overall dimension（mm)(L×W×H) | 1016*585*880 | 1032*615*895 | 1032*615*895 |
