2-Cylinder 2100/2105/2110d Water-Cooled Diesel Engine for Generator/Agricultural Machinery
Engine Parameter Model ZH2110D Rated power： 18-32 KW Rated speed： 1500-3000 r/min Number of cylinders： 2 Way of bur...
Category Diesel Engine
Keywords engine, 2 cylinder diesel engine, diesel engine, engine for generator set, water cooled engine
Email Now
Call Us / Whatsapp

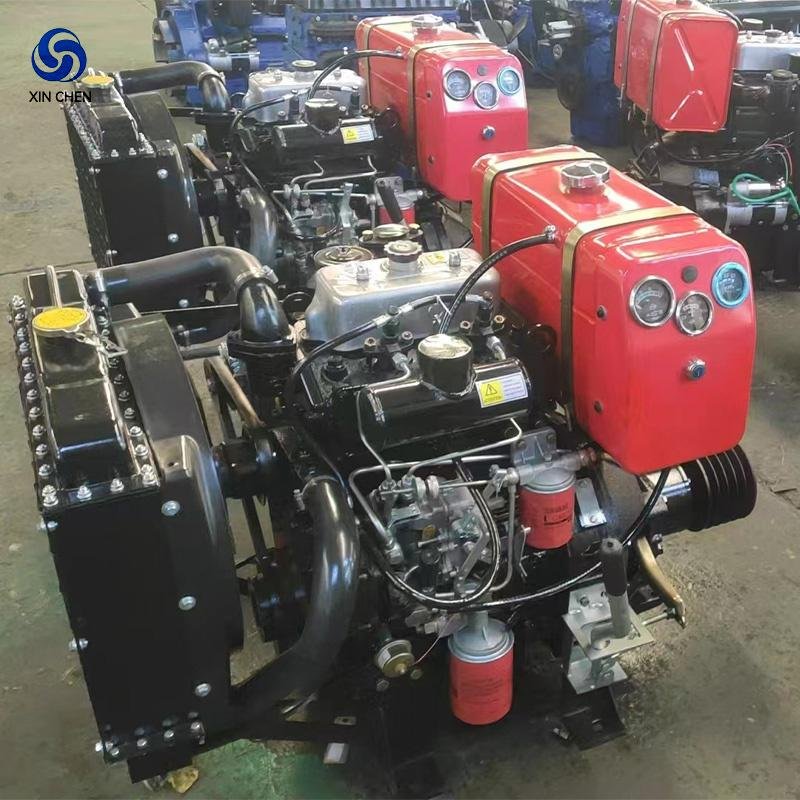

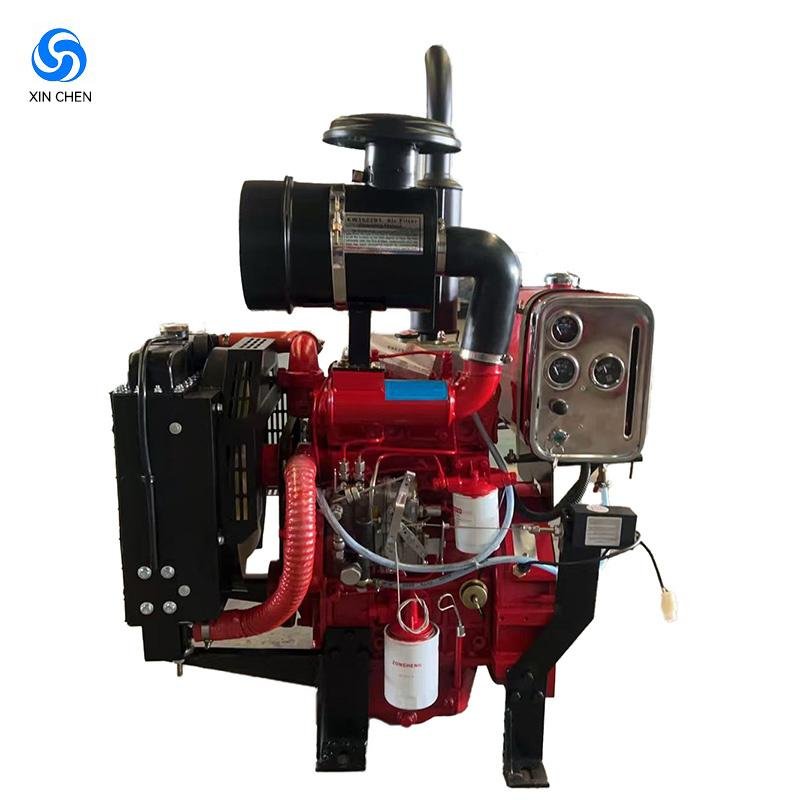

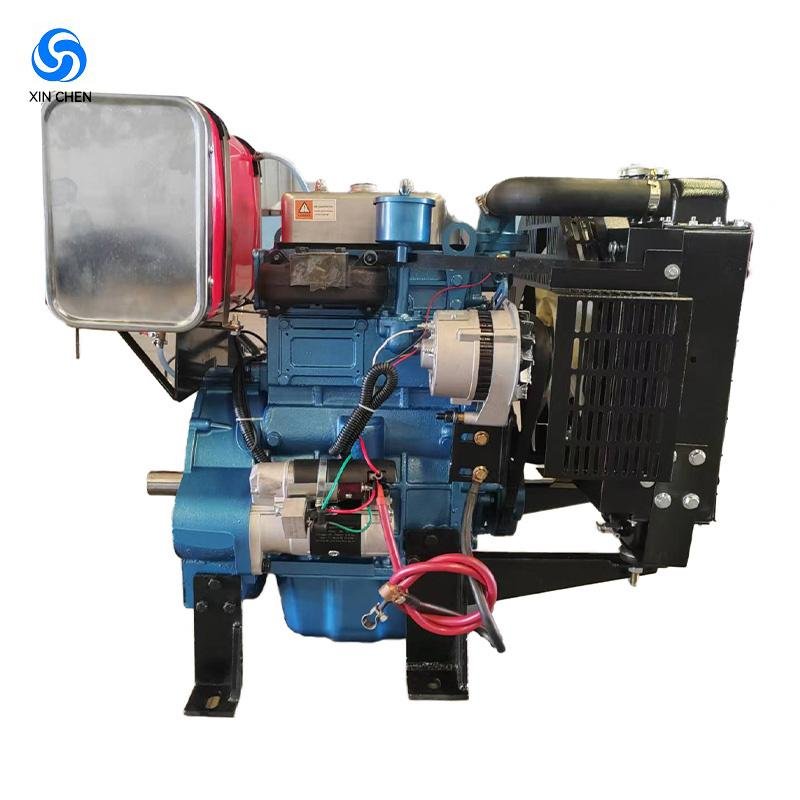

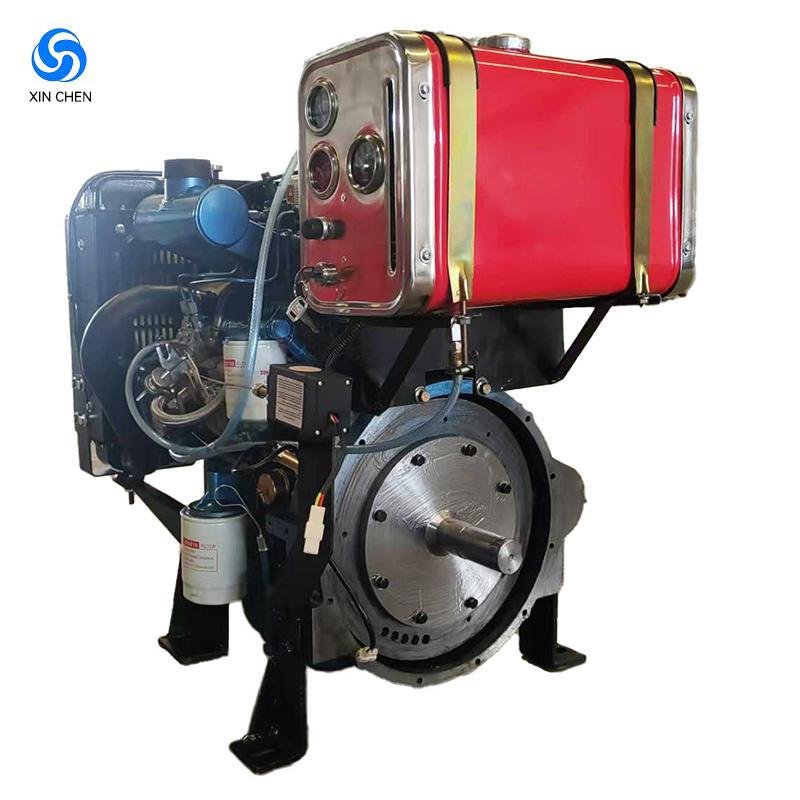

2-Cylinder 2100/2105/2110d Water-Cooled Diesel Engine for Generator/Agricultural Machinery
|
Engine Parameter |
|||||
|
Model |
ZH2110D |
||||
|
Rated power： |
18-32 |
KW |
Rated speed： |
1500-3000 |
r/min |
|
Number of cylinders： |
2 |
Way of burning： |
Direct injection |
||
|
diameter×stroke： |
110×117 |
(mm) |
Displacement： |
1.81 |
L |
|
Compression ratio |
18：1 |
cylinder working sequence： |
1-3-4-2 |
||
|
oil temperature ≤ |
95 |
℃ |
Cooling water outlet temperature： ≤ |
90℃ |
|
|
Oil Pressure： |
0.2-0.4 |
MPa |
Idle oil pressure： ≥ |
0.05MPa |
|
|
Exhaust temperature： |
470 |
℃ |
Fuel Type： |
Diesel |
|
|
Fuel consumption rate： ≤ |
240 |
g/kw.h |
Oil consumption rate： ≤ |
2.04 |
g/kw.h |
|
air intake mode |
Inhale naturally
|
Cooling method： |
water cooling |
||
|
Speed Control |
Mechanical speed regulation
|
Starting method： |
12V Electric start |
||
|
Lubricating method |
Pressure splash composite |
Way of burning： |
Direct injection |
||
|
Crankshaft rotating direction(ace to output end)： |
Anticlockwise |
||||
