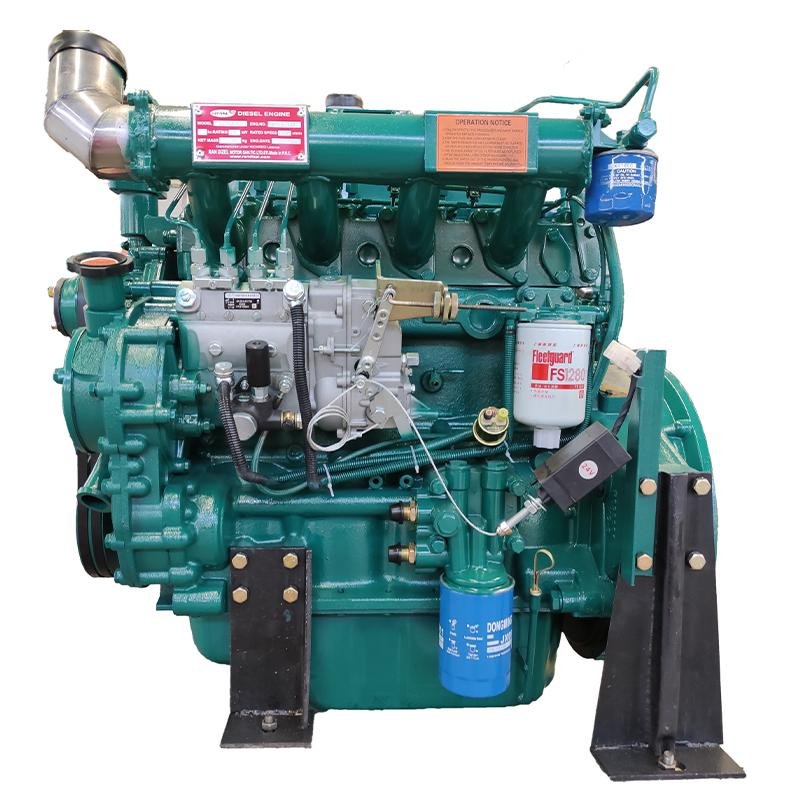

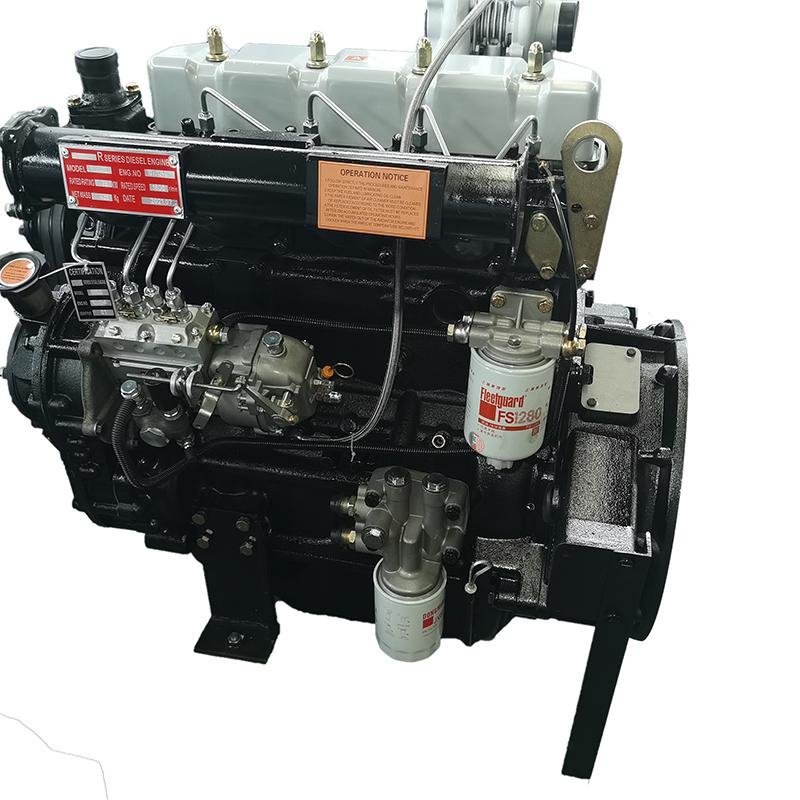

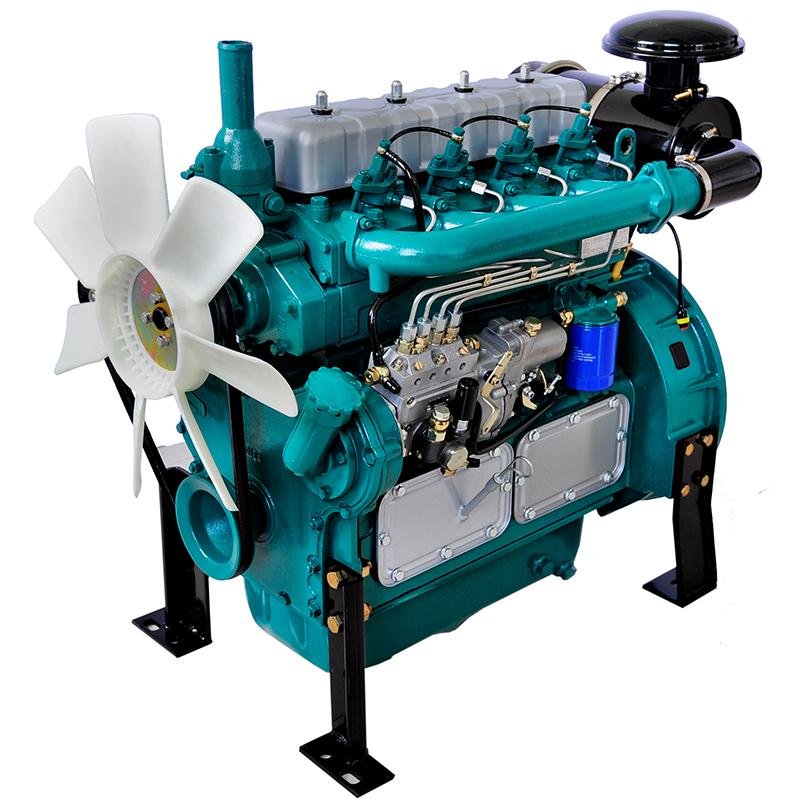

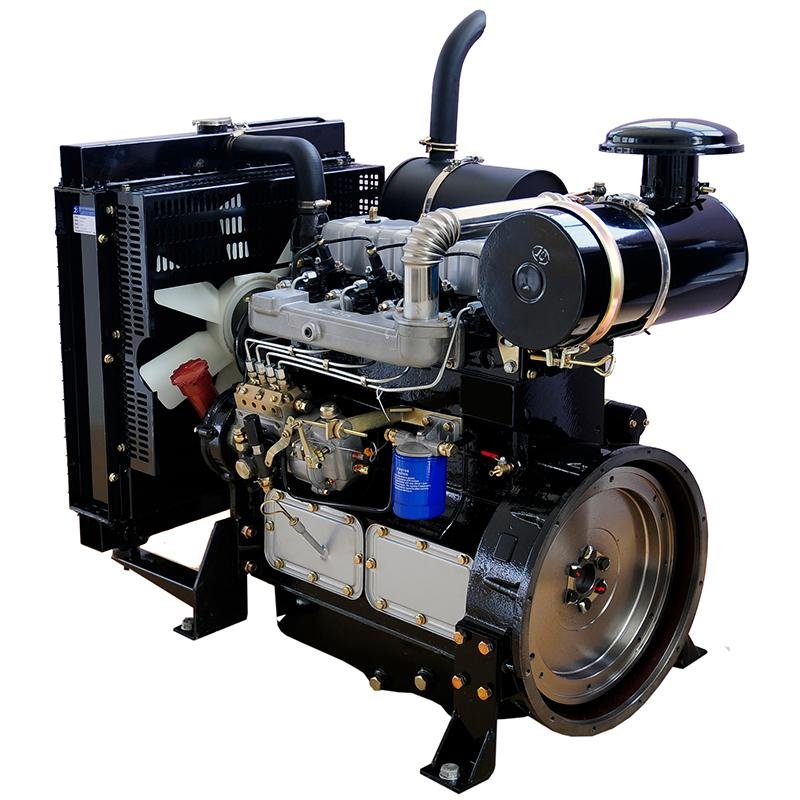

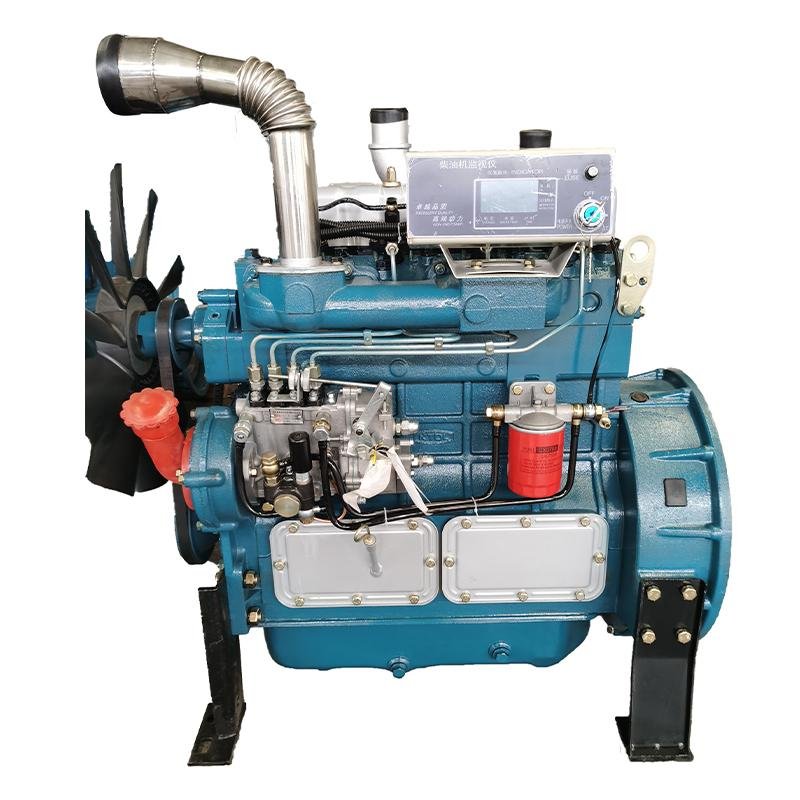

Ricardo Technology 4 Cylinder 4 Stroke Diesel Engine 4105 Series for Generator

List of diesel engine performance parameters
Diesel engine model		ZH4105ZD
Output power		KW		Ps
60HZ（1800r/min）	Excess power	68.2		93
	Rated power	62		84
50HZ（1500r/min）	Excess power	61.6		84
	Rated power	56		76
Maximum no-load stable speed	1890r/min（60HZ)		1575r/min(50HZ)
Minimum no-load stable speed	650r/min
Type	Inline, water-cooled, four-stroke
Burning method	Direct injection		Burning chamber
Number of cylinders	4
Bore × stroke	105×125			mm
Total piston displacement	4.33			L
Shrinkage ratio	16		:1
Ignition sequence	1-3-4-2
Air intake method	Turbocharged
The direction of rotation of the crankshaft	Counterclockwise (from flywheel end)
Connection	3# flywheel housing		Dedicated flywheel
Net weight	435			kg
Calibrated speed oil pressure	0.3-0.5			MPa
Oil pressure at idling	≥	0.1		MPa
Cooling water outlet temperature	≤	90		℃
Oil temperature	≤	105		℃
Exhaust temperature	≤	600		℃
Fuel consumption rate	≤	231		g/kw.h
Fuel consumption rate	≤	1.63		g/kw.h
Oil grade	Better than CD15W/40
Cool the way	Closed forced water circulation cooling system
Activation Method:	24		V	Electric start
Fuel Type:	diesel fuel
