About
Chendura is a Company integrating the research and development, sales and after-sales of diesel engines, diesel generator sets and water pump sets. It specializes in providing various diesel engine complete machines and diesel engine accessories.
Read MoreGallery
R6105zc Turbocharged Marine Diesel Engine 6 Cylinder Water Cooled Boat Power Engine
Engine Parameter Model R6105ZD/AZLD/IZLD Rated power 84-121-132 KW Rated speed 1500 r/min Number of cylinders 6 Way of...
Category Diesel Generator
Keywords engine assembly, engine, small diesel engine, 4 stroke engine, 4 cylinder diesel engine
Email Now
Call Us / Whatsapp

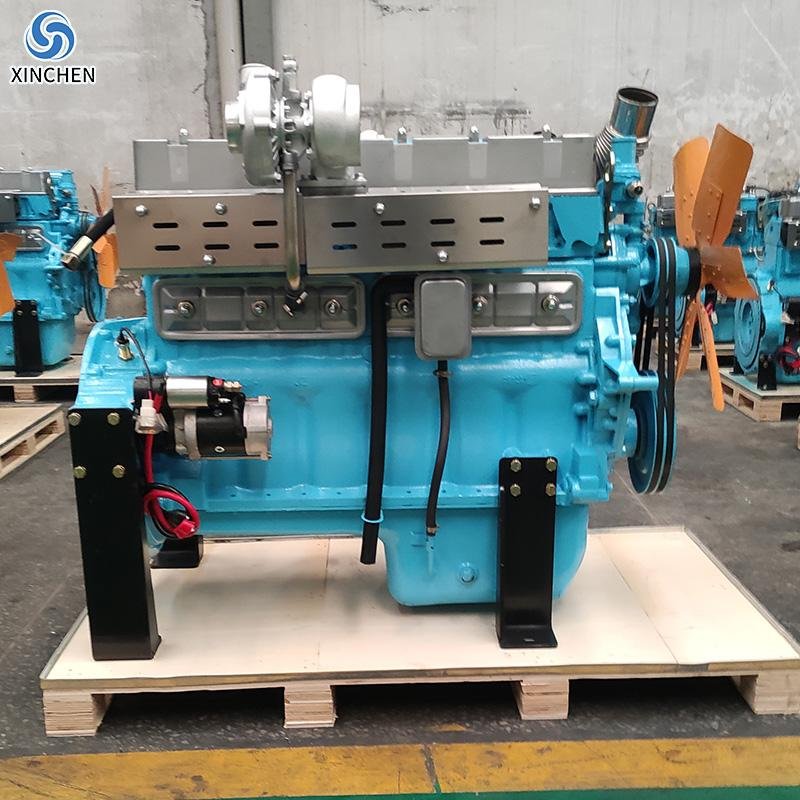

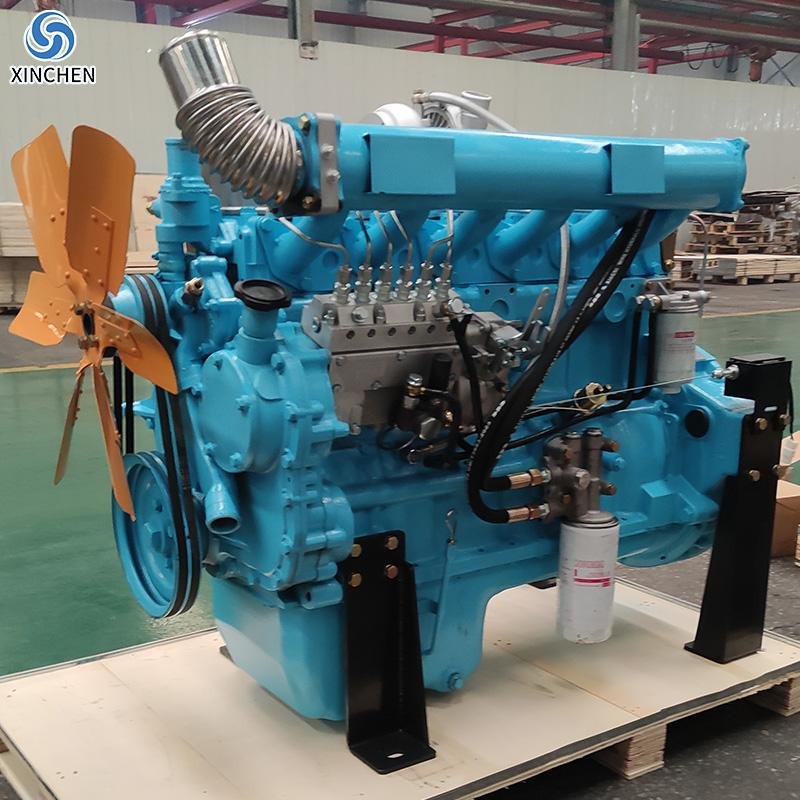

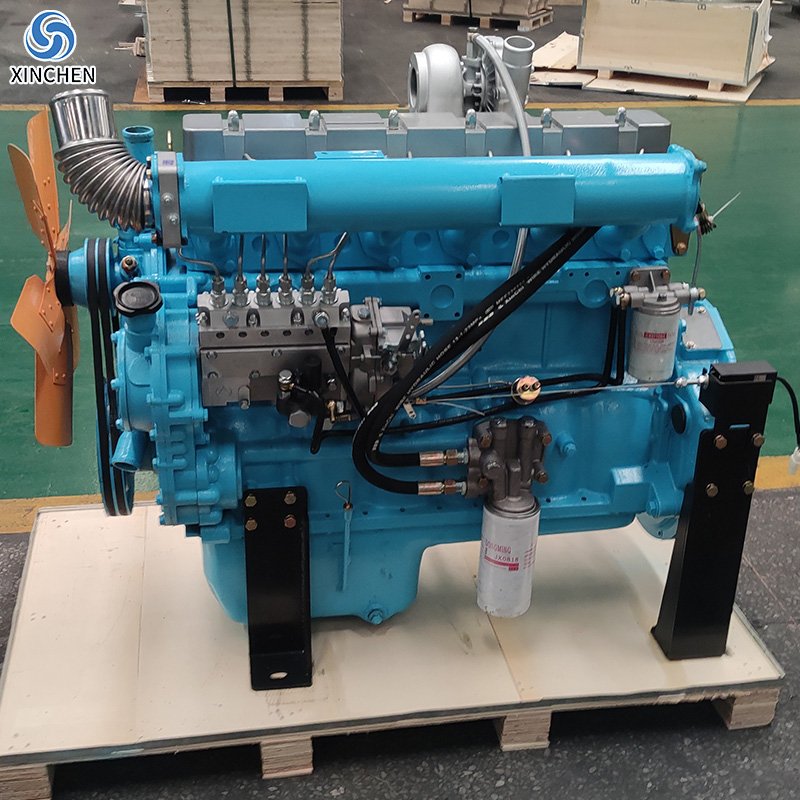

R6105zc Turbocharged Marine Diesel Engine 6 Cylinder Water Cooled Boat Power Engine
|
Engine Parameter
|
|||||
|
Model
|
R6105ZD/AZLD/IZLD
|
||||
|
Rated power
|
84-121-132
|
KW
|
Rated speed
|
1500
|
r/min
|
|
Number of cylinders
|
6
|
Way of burning
|
Direct injection
|
||
|
diameter×stroke
|
105×125
|
mm
|
Displacement
|
6.49
|
L
|
|
Compression ratio
|
18:1
|
cylinder working sequence
|
1-5-3-6-2-4
|
||
|
oil temperature≤
|
95
|
℃
|
Cooling water outlet temperature ≤
|
90℃
|
|
|
Oil Pressure
|
0.2-0.4
|
MPa
|
Idle oil pressure ≥
|
0.05MPa
|
|
|
Exhaust temperature
|
470
|
℃
|
Fuel Type
|
Diesel
|
|
|
Fuel consumption rate≤
|
224
|
g/kw.h
|
Oil consumption rate ≤
|
2.04
|
g/kw.h
|
|
air intake mode
|
Inhale naturally/turbocharge
|
Cooling method
|
water cooling
|
||
|
Speed Control
|
Mechanical speed regulation
|
Starting method
|
24VElectric start
|
||
|
Lubricating method
|
Pressure splash composite
|
Way of burning
|
Direct injection
|
||
|
Crankshaft rotatingdirection(ace to output end)
|
Anticlockwise
|
||||
 |
|||||
