ZH490 high-performance 4-cylinder water-cooled diesel engine for generators/fire pump sets/agricultural machinery
Engine Parameter Model ZH490/ZH490ZL Rated...
Category Diesel Engine
Keywords engine, diesel engine, water cooled engine, 4 cylinder diesel engine, engine for generator
Email Now
Call Us / Whatsapp

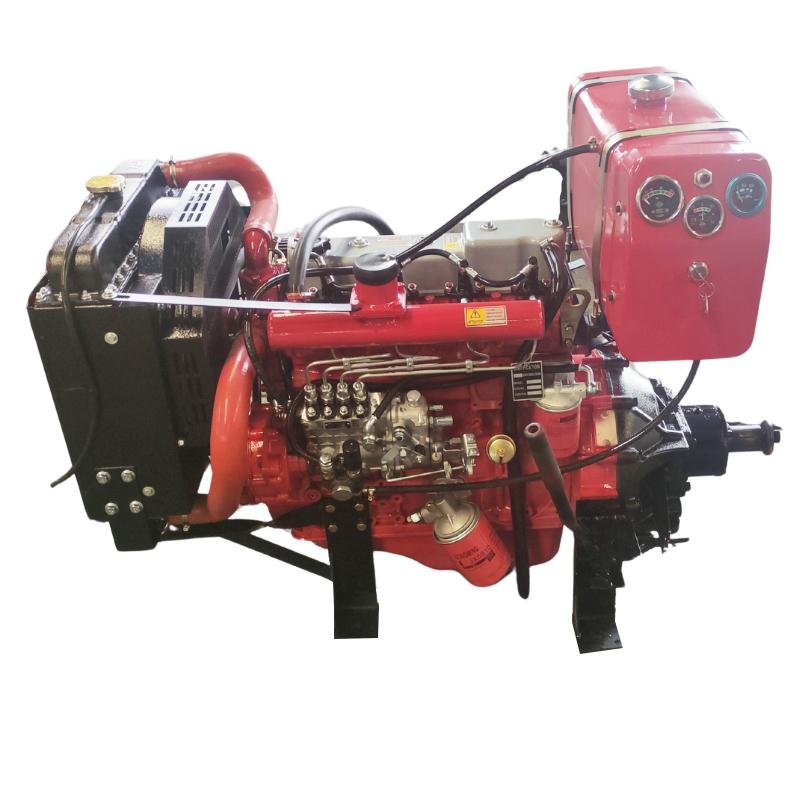

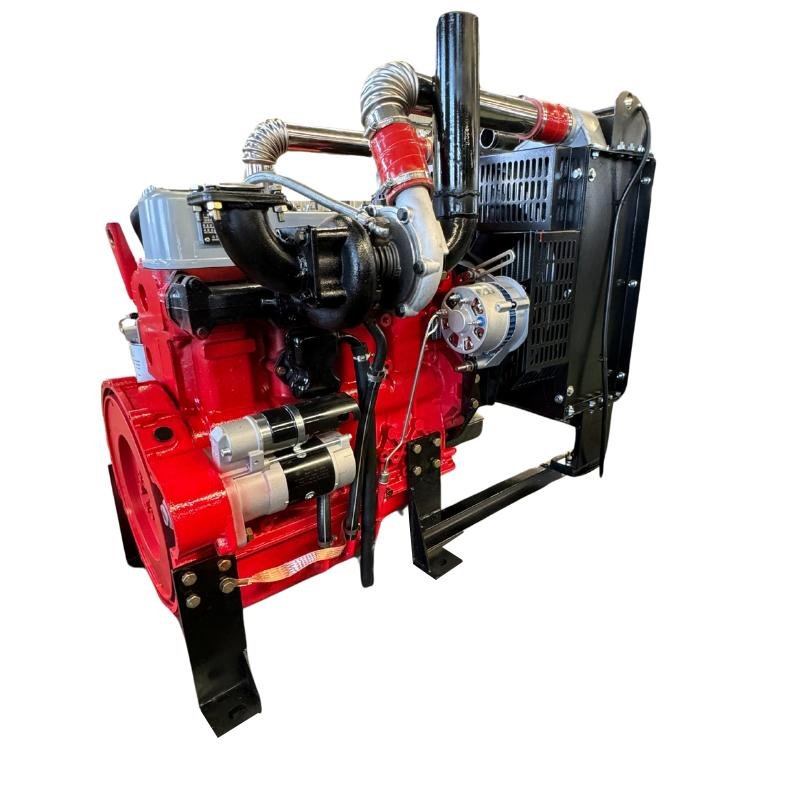

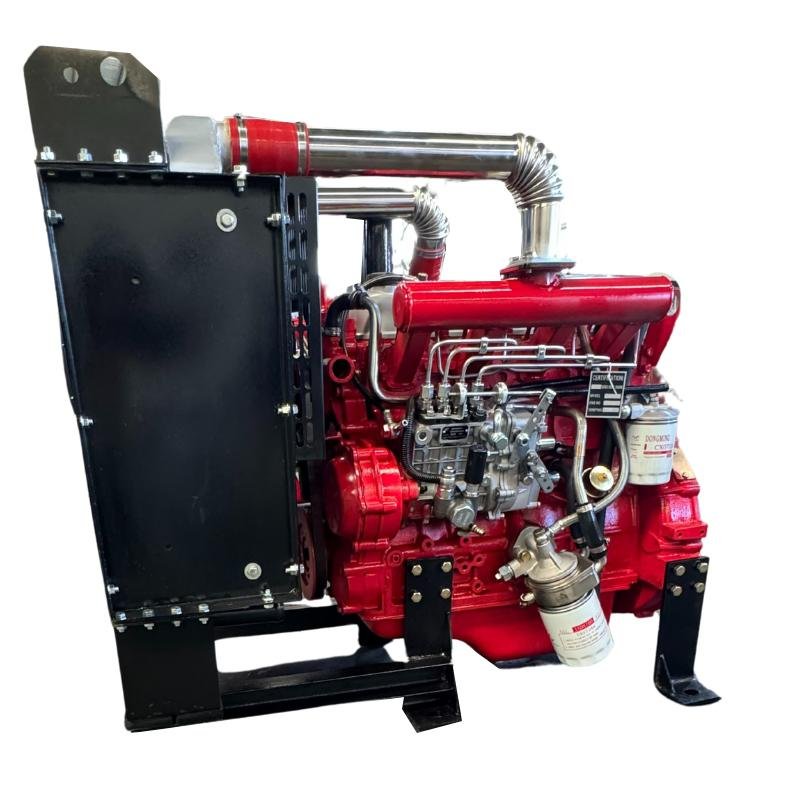

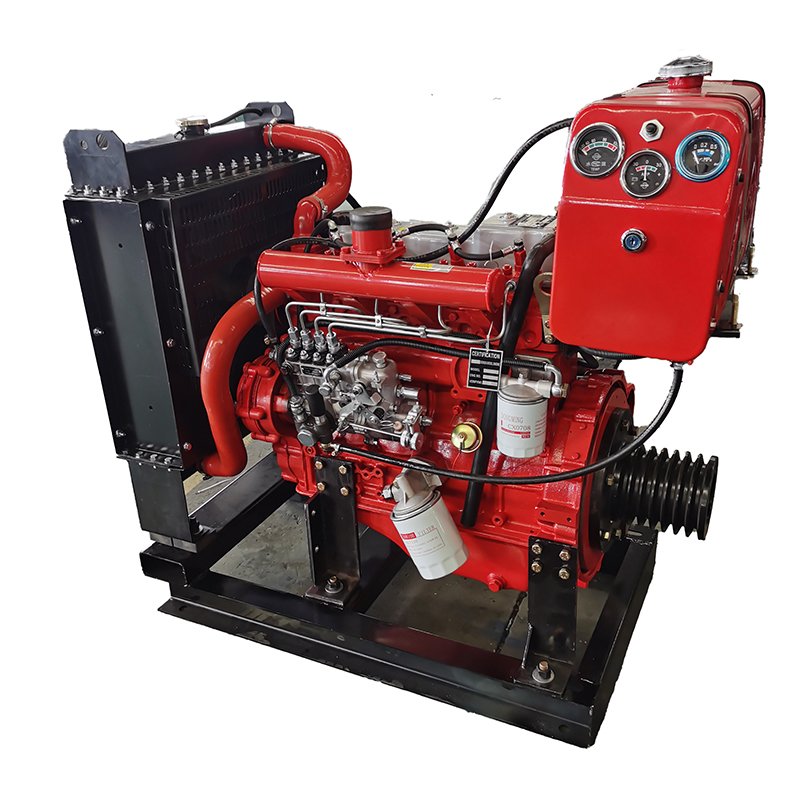

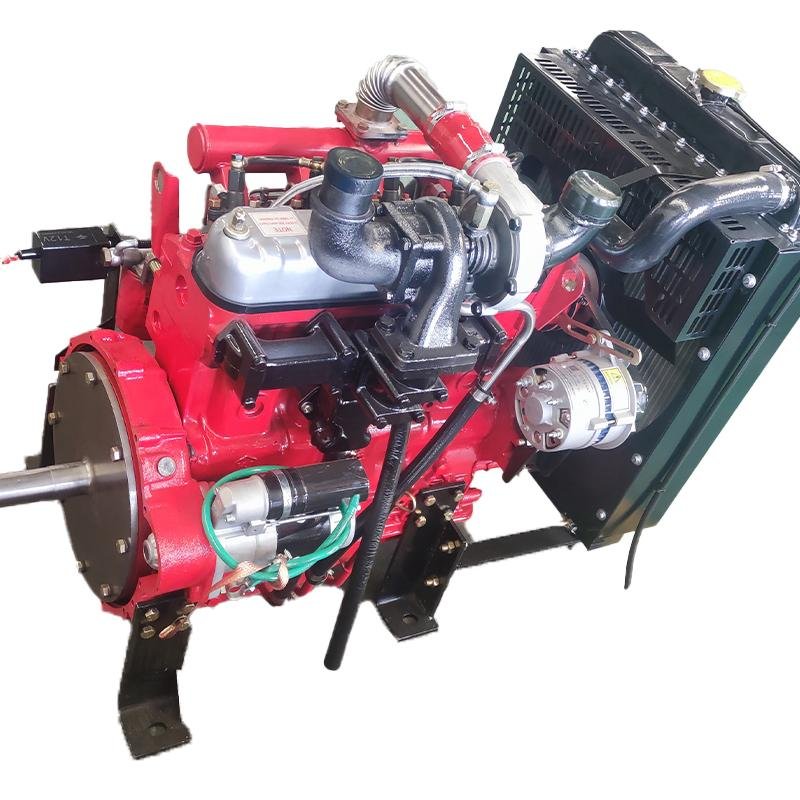

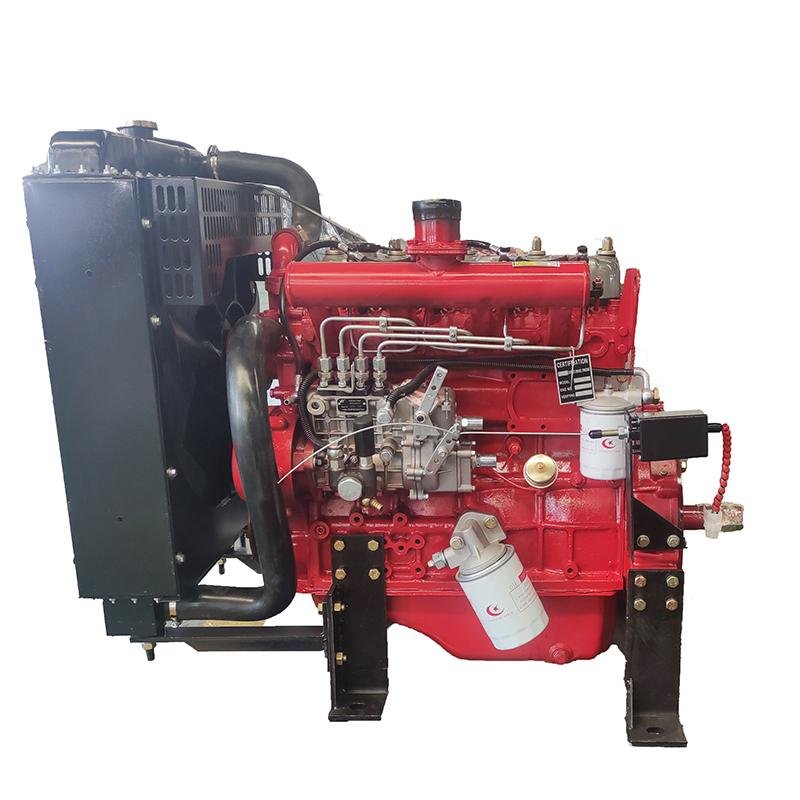

ZH490 high-performance 4-cylinder water-cooled diesel engine for generators/fire pump sets/agricultural machinery
|
Engine Parameter |
|||||
|
Model |
ZH490/ZH490ZL |
||||
|
Rated power： |
24-65 |
KW |
Rated speed： |
1500-3000 |
r/min |
|
Number of cylinders： |
4 |
Way of burning： |
Direct injection |
||
|
diameter×stroke： |
90×100 |
(mm) |
Displacement： |
2.2 |
L |
|
Compression ratio |
18：1 |
cylinder working sequence： |
1-3-4-2 |
||
|
oil temperature ≤ |
95 |
℃ |
Cooling water outlet temperature： ≤ |
90℃ |
|
|
Oil Pressure： |
0.3-0.4 |
MPa |
Idle oil pressure： ≥ |
0.05MPa |
|
|
Exhaust temperature： |
550 |
℃ |
Fuel Type： |
Diesel |
|
|
Fuel consumption rate： ≤ |
230-250 |
g/kw.h |
Oil consumption rate： ≤ |
2.6 |
g/kw.h |
|
air intake mode |
Inhale naturally
|
Cooling method： |
water cooling |
||
|
Speed Control |
Mechanical speed regulation
|
Starting method： |
12V Electric start |
||
|
Lubricating method |
Pressure splash composite |
air intake mode： |
Inhale naturally/ Turbocharging |
||
|
Crankshaft rotating direction(ace to output end)： |
Anticlockwise |
||||
