YN4BD-Z high-speed 3000RPM 90KW 122HP four cylinder water-cooled diesel engine

List of diesel engine performance parameters Diesel engine model YN4BD-Z Output power KW HP 3000r/min Rated power 90 122 Minimum n...

Category Diesel Engine

Keywords Engine,diesel engine,yn4bd-z diesel engine,china engine,4 cylinder diesel engine

Email Now

anna@chendura.com

Call Us / Whatsapp

+8613884816171

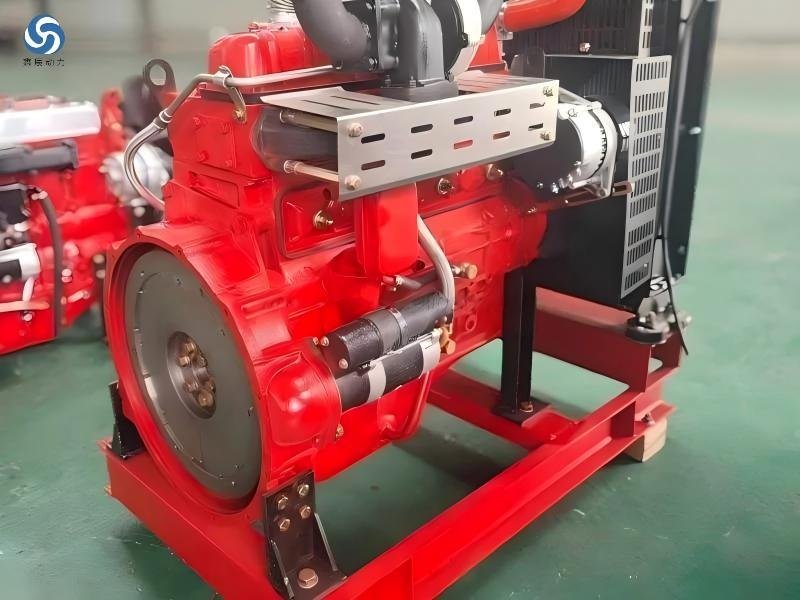

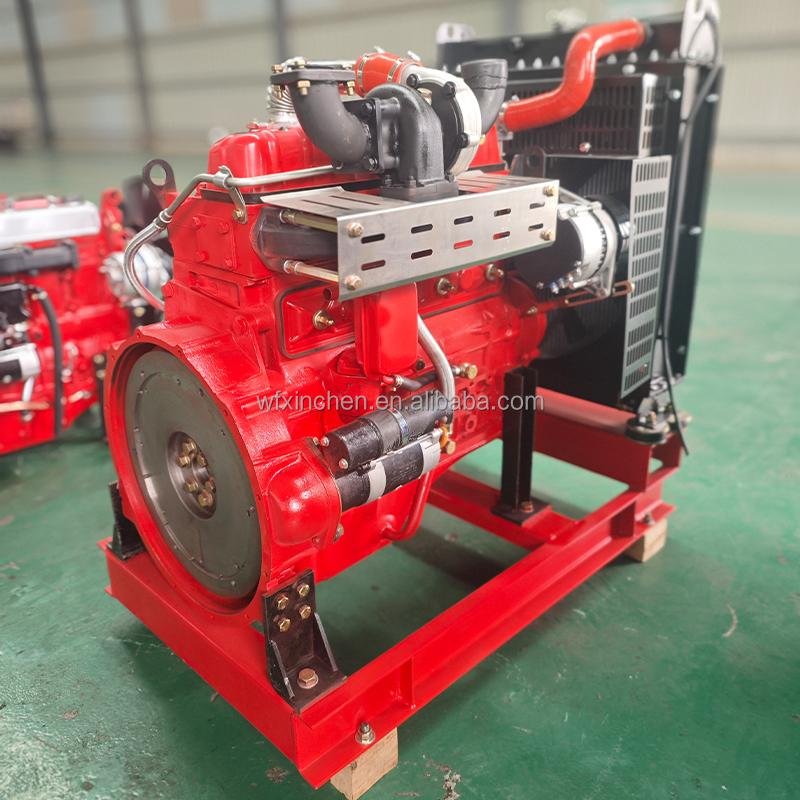

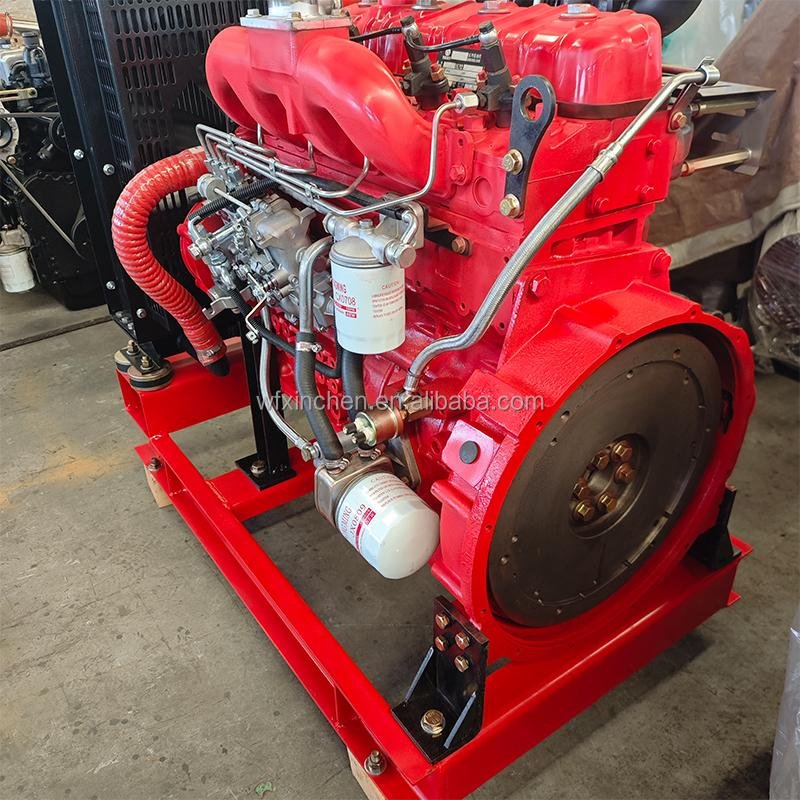

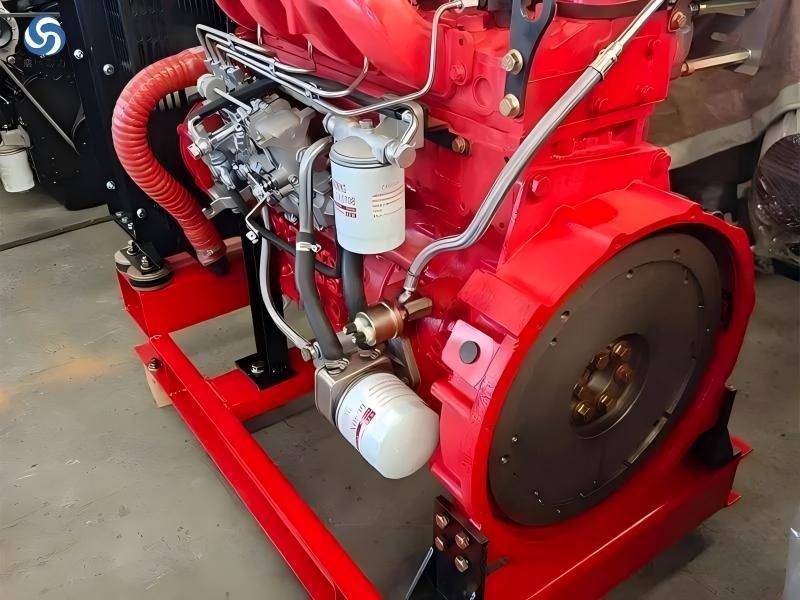

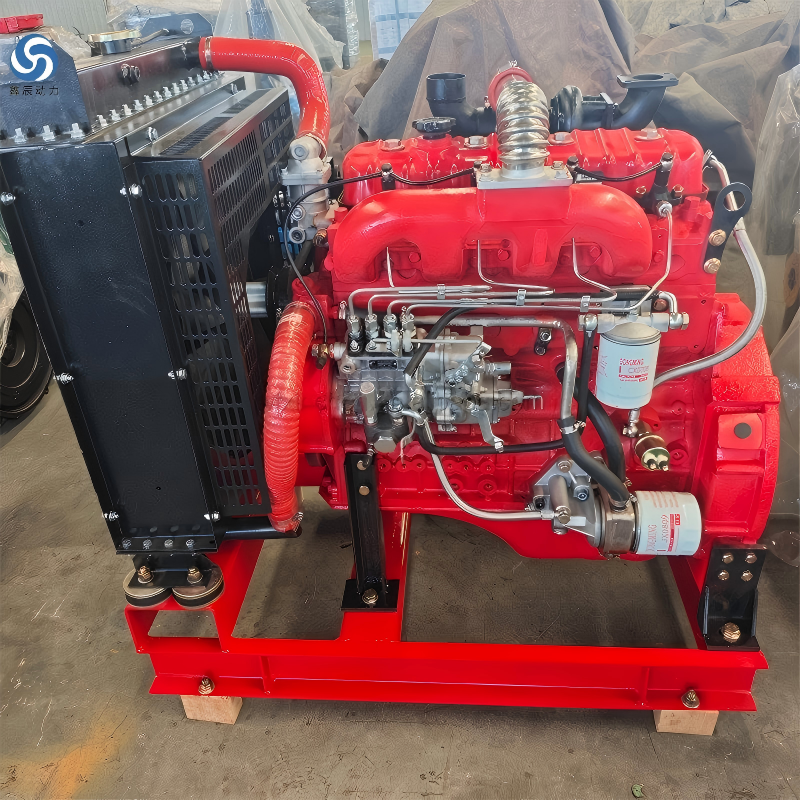

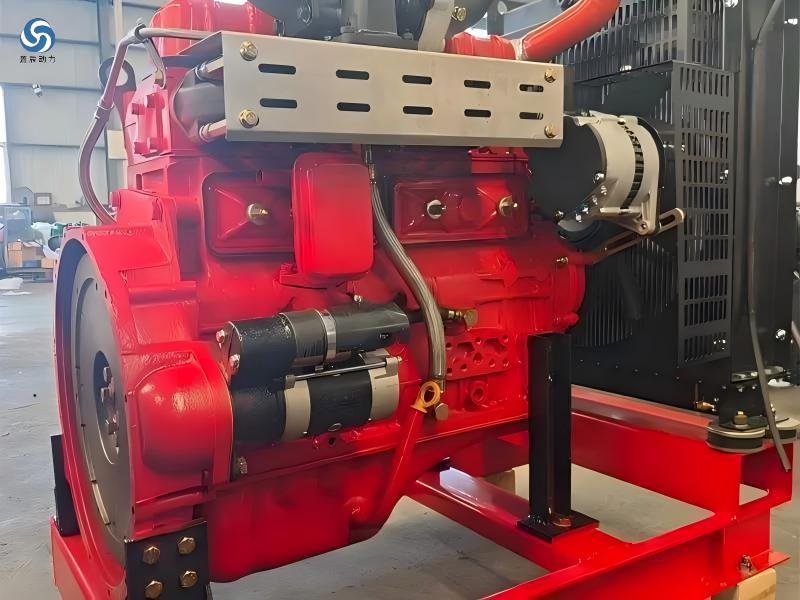

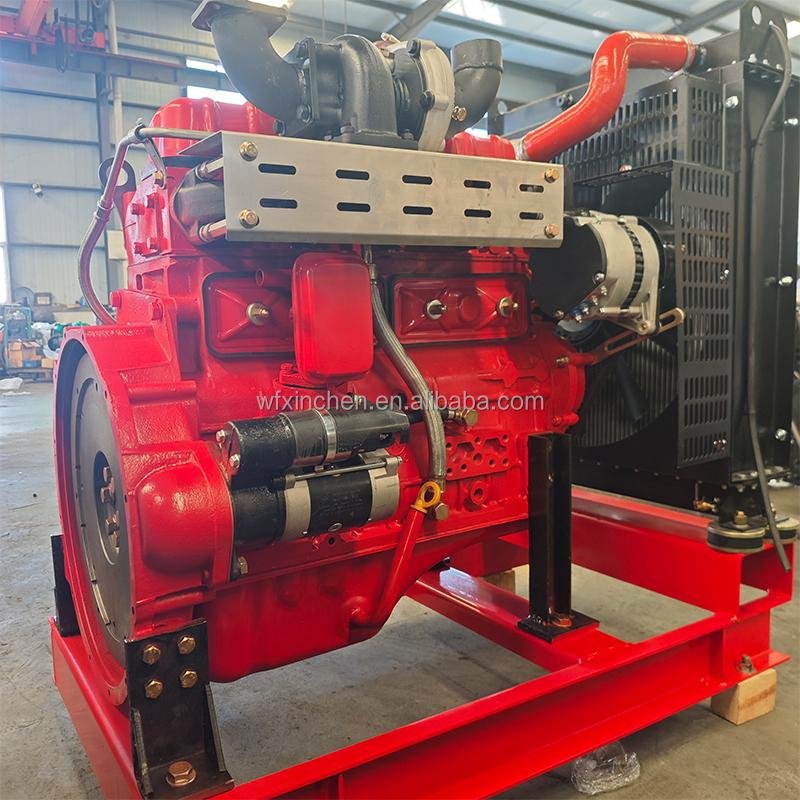

YN4BD-Z high-speed 3000RPM 90KW 122HP four cylinder water-cooled diesel engine

List of diesel engine performance parameters
Diesel engine model			YN4BD-Z
Output power			KW	HP
3000r/min		Rated power	90	122
Minimum no-load stable speed	750r/min	Type	Inline, water-cooled, four-stroke
Number of cylinders	4	Burning method	eddy Burning chamber
Bore × stroke	102×115mm	Total piston displacement	3.856L
Shrinkage ratio	17.5:1	Ignition sequence	1-3-4-2
Air intake method	supercharge	Calibrated speed oil pressure	0.2-0.4MPa
Oil pressure at idling	≥0.098 MPa	Oil temperature	≤95℃
Cooling water outlet temperature	≤90℃	Exhaust temperature	≤470℃
Fuel consumption rate	≤253g/kw.h	Fuel consumption rate	≤1.0 g/kw.h
Oil grade	Better than CD15W/40	Activation Method:	24V Electric start
Fuel Type:	diesel fuel	Cool the way	Closed forced water circulation cooling system
Connection	4# flywheel housing	Net weight	342kg
The direction of rotation of the crankshaft		Counterclockwise (from flywheel end)
