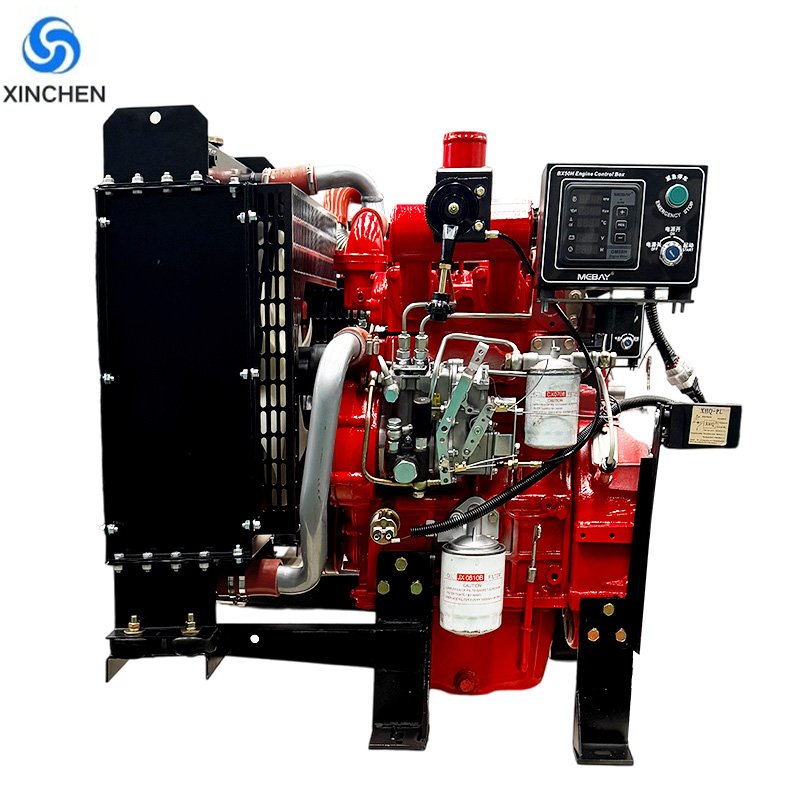

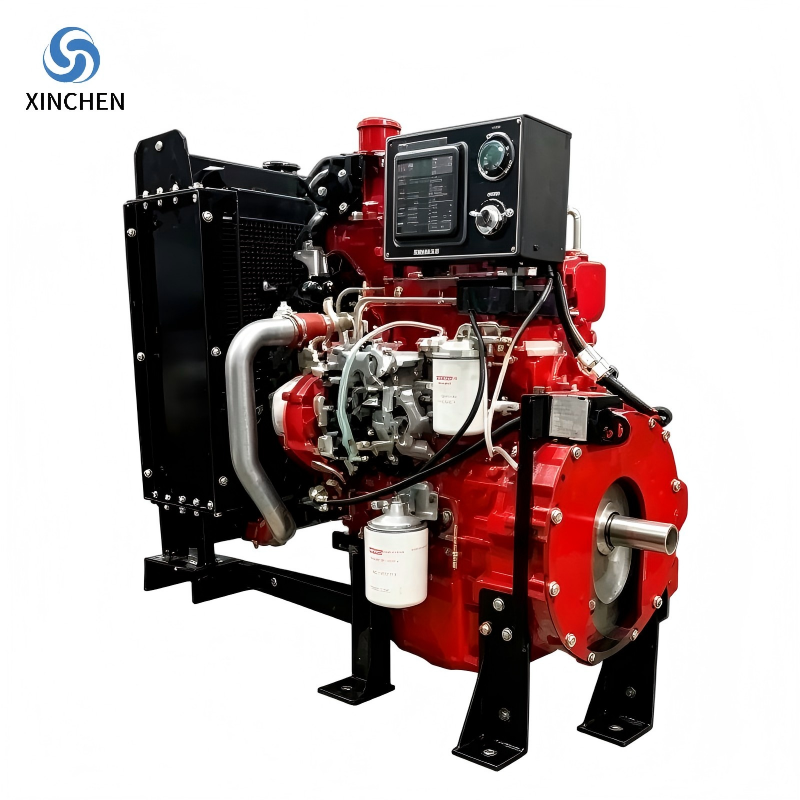

Factory direct sales of high-speed water-cooled two cylinder diesel engine with control panel for fire water pump
|
XC2110B Technical Parameters
|
|||
| Model | XC2110B | ||
| Diesel engine power | 35KW | Speed | 3000r/min |
| Type | In line, water-cooled, four stroke | Minimum speed of empty vehicle | 850±50r/min |
| Intake Type | Natural inhalation | Cyinder Quantity | 2 |
| Burning pattern | Direct injection | Cylinder working sequence | 1-2 |
| Bore*stroke (mm) | 110*117 | lubrication method | Pressure and Splash Composite |
| Cylinder liner type | Wet type | Cooling method | Closed forced water cooling |
| Displacement | 2.22L | Direction of crankshaft rotation (viewed from the flywheel end) |
Counterclockwise |
| Compression Ratio | 17:1 | speed regulation method | Mechanical speed regulation |
| Noise | ≤107dB(A) | Startup method | Electric starter 12V |
| Oil consumption rate | ≤2.72g/KW.h | Fuel consumption rate (g/KW. h) | ≤252g/KW.h |
| Net mass (flywheel end stop) |
230kg | Dimensions(flywheel housing end stop) length * width * height mm |
600*510*720 |
| Diesel Fuel | 0# diesel oil; the smoke emission at rated working conditions meets environmental protection requirements. | ||
 |
|||
