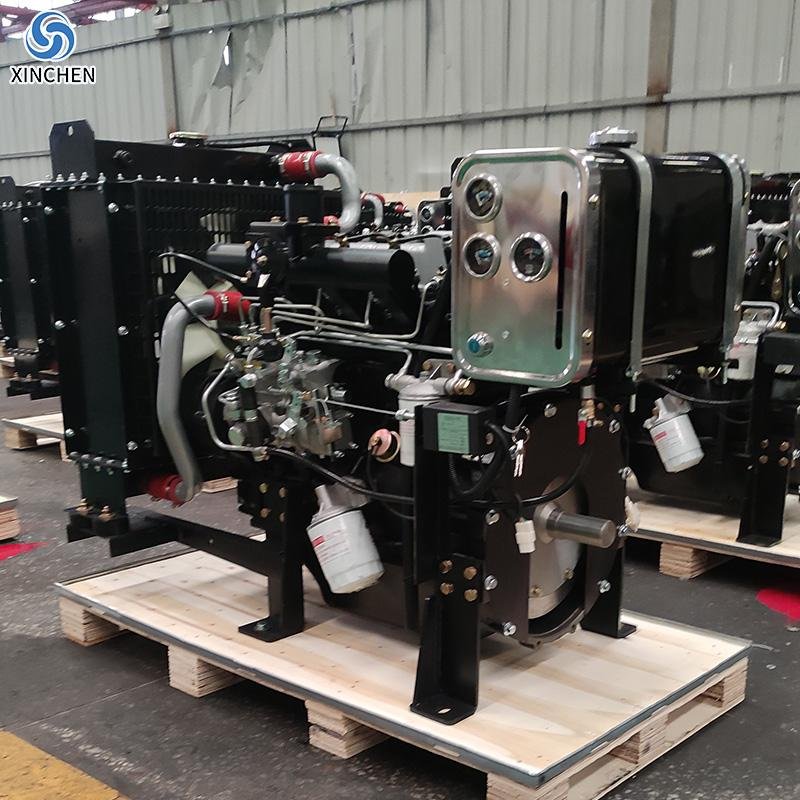

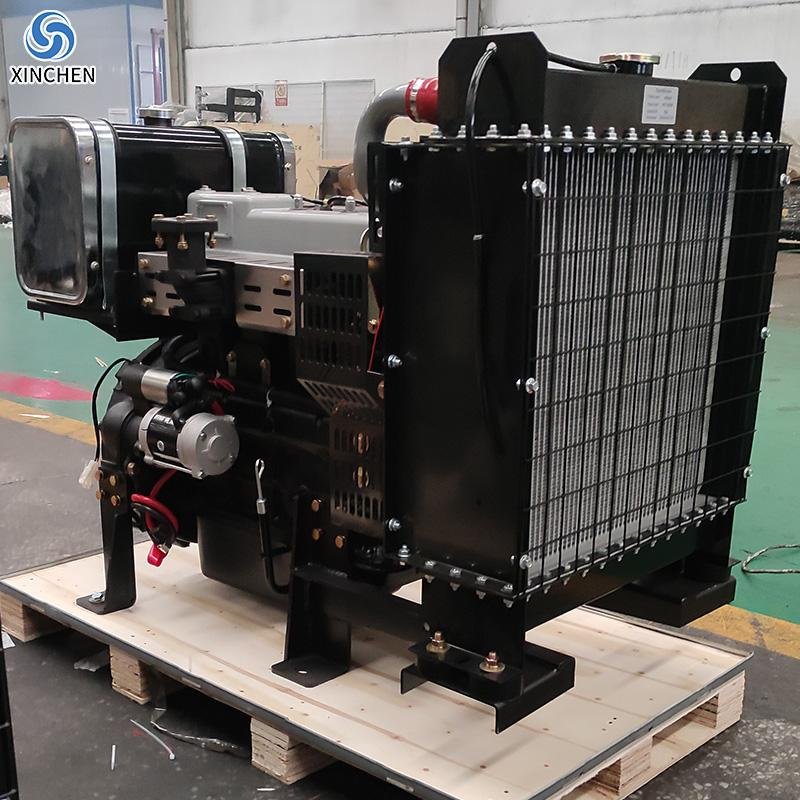

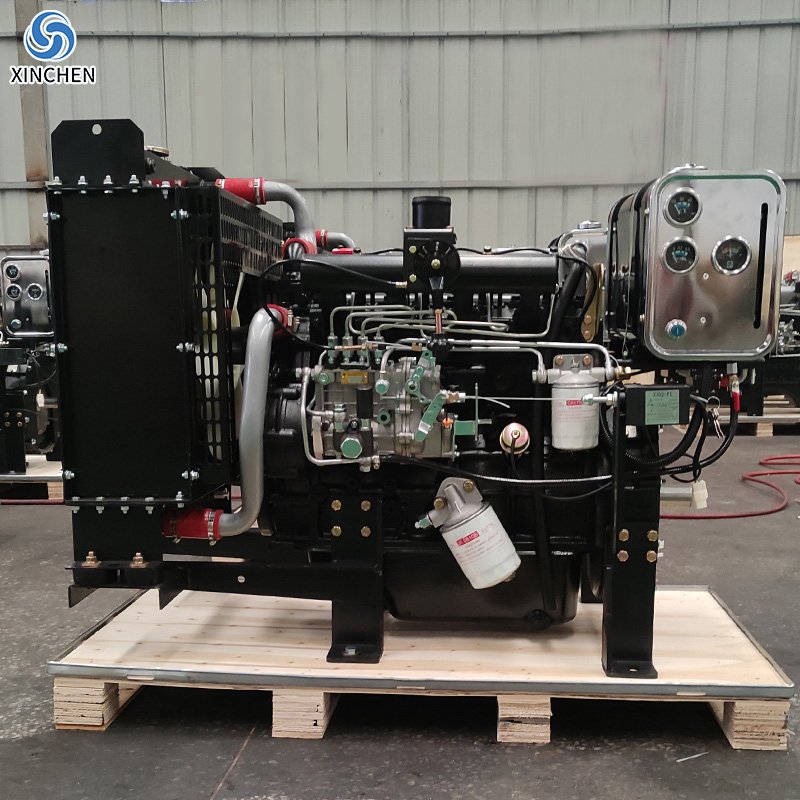

4B26 Black Series 45kW 61HP 3000RPM Diesel Engine for Fire Fighting Pump
|
XC4B26 Technical Parameters
|
|||
|
Model
|
|
||
|
Power
|
45KW
|
Speed
|
3000r/min
|
|
Type
|
In line, water-cooled, four stroke
|
Minimum speed of empty vehicle
|
850±50r/min
|
|
Intake Type
|
Natural aspiration
|
Cyinder Quantity
|
4
|
|
Burning pattern
|
Direct injection
|
Cylinder working sequence
|
1-3--4-2
|
|
Bore*stroke
|
90*100
|
lubrication method
|
Pressure and Splash Composite
|
|
Cylinder liner type
|
Wet type
|
Cooling method
|
Closed forced water cooling
|
|
Displacement
|
2.6L
|
Direction of crankshaft rotation
(viewed from the flywheel end) |
Counterclockwise
|
|
Compression Ratio
|
18:1
|
speed regulation method
|
Mechanical speed regulation
|
|
Noise
|
≤107dB(A)
|
Startup method
|
Electric starter 12V
|
|
Oil consumption rate
|
≤2.72g/kw.h
|
Fuel consumption rate
|
≤252g/kw.h
|
|
Net mass(flywheel end stop)
|
260kg
|
Dimensions(flywheel housing end stop)
length * width * height mm |
900*750*980
|
|
Diesel Fuel
|
0# diesel oil; the smoke emission at rated working conditions meets environmental protection requirements.
|
||
 |
|||
