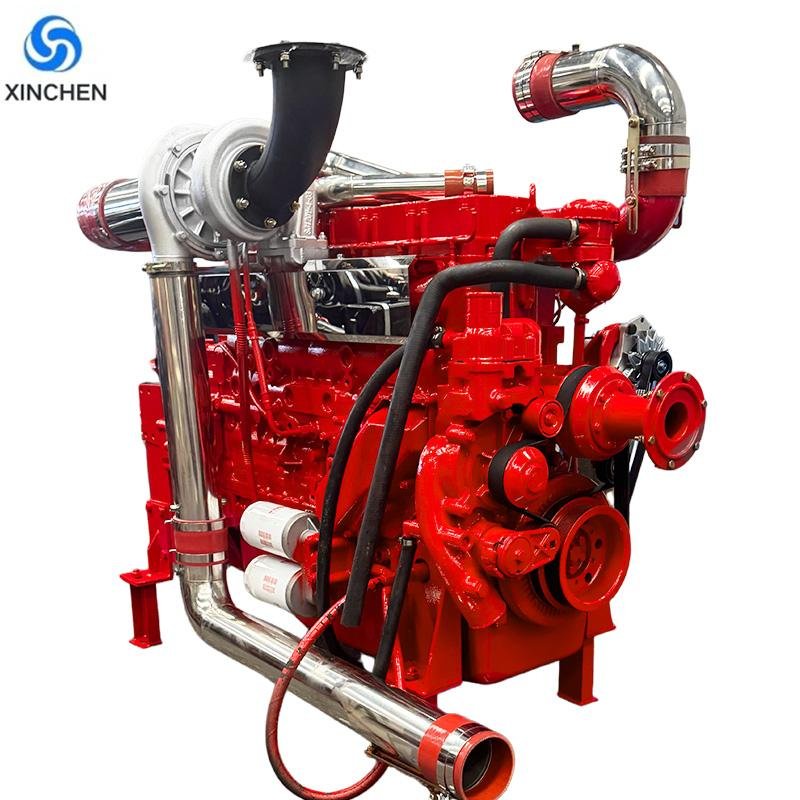

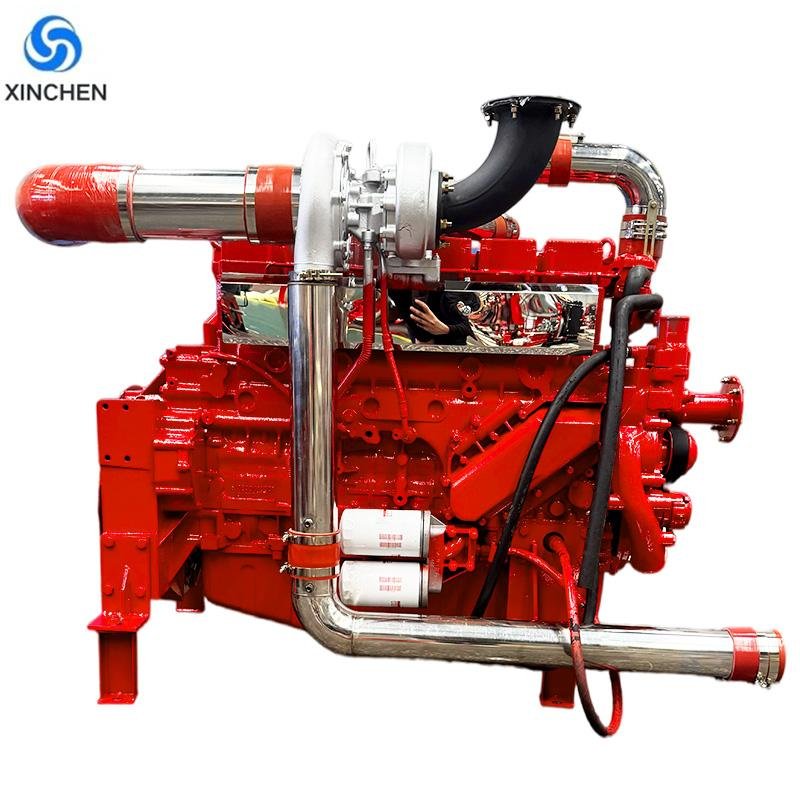

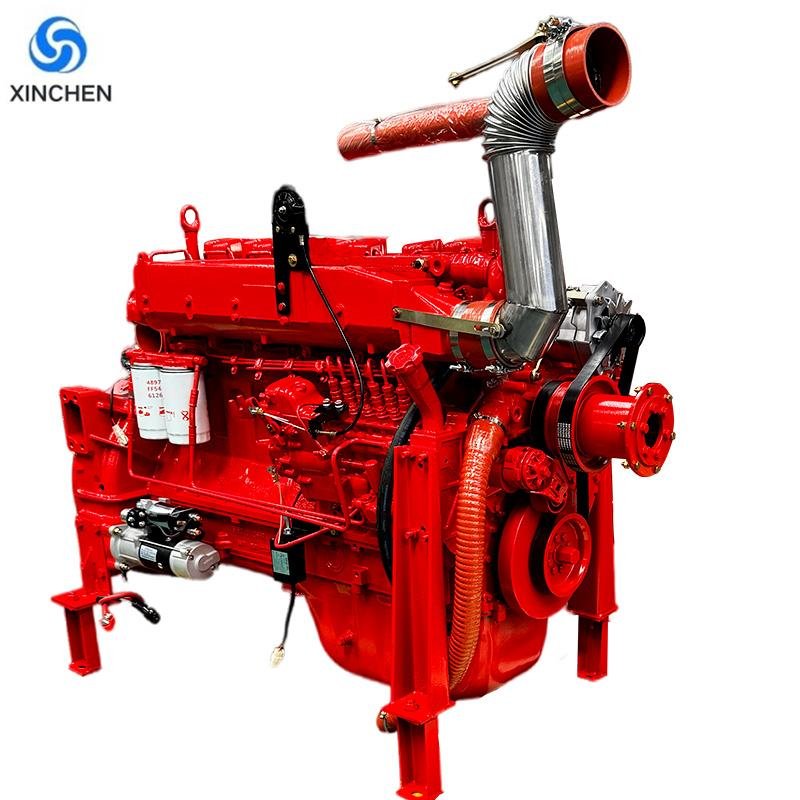

High-quality six-cylinder four-stroke water-cooled diesel engine, electric start, Euro IV standard, suitable for fire pump systems
XCP12B280-3000技术参数 Technical Parameters 型号 MOdel XCP12B280 柴油机额定转速 Diesel Engine Rated Speed...
Category Fire Pump Diesel Engine
Keywords engine, diesel engine, 4 stroke engine, 6cylinder diesel engine, engine assembly
Email Now
Call Us / Whatsapp
High-quality six-cylinder four-stroke water-cooled diesel engine, electric start, Euro IV standard, suitable for fire pump systems
|
|
XCP12B280-3000技术参数 Technical Parameters |
||
|
型号 MOdel |
XCP12B280 |
||
|
柴油机额定转速 Diesel Engine Rated Speed |
3000r/min |
||
|
型式 Type |
六缸、四冲程、增压中冷 Six-cylinder, four-stroke, turbocharged and intercooled |
缸径*行程（mm) Bore*stroke（mm) |
126*165mm |
|
柴油机冷却方式 Diesel Engine Cooling Methods |
闭式循环、风扇散热水箱 Closed-loop circulation, fan-cooled water tank |
排量（L) Displacement（L) |
12.34L |
|
柴油机功率 Diesel engine power |
280/300KW |
排气温度（℃） Delivery temperature |
≤600 |
|
压缩比 Displacement |
17:1 |
燃油消耗率（g/KW.h) Fuel consumption rate |
≤226g/KW. h |
|
启动方式 Startup method |
电启动24V Electric starter 24V |
机油消耗量（g/KW.H） Oil Consumption |
≤1.68g/KW. h |
|
润滑方式 lubrication method |
压力及飞溅复合式 Closed forced water cooling |
曲轴转向 Crankshaft Rotation Direction |
飞轮端逆时针 Flywheel end counterclockwise |
|
柴油机燃油 Diesel Fuel |
0#柴油； 额定工况时排烟度满足环保要求 0# diesel oil; the smoke emission at rated working conditions meets environmental protection requirements. |
||
