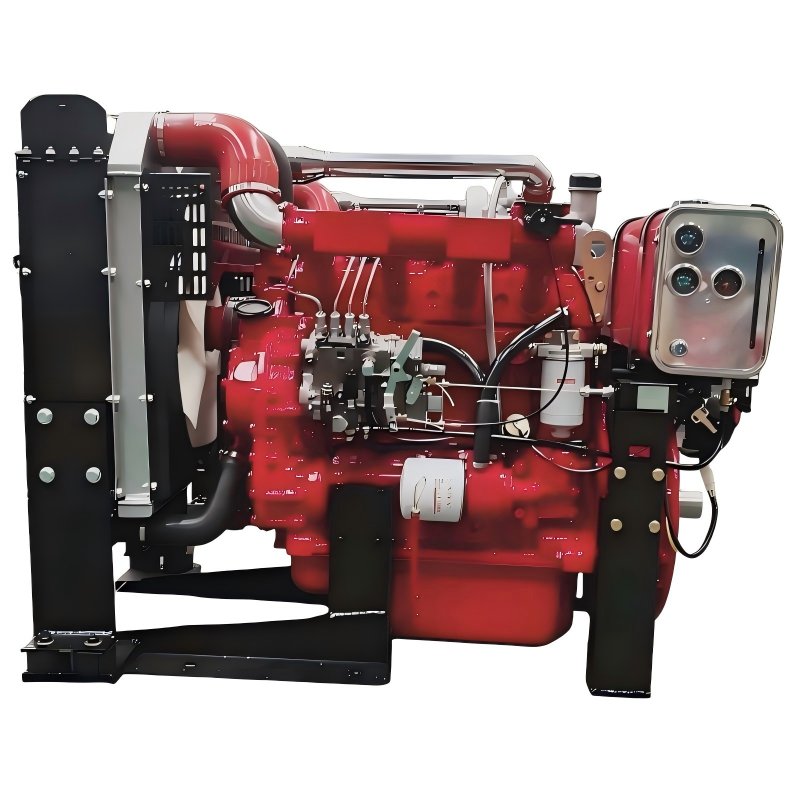

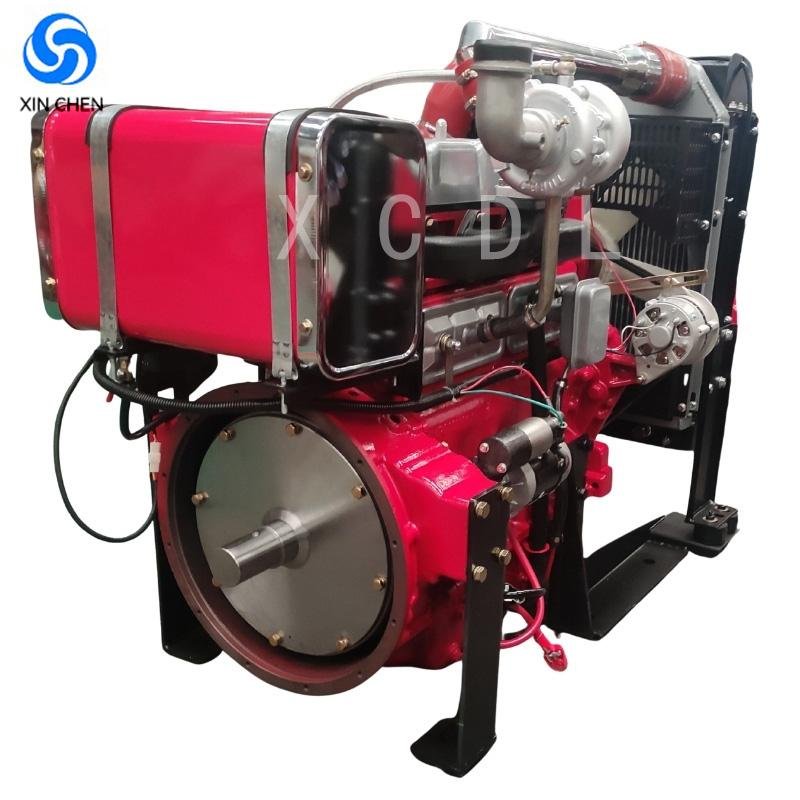

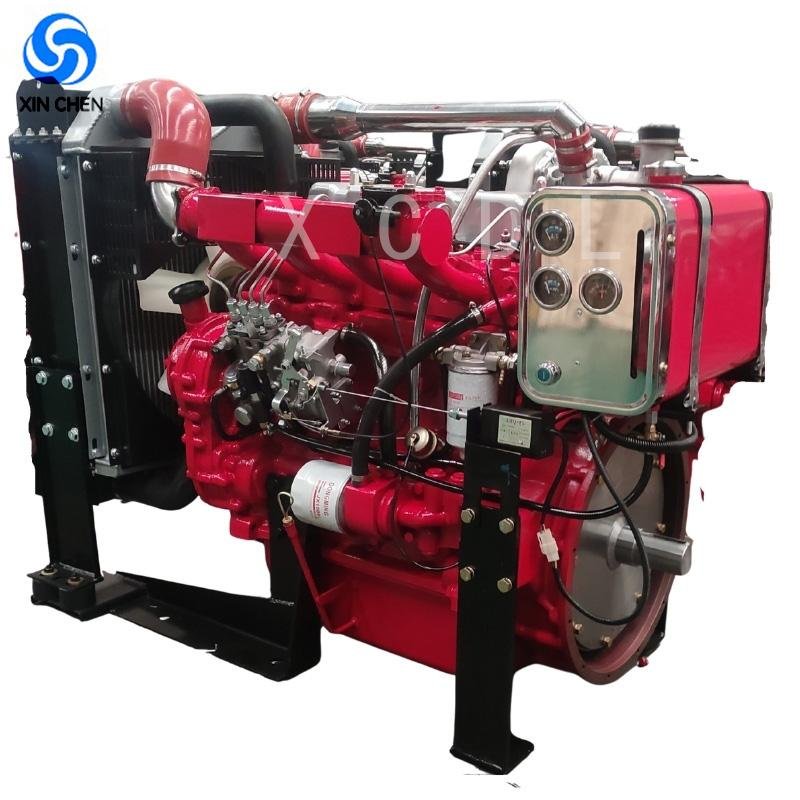

R4108ZL High-speed 3000RPM 110KW 150HP Four-cylinder Four-stroke Water-cooled Diesel Engine, Suitable for Fire Pumps/Water Pumps

型号MOdel

XCR4108ZLB

柴油机功率

Diesel engine power

110KW

柴油机额定转速

Diesel Engine Rated Speed

3000r/min

型式

Type

直列、水冷、四冲程

In line, water-cooled, four stroke

空车最低转速

Minimum speed of empty vehicle

850±50r/min

进气方式

Intake Type

增压中冷

Intercooled supercharging

缸数

Cyinder Quantity

4

燃烧型式

Burning pattern

直喷式

direct injection

气缸工作顺序

Cylinder working sequence

1-3--4-2

缸径*行程（mm)

Bore*stroke

108*115

润滑方式

lubrication method

压力及飞溅复合式

Pressure and Splash Composite

气缸套型式

Cylinder liner type

湿式

wet type

冷却方式

cooling method

闭式强制水冷

Closed forced water cooling

排量（L)

Displacement

4.2L

曲轴旋转方向（面对飞轮端看）

Direction of crankshaft rotation

(viewed from the flywheel end)

逆时针

counterclockwise

压缩比

Compression Ratio

16:1

调速方式

speed regulation method

机械调速

mechanical speed regulation

噪声

noise

≤107dB(A)

启动方式

Startup method

电启动24V

Electric starter 24V

机油消耗率

Oil consumption rate

≤1.63g/kw.h

燃油消耗率

Fuel consumption rate

≤218g/kw.h

净质量（飞轮端止）

Net mass

(flywheel end stop)

460kg

外形尺寸(飞轮外壳端止）

长*宽*高mm

Dimensions

(end of flywheel housing)

 length * width * height

950*580*720

柴油机燃油

Diesel Fuel

0#柴油； 额定工况时排烟度满足环保要求

0# diesel oil; the smoke emission at rated working conditions meets environmental protection requirements.
