About
Chendura is a Company integrating the research and development, sales and after-sales of diesel engines, diesel generator sets and water pump sets. It specializes in providing various diesel engine complete machines and diesel engine accessories.
Read MoreGallery
3000rpm Water Cooled 4 Cylinder Diesel Engine 490
ZH490D490D Diesel engine technical parameters model ZH490D 0 90 0 rated power: 45...
Category Diesel Engine
Keywords Diesel Engine, 490 diesel engine, 300ORPM Diesel Engine, Diesel Engine part
Email Now
Call Us / Whatsapp

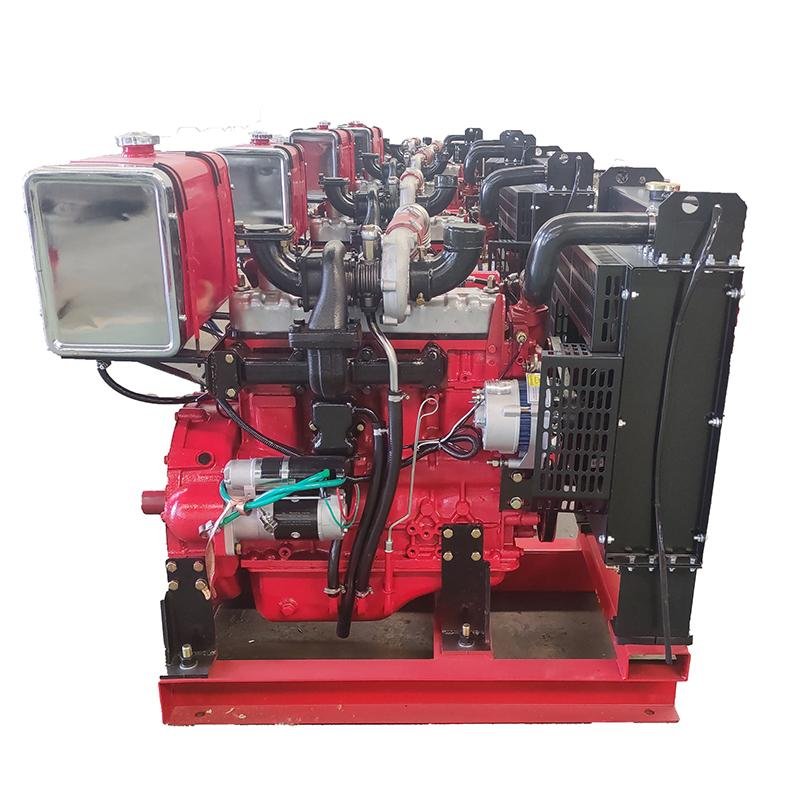

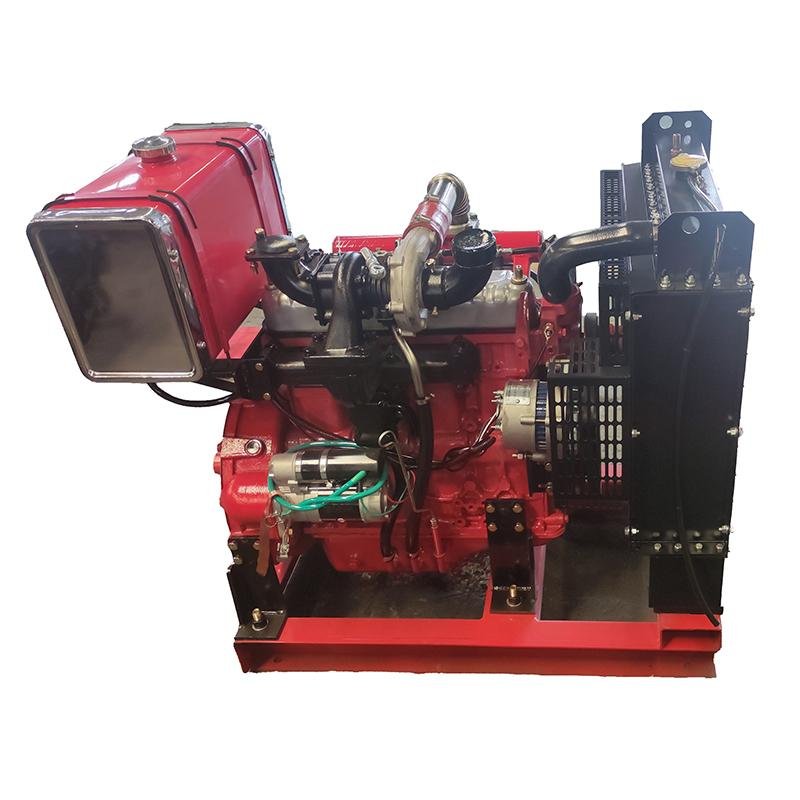

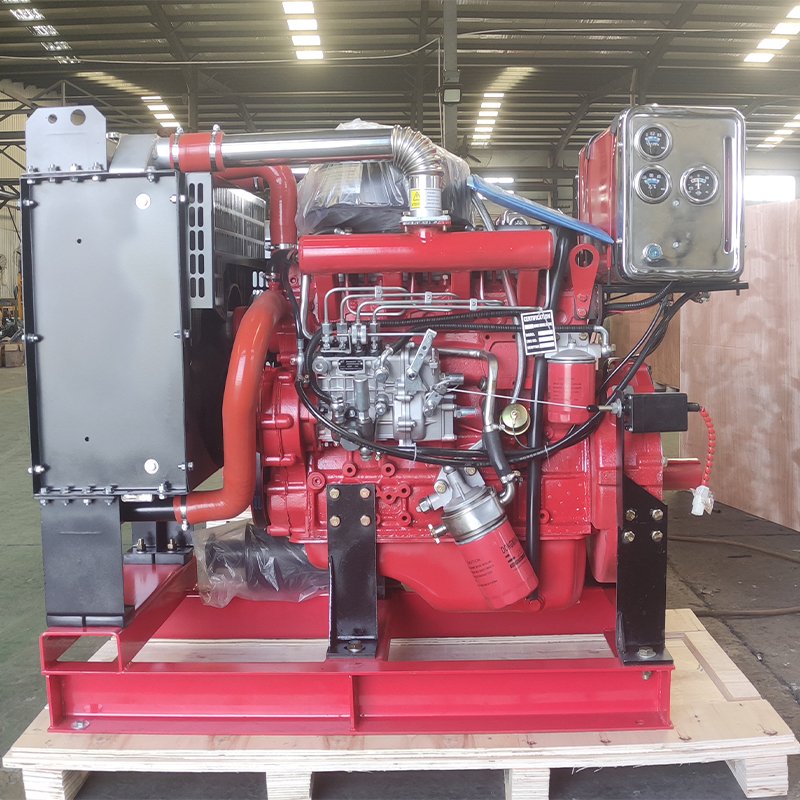

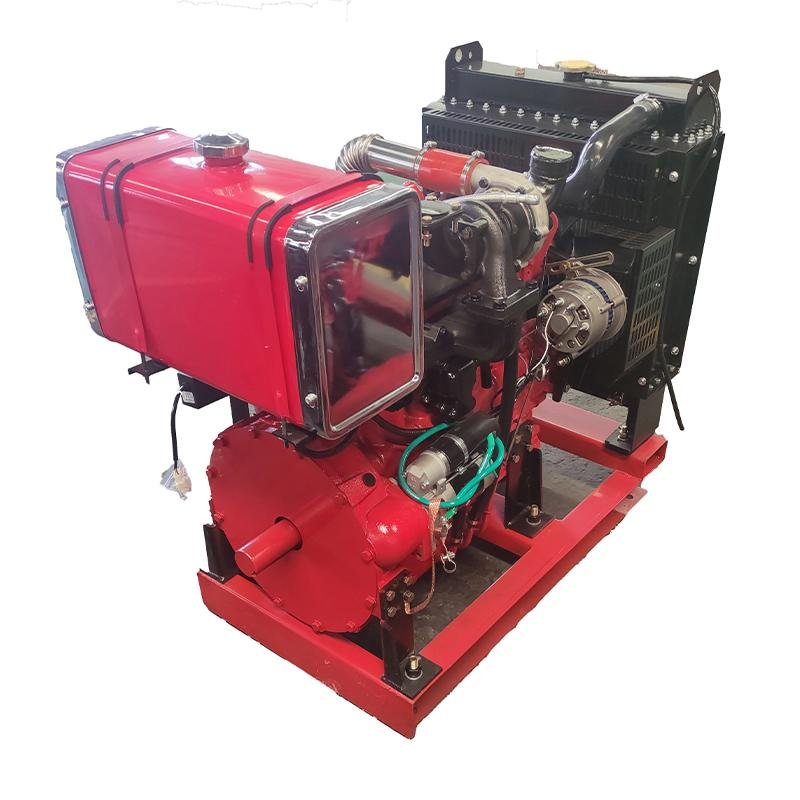

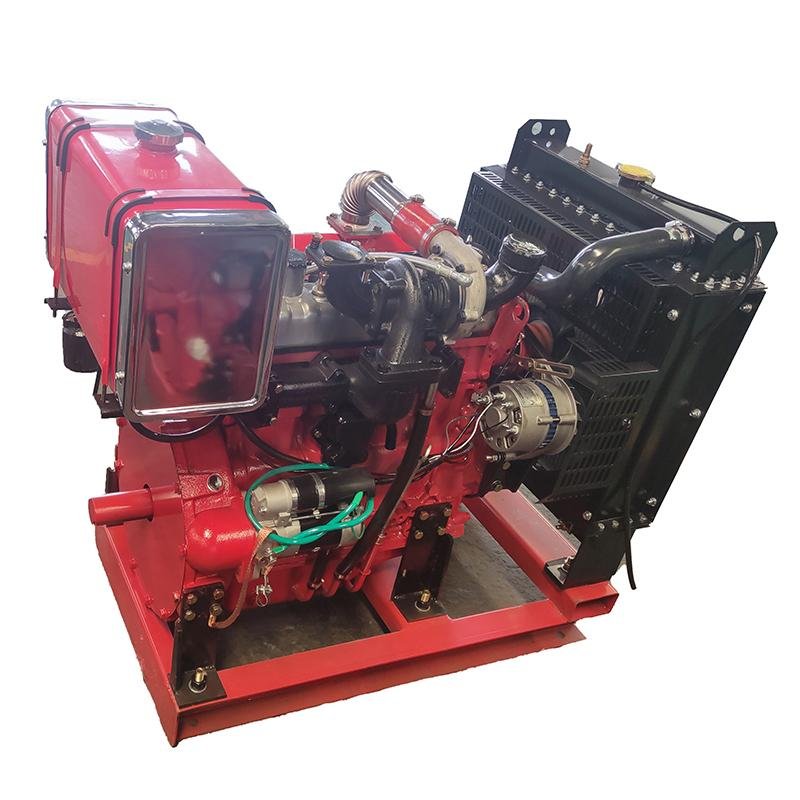

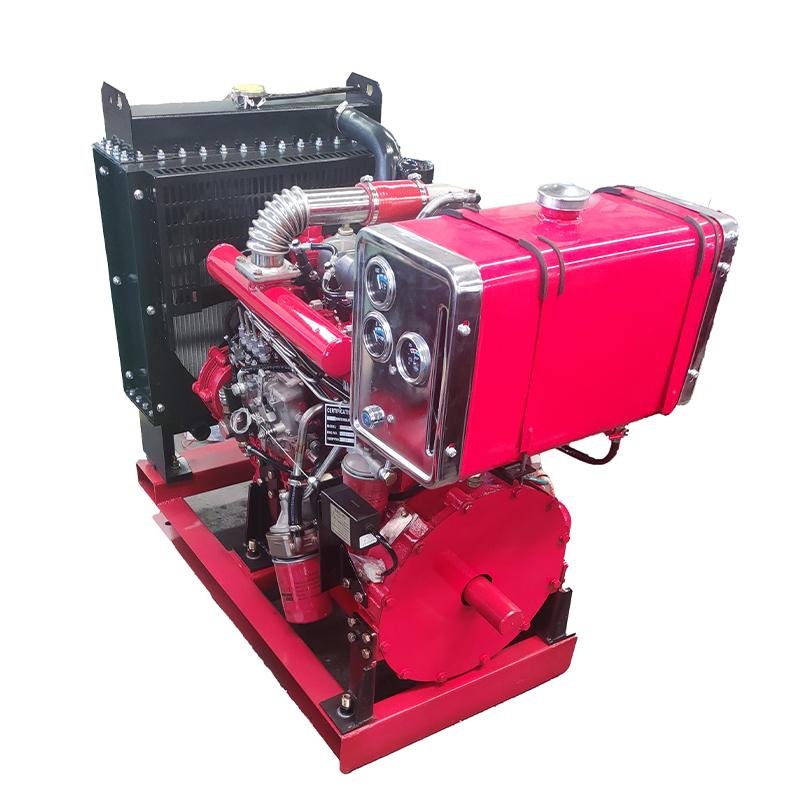

3000rpm Water Cooled 4 Cylinder Diesel Engine 490
| ZH490D 4 90 D |
Diesel engine technical parameters | |||||||||||
| model | ZH490D | 0 | 90 | 0 | ||||||||
| rated power: | 45 | KW | Rated speed: | 3000 | r/min | |||||||
| Maximum no-load stable speed: | 3150 | r/min | Minimum no-load stable speed: | ≤ | 800 | r/min | ||||||
| Number of cylinders: | 0 | Type: | series | water cooling | Four-stroke | |||||||
| Bore size × stroke: | 90 | × | 100 | （mm） | Total piston displacement: | 0.00 | L | |||||
| Compression ratio: | 18 | :1 | Fire order: | 1-3-4-2 | ||||||||
| Engine oil temperature: | ≤ | 95 | ℃ | Cooling water outlet temperature: ≤ | 75-90 | ℃ | ||||||
| Calibrated speed oil pressure: | 0.2 | — | 0.4 | MPa | Oil pressure at idle: | ≥ | 0.098 | MPa | ||||
| Exhaust temperature (before vortex): | ≤ | 500 | ℃ | Engine oil grade: | CD15W/40 | |||||||
| Fuel consumption: | ≤ | 253 | g/kw.h | Engine oil consumption rate: ≤ | ≤ | 1 | g/kw.h | |||||
| Air intake method: | Turbocharger | Inhale | cooling method: | Closed water cooling | ||||||||
| Speed mode: | mechanical | speed regulation | Startup method: | 12 | V electric start | |||||||
| Lubrication method: | Pressure and splash combined | Combustion method: | direct injection | combustion chamber | ||||||||
| Oil supply advance angle: | 12 | ± | 1° | Fuel type: | National standard | diesel fuel | ||||||
| Crankshaft rotation direction: Counterclockwise (from flywheel end) | Full load fuel consumption (L/h) | 8 | About L/h | |||||||||
| Engine oil capacity (L): | 6-6.5 | L | Net mass (kg): | 260 | kg | |||||||
| Overall dimensions (mm): | 850*700*900 | use | pumping unit | |||||||||
