Xincheng Power Xc6bm Six-Cylinder Water-Cooled Four-Stroke High-Speed High-Quality Diesel Engine for Fire Pumps
XC6BM-ZLB/XC6BM-ZLLB Technical Parameters MOdel XC6BM-ZLB/XC6BM-ZLLB Diesel engine power 135KW/165KW Diesel Engine Rated Speed 3000r/min Ty...
Category Fire Pump Diesel Engine
Keywords engine assembly, machinery engines, engine, diesel engine, 4 stroke engine
Email Now
Call Us / Whatsapp

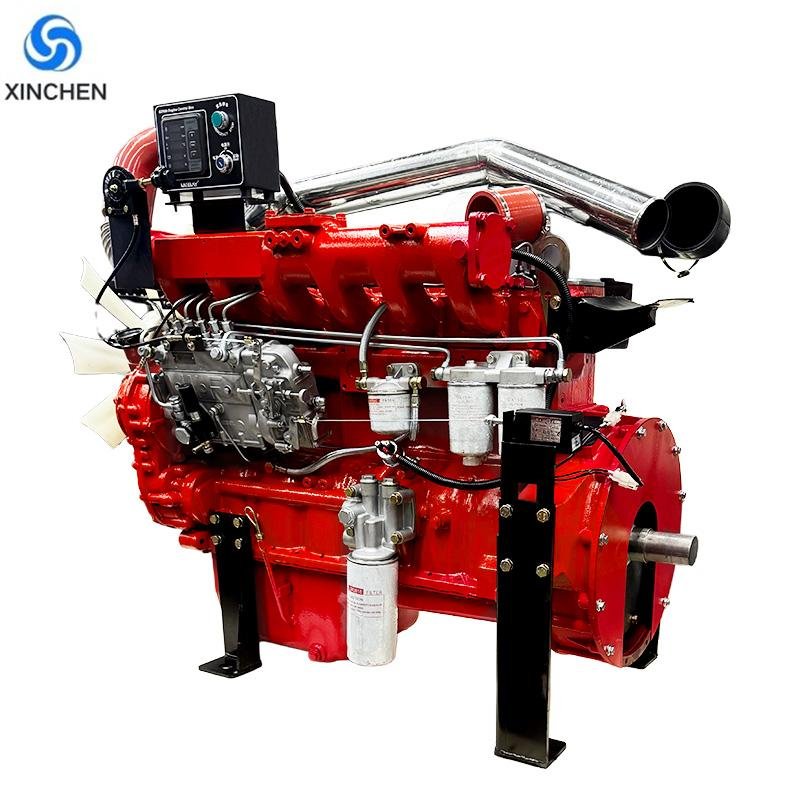

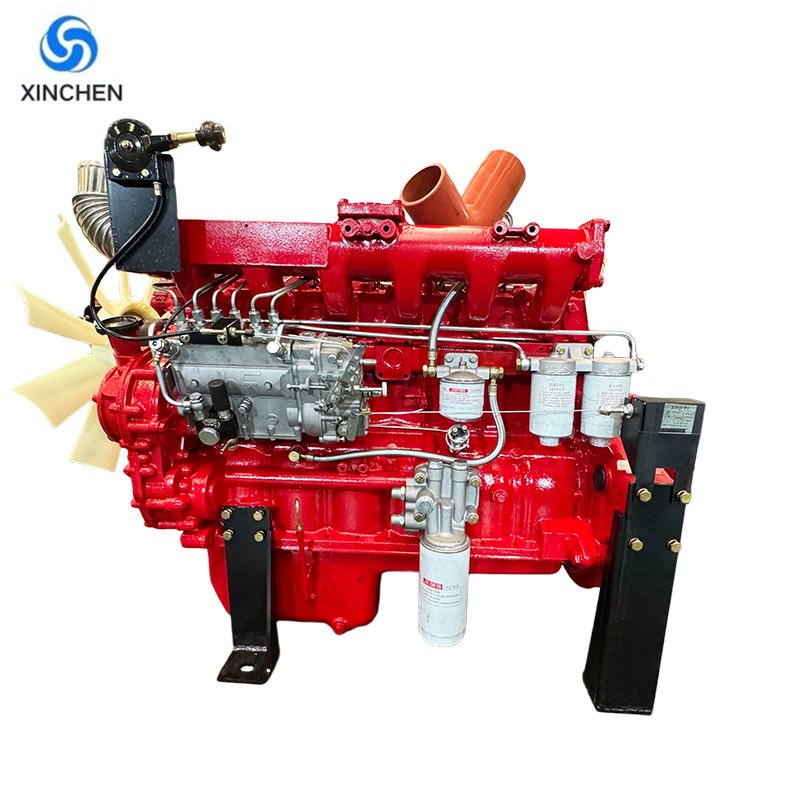

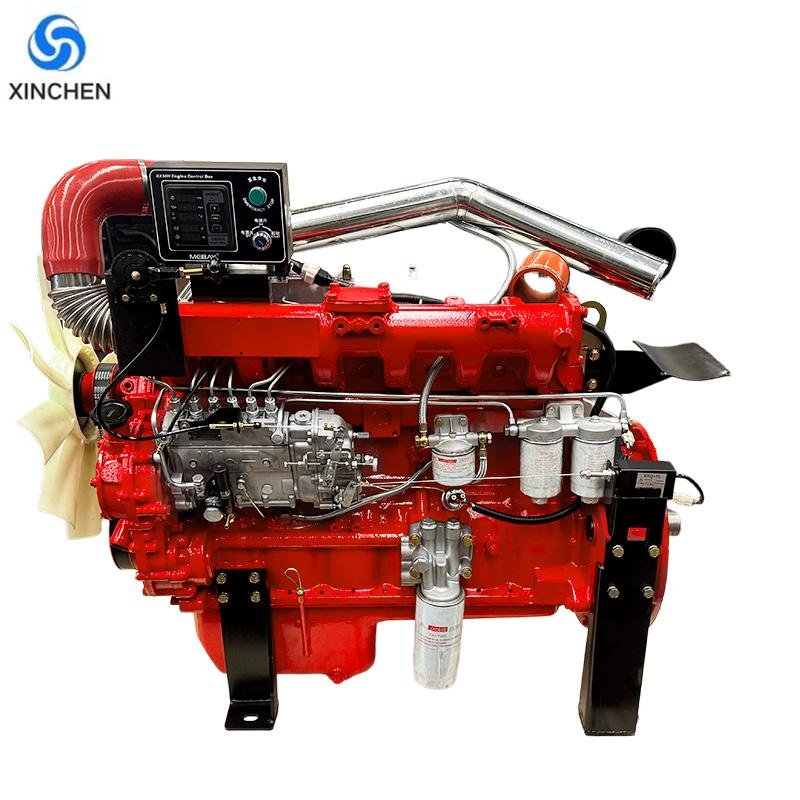

Xincheng Power Xc6bm Six-Cylinder Water-Cooled Four-Stroke High-Speed High-Quality Diesel Engine for Fire Pumps
|
XC6BM-ZLB/XC6BM-ZLLB Technical Parameters
|
|||
MOdel |
XC6BM-ZLB/XC6BM-ZLLB | ||
Diesel engine power |
135KW/165KW | Diesel Engine Rated Speed | 3000r/min |
Type |
In line, water-cooled, four stroke | Minimum speed of empty vehicle | 850±50r/min |
Intake Type |
Turbocharge | Cyinder Quantity | 6 |
Burning pattern |
direct injection | Cylinder working sequence | 1-5-3-6-2-4 |
| Bore*stroke (mm) |
105*130mm | lubrication method | Pressure and Splash Composite |
| Cylinder liner type | wet type | cooling method | Closed forced water cooling |
| Displacement | 6.75L | Direction of crankshaft rotation (viewed from the flywheel end) |
counterclockwise |
| Compression Ratio | 16:1 | speed regulation method | mechanical speed regulation |
| noise | ≤107dB(A) | Startup method | Electric starter 24V |
| Oil consumption rate | ≤1.63g/kw.h | Fuel consumption rate | ≤218g/KW. h |
| Net mass (flywheel end stop) |
580kg | Dimensions (end of flywheel housing) length * width * height | 1475*680*1045 |
| Diesel Fuel | 0# diesel oil; the smoke emission at rated working conditions meets environmental protection requirements. | ||
 |
|||
