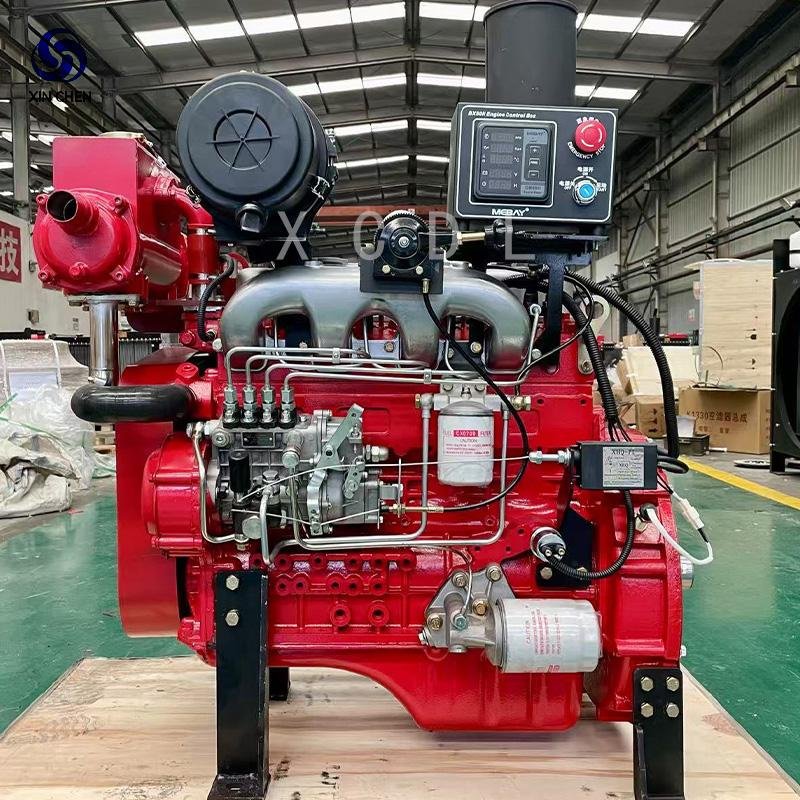

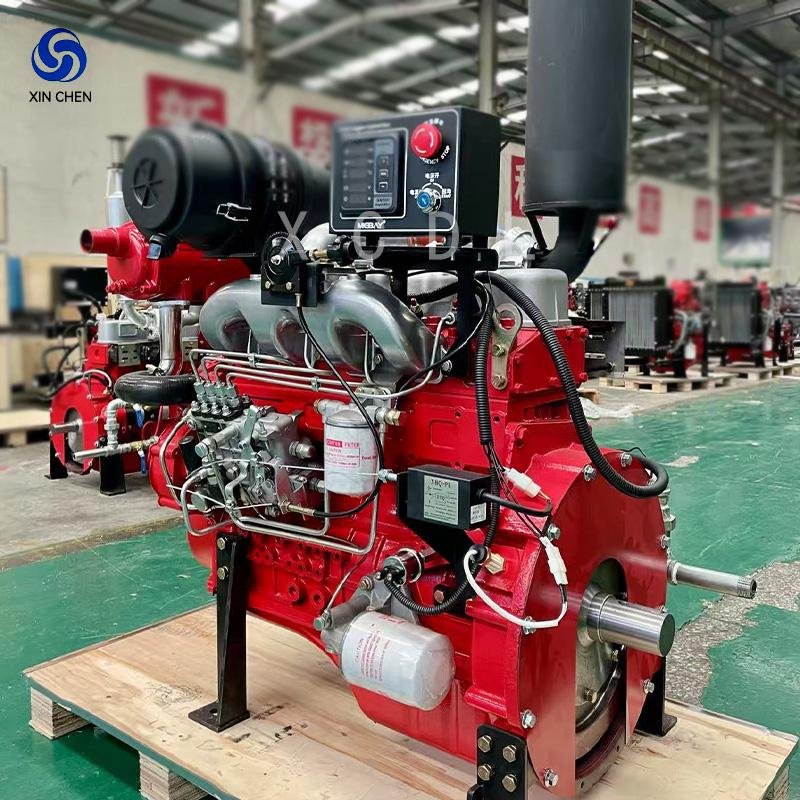

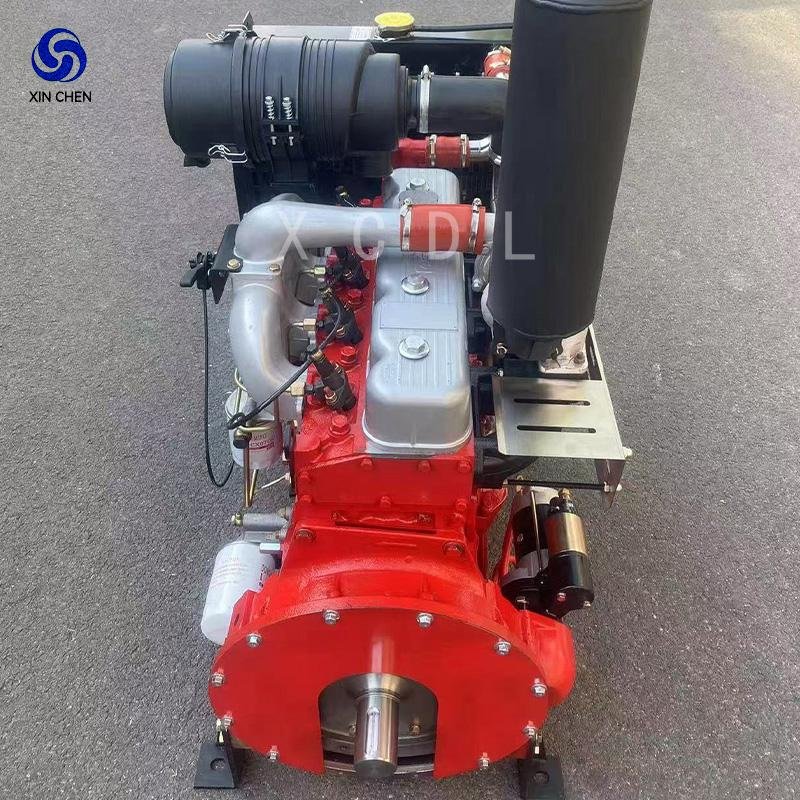

4BD-ZL 136HP 100KW high stability 3000RPM four cylinder water-cooled machinery diesel engine for fire water pump system

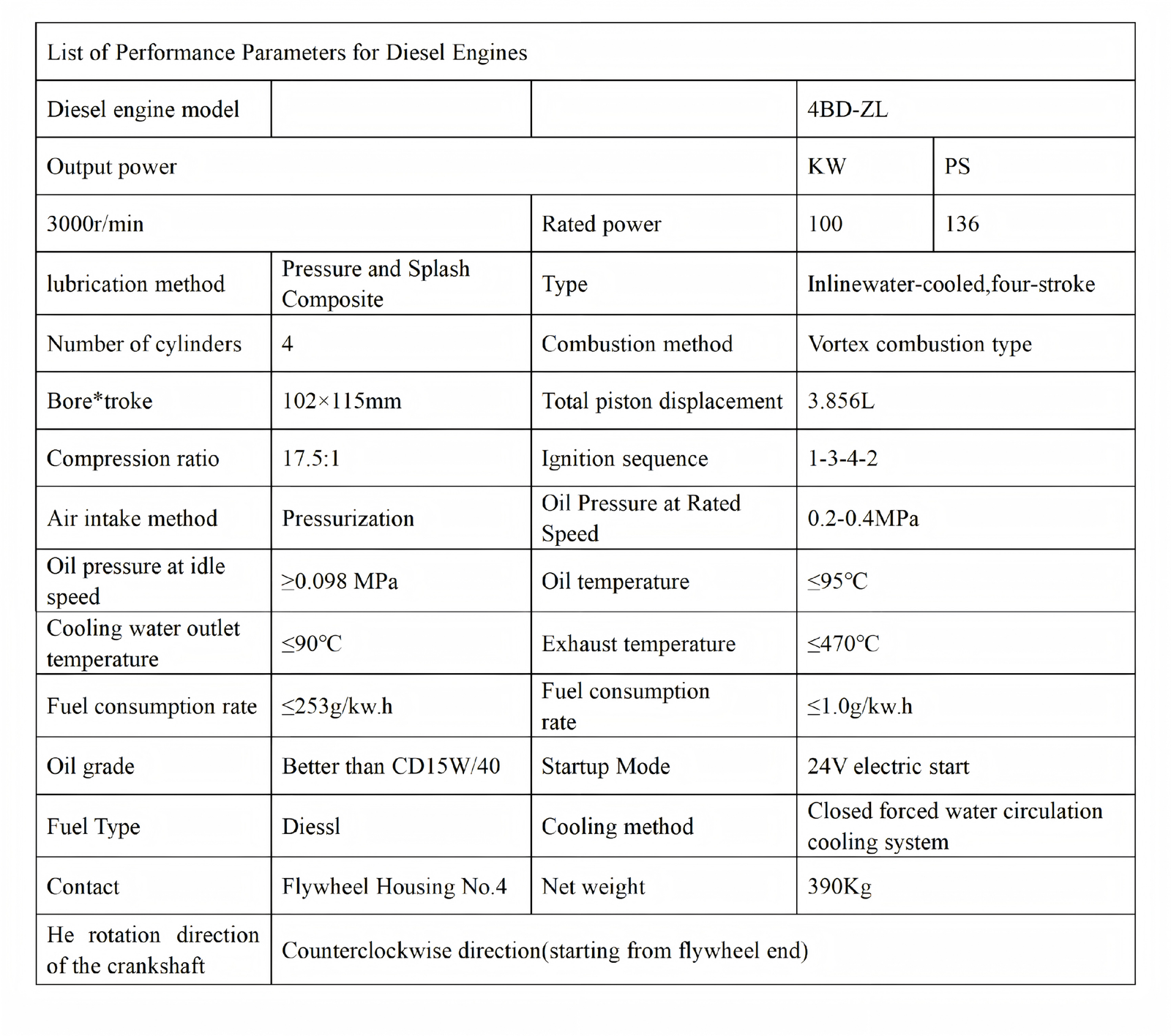

List of diesel engine performance parameters
Diesel engine model 4BD-ZL
Output power KW HP
3000r/min Rated power 100 136
Minimum no-load stable speed 750r/min Type
   		 Inline, water-cooled, four-stroke

Number of cylinders		 4 Burning method eddy Burning chamber
 Bore × stroke 102×115mm Total piston displacement 3.856L
 Shrinkage ratio 17.5:1 Ignition sequence 1-3-4-2

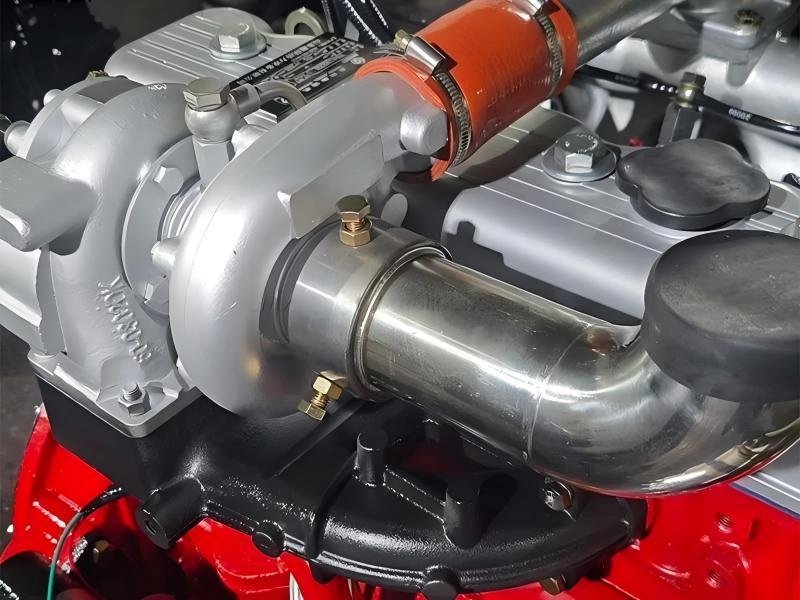

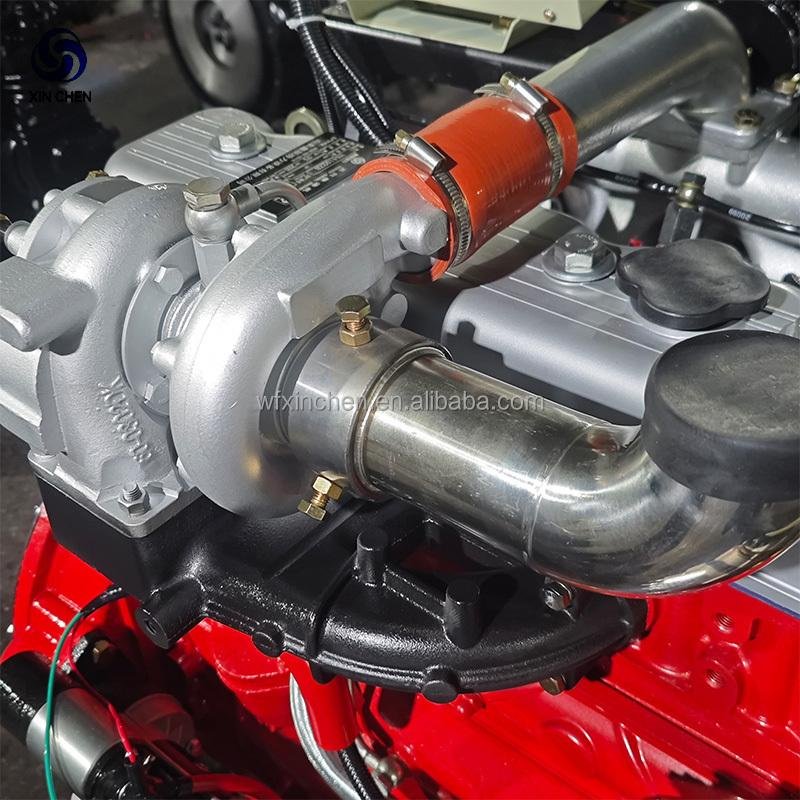

 Air intake method supercharge Calibrated speed oil pressure 0.2-0.4MPa
 Oil pressure at idling ≥0.098 MPa Oil temperature ≤95℃
Cooling water outlet temperature ≤90℃ Exhaust temperature ≤470℃
Fuel consumption rate ≤253g/kw.h Fuel consumption rate ≤1.0 g/kw.h
Oil grade Better than CD15W/40  Activation Method: 24V Electric start
Fuel Type: diesel fuel Cool the way Closed forced water circulation cooling system

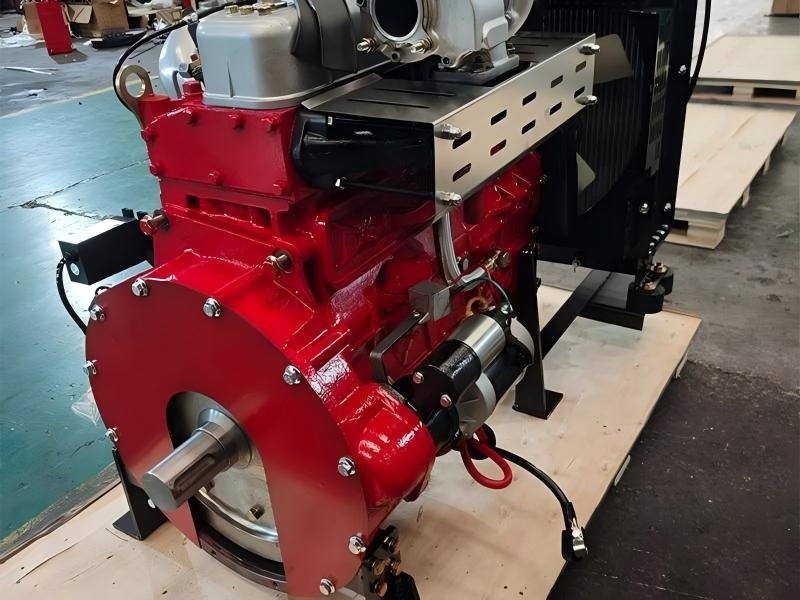

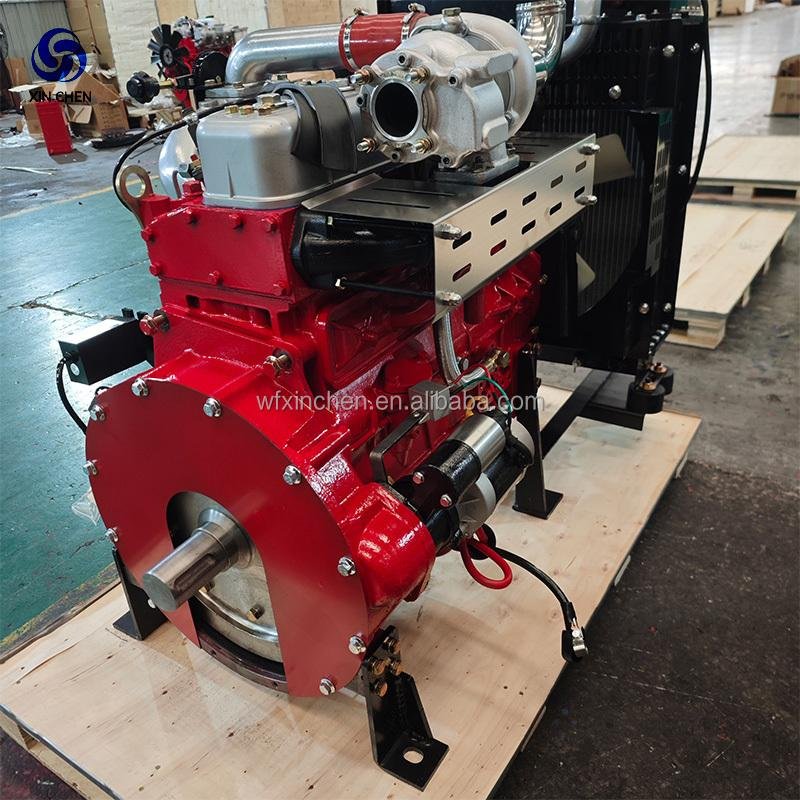

Connection 4# flywheel housing Net weight 342kg
 The direction of rotation of the crankshaft Counterclockwise (from flywheel end)
