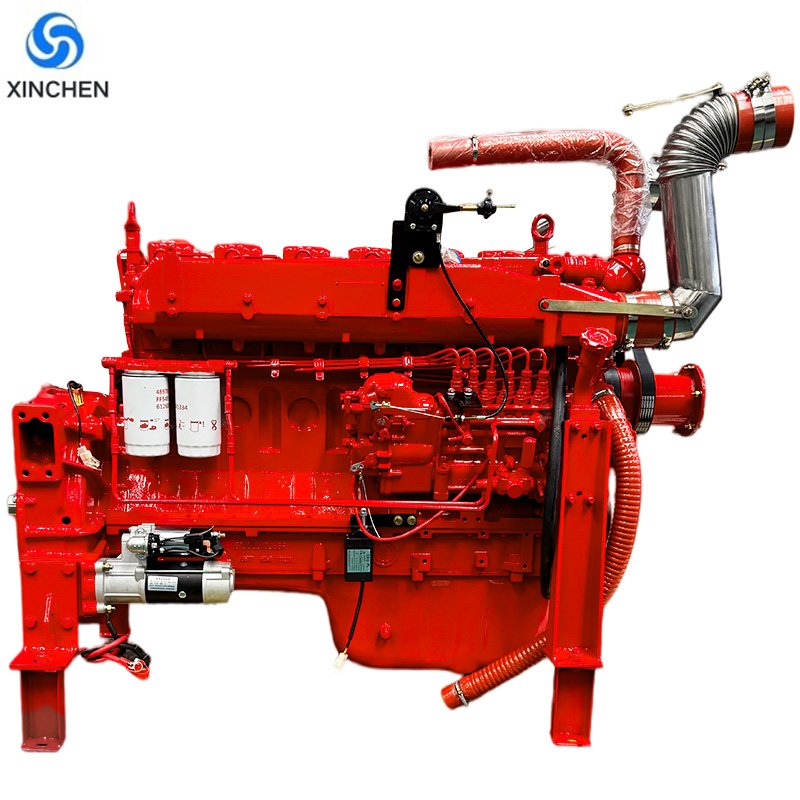

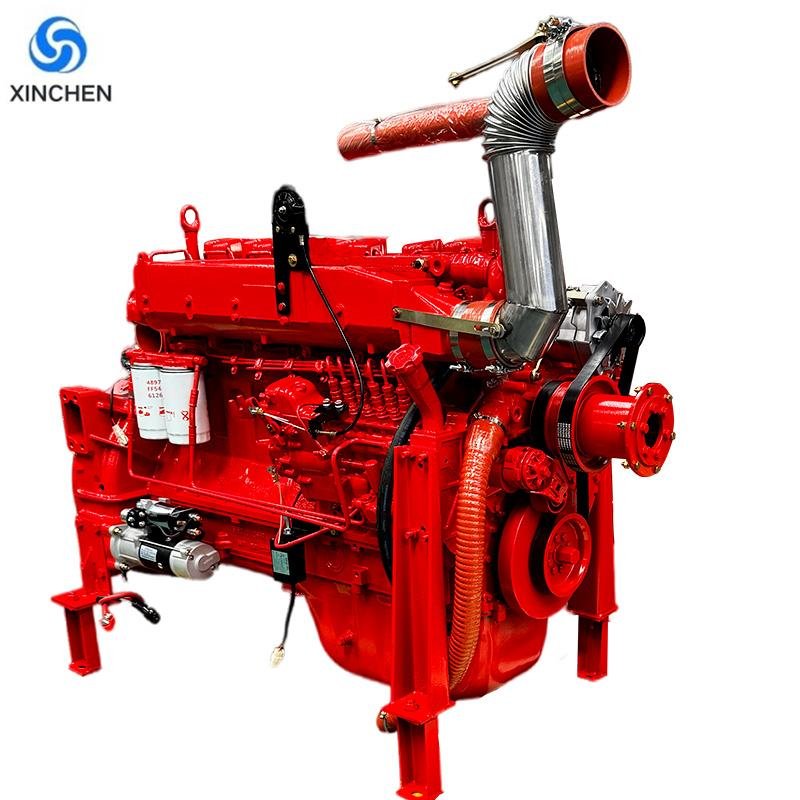

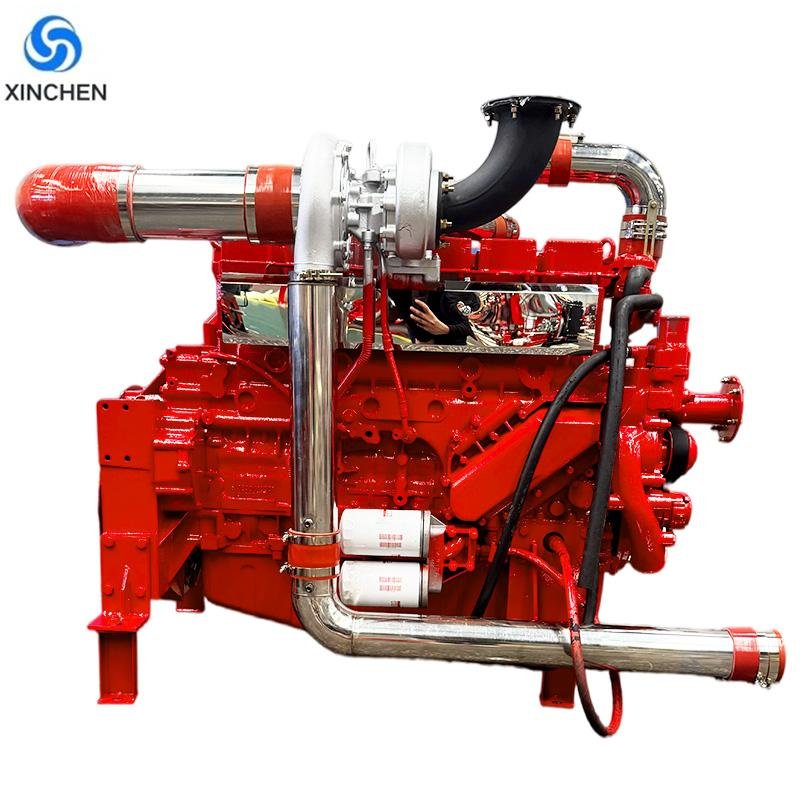

Fire Power Series Xcp13zlb450 330kw 449HP Six-Cylinder Water-Cooled Diesel Engine
|
XCP10ZLB200/XCP12ZLB360/XCP13ZLB450 Technical Parameters
|
|||
|
MOdel |
XCP10ZLB200/XCP12ZLB360/XCP13ZLB450
|
||
|
Diesel engine power |
230KW/280KW/330KW
|
Diesel Engine Rated Speed
|
3000r/min
|
|
Type |
In line, water-cooled, four stroke
|
Minimum speed of empty vehicle
|
850±50r/min
|
|
Intake Type
|
Intercooled supercharging
|
Cyinder Quantity
|
6
|
|
Burning pattern
|
Direct injection
|
Cylinder working sequence
|
1-5-3-6-2-4
|
|
Bore*stroke
(mm) |
126*155mm
|
lubrication method
|
Pressure and Splash Composite
|
|
Cylinder liner type
|
Wet type
|
cooling method
|
Closed forced water cooling
|
|
Displacement
|
11.5L/12.35L/12.54L
|
Direction of crankshaft rotation
(viewed from the flywheel end) |
Counterclockwise
|
|
Compression Ratio
|
17:1
|
speed regulation method
|
Mechanical speed regulation
|
|
noise
|
≤107dB(A)
|
Startup method
|
Electric starter 24V
|
|
Oil consumption rate
|
≤1.68g/KW. h
|
Fuel consumption rate
|
≤226g/KW. h
|
|
Net mass
(flywheel end stop) |
950kg
|
Dimensions (end of flywheel housing) length * width * height
|
1910*1150*1850
|
|
Diesel Fuel
|
0# diesel oil; the smoke emission at rated working conditions meets environmental protection requirements.
|
||
 |
|||
