Weichai Open Frame Generator Set 100KW 125KVA 50HZ/60HZ High Quality Low Fuel Consumption Full Power
Model XC100GF Rated output power (KVA/KW) 125/100 Rated output current (A) 180 Mode of connection Three phase four wire Power factor 0....
Category weichai diesel generator set
Keywords diesel generator, generator set, weichai generator set, 100KW diesel generator, Open Frame Generator
Email Now
Call Us / Whatsapp

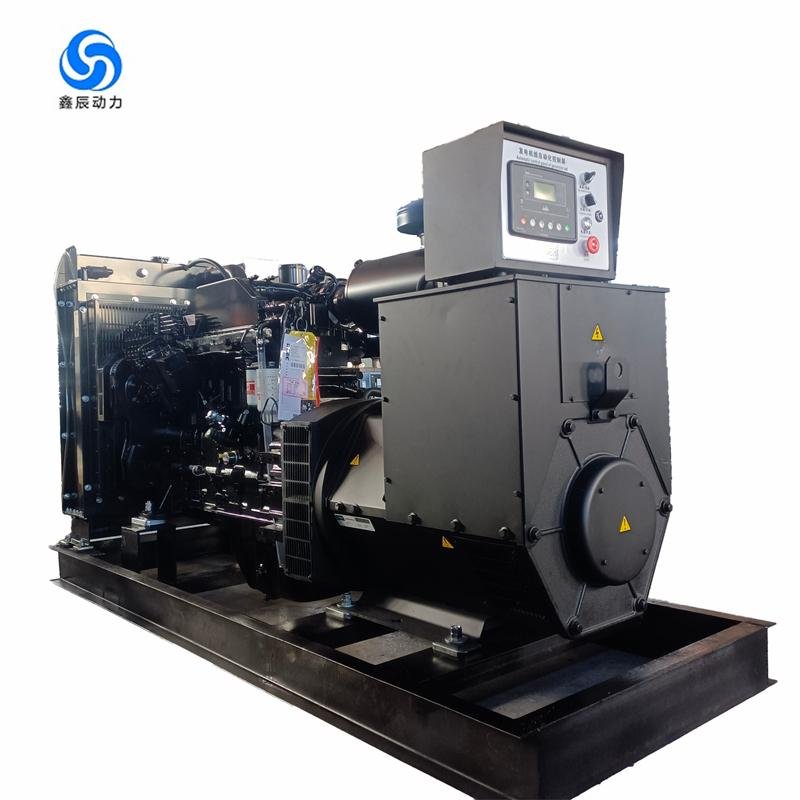

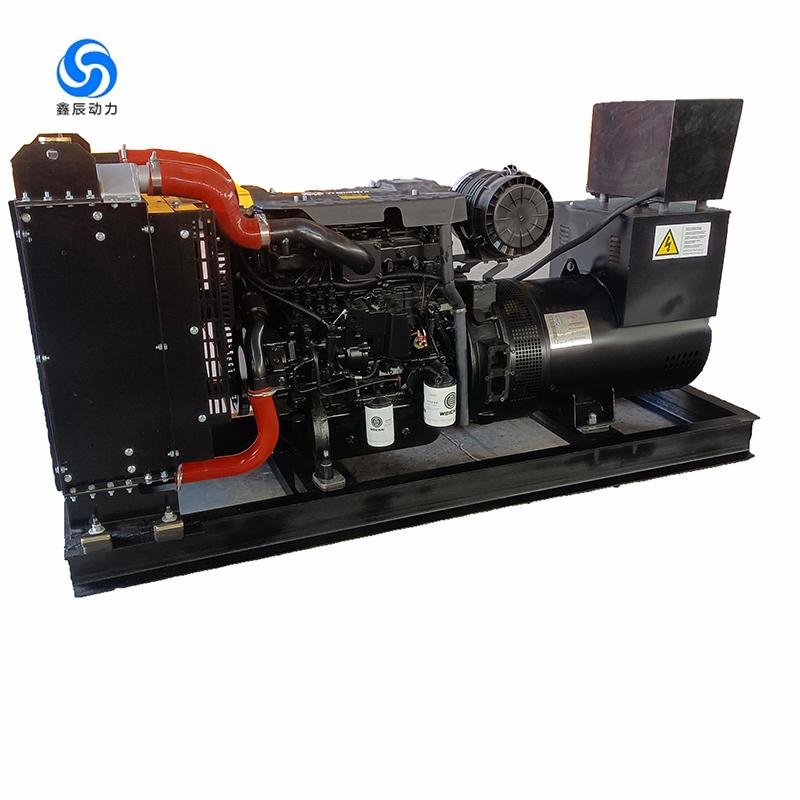

Weichai Open Frame Generator Set 100KW 125KVA 50HZ/60HZ High Quality Low Fuel Consumption Full Power
| Model | XC100GF | ||
| Rated output power (KVA/KW) | 125/100 | Rated output current (A) | 180 |
| Mode of connection | Three phase four wire | Power factor | 0.8 (lag) |
| Starting mode | 24V DC start | Frequency (Hz) | 50 |
| Engine brand | WEICHAI | Type | WP6D132E200 |
| Rated speed (rpm) | 1500 | Maximum engine power (KW) | 132 |
| Engine cooling method | water cooled | Number of cylinders | 6 |
| Generator brand | Stanford (Shanghai) | Model | STF274-100 |
| Power (KVA/KW) | 125/100 | Levels of protection | IP23 |
| Insulation grade | H | Efficiency (%) | 98.6 |
| No-load voltage adjustment range | ≥±5% | Voltage control mode | AVR |
