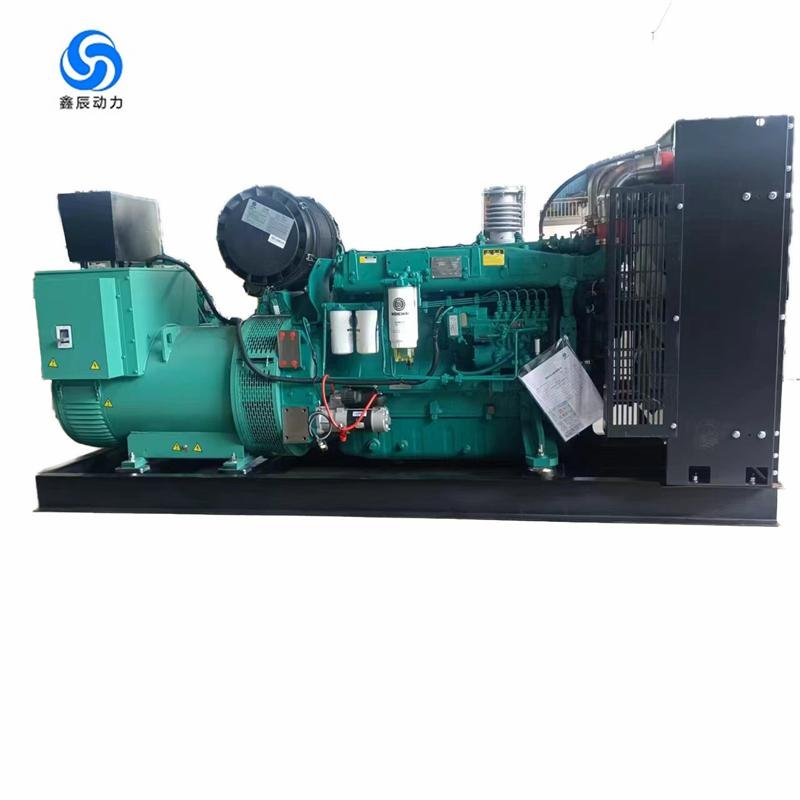

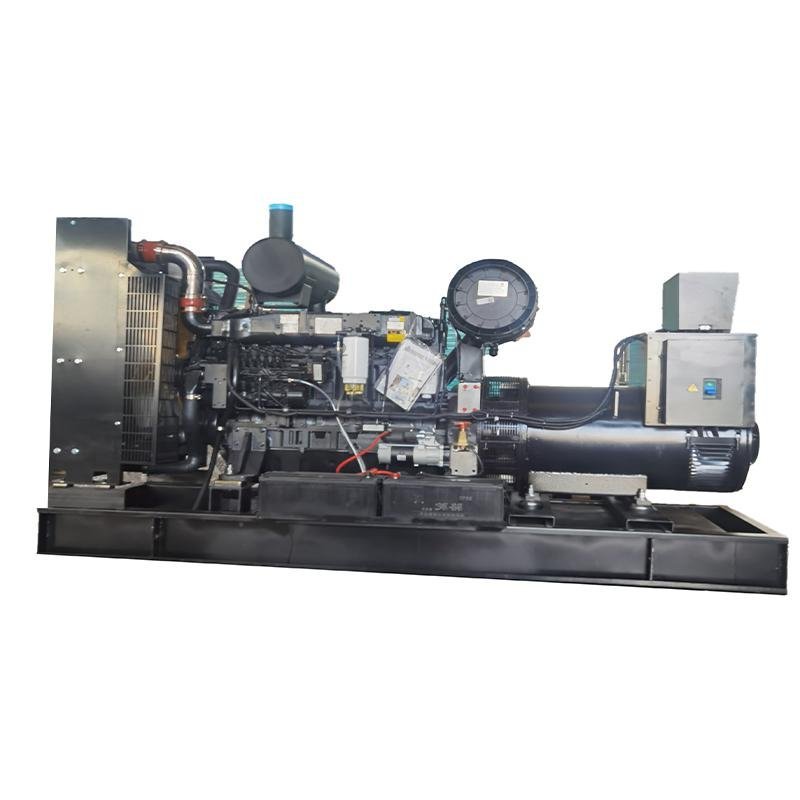

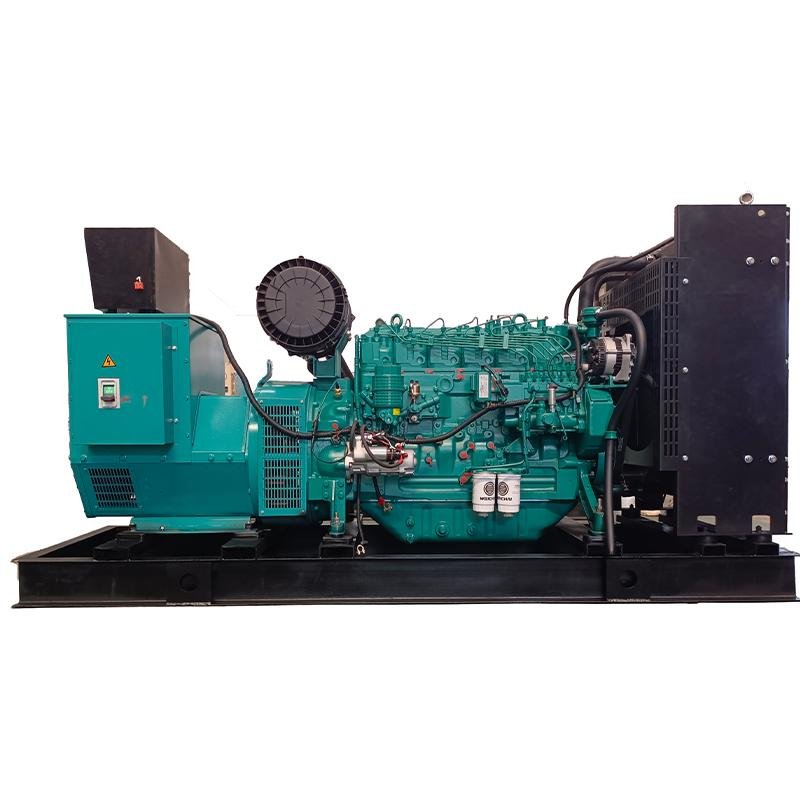

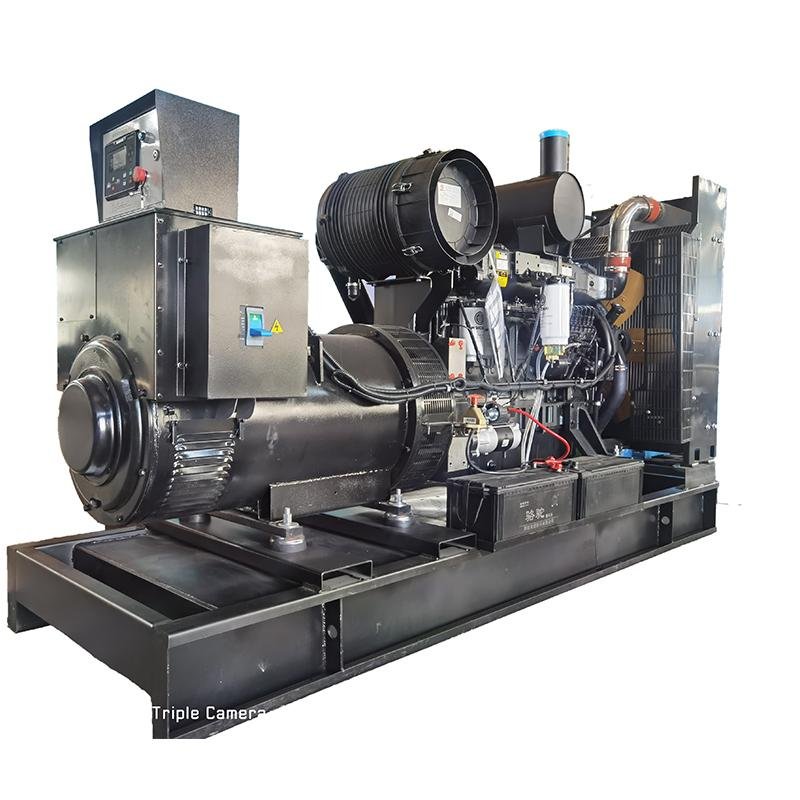

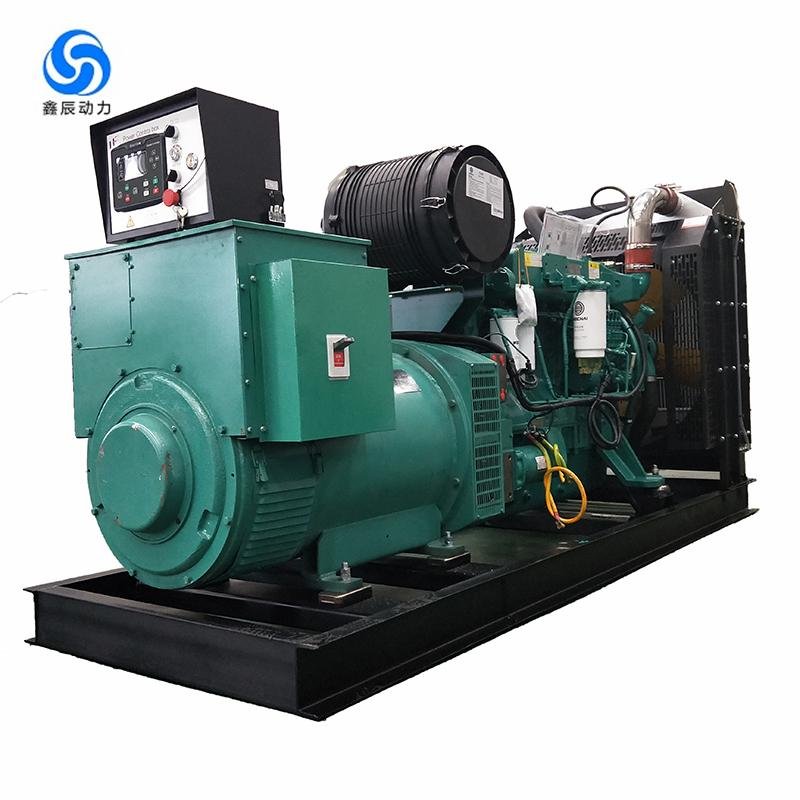

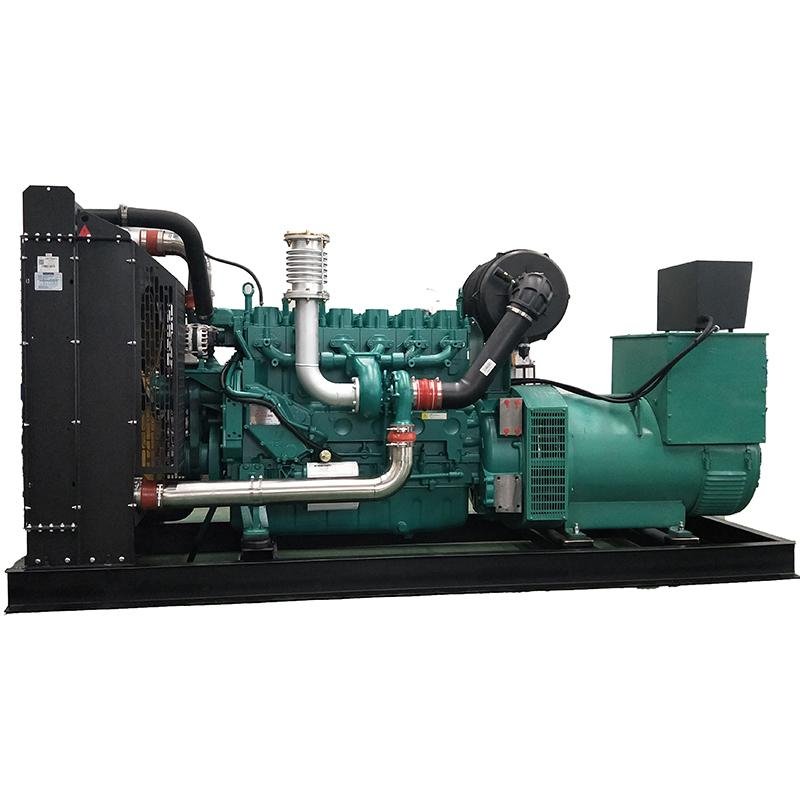

Weichai 300KW375KVA diesel generator set open-rack soundbox mobile trailer ATS50/60HZ optional

Parameter Category

Parameter Name

Unit

Specification

Genset Technical Data

Generator Set Model

-

DC-300GF

Prime Power

KW

300

Prime Power

KVA

375

Output Voltage/Frequency

V/Hz

400/230 / 50

Rated Speed

r/min

1500

Phases/Lines

-

3-phase 4-wire

Noise Limit

dB

≤117

Maximum Output Current

A

540

Fuel Consumption (100% Load)

g/(kW·h)

≤198

Genset Dimensions (L×W×H)

mm

2600×950×1700

Genset Weight

kg

2200

Engine Technical Data

Engine Model

-

WP10D353E200

Engine Brand

-

Weichai

Engine Power

KW

353

Engine Type

-

Vertical, Inline, Water-cooled, Four-stroke

Injection Type

-

Direct Injection

Intake Way

-

Turbocharged Inter-cooled

Number of Cylinders

-

6

Bore × Stroke

mm

126×165

Displacement

L

12.54

Compression Ratio

-

16:1

Oil Capacity

L

≈25

Connection Type

-

Rigid Connection

Emission Standard

-

T2

Starting Way

-

24V DC Electric Start

Governor Type

-

Electronic Governor

Applicable Altitude

m

≤2500

Radiator Specification

-

Aluminum Radiator Core, 40℃ Ambient Temperature, Suitable for Open/Silent Type Gensets, Side-mounted

Alternator Specifications

Alternator Model

-

YHB-300

Alternator Brand （

-

Shanghai Stanford

Rated Power

KW

300

Number of Bearings

-

Single Bearing

Protection Grade

-

IP22

Exciter Type

-

Compound Excitation

Voltage Regulation Mode

-

AVR Automatic Voltage Regulation

Insulation Class

-

H

Telephone Interference Factor (TIF)

-

≤50

Telephone Harmonic Factor (THF)

%

≤2

Steady State Voltage Regulation

%

≤±0.5

Transient State Voltage Regulation

%

≤+20～-15

Voltage Fluctuation Rate

%

≤±0.5

Steady State Frequency Regulation

%

≤±0.5

Transient Frequency Regulation

%

≤+10～-7

Optional Alternator Brands

-

Customizable upon Request
