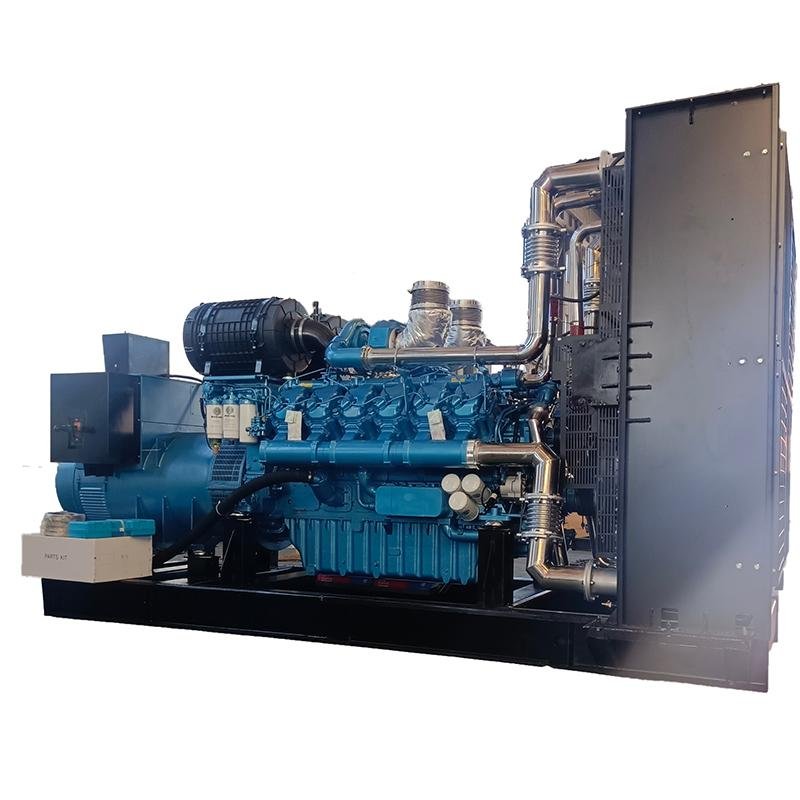

Weichai 1500KW1875KVA diesel generator set open-rack soundbox mobile trailer ATS50/60HZ optional
Category Parameter Specification Diesel Generator Set Data Model XC1500GF Outp...
Category weichai diesel generator set
Keywords 1500KW generators, 1875KVA generators set, weichai generators, silent generator sets, diesel generator
Email Now
Call Us / Whatsapp

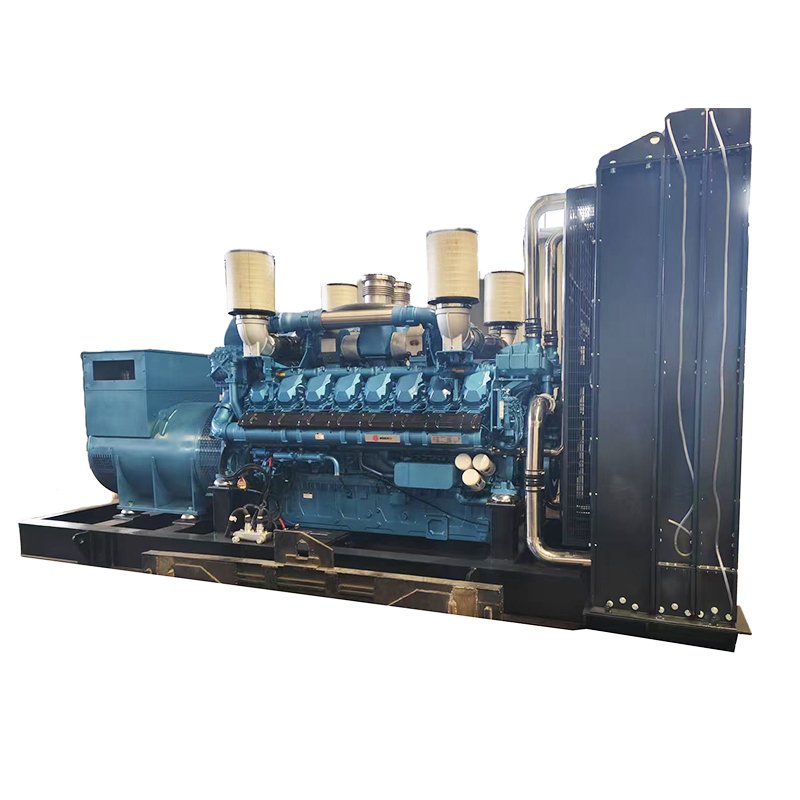

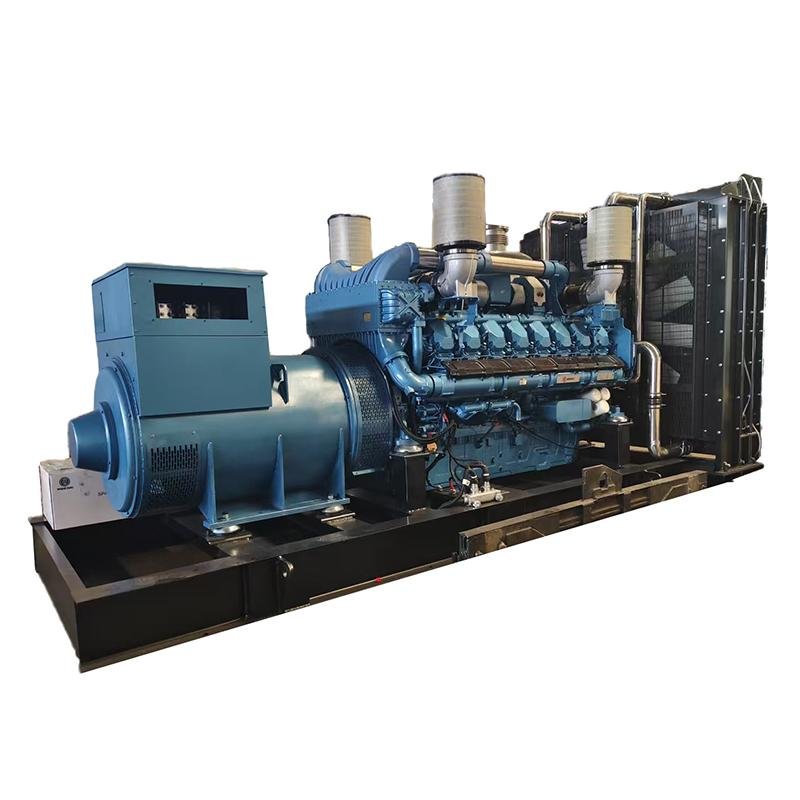

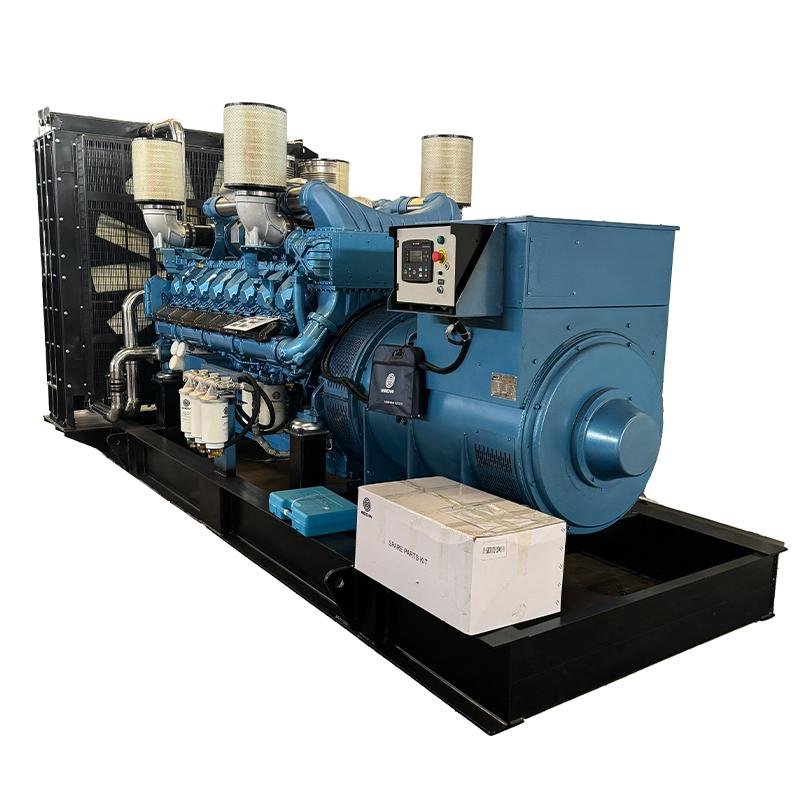

Weichai 1500KW1875KVA diesel generator set open-rack soundbox mobile trailer ATS50/60HZ optional
|
Category |
Parameter |
Specification |
|
Diesel Generator Set Data |
Model |
XC1500GF |
|
Output Rating |
1875 KVA / 1500 KW |
|
|
Rated Output Current |
2700 A |
|
|
Non-firm Power |
1650 KW |
|
|
Output Voltage |
400 / 230 V |
|
|
Speed |
1500 Rpm |
|
|
Fuel Consumption |
215 g/(Kw·h) (No. 0 diesel recommended) |
|
|
Mode of Connection |
Three phase four wire |
|
|
Power Factor |
0.8 (Lagging) |
|
|
Starting Mode |
24V DC electric start |
|
|
Frequency |
50 Hz |
|
|
Unit Weight |
15000 kg |
|
|
Unit Size (Length*Width*Height) |
5800*2500*2800 mm |
|
|
Diesel Engine Data |
Manufacturer/Vendor |
Weichai Power Co., Ltd. |
|
Model |
16M33D1650E310 |
|
|
Rated Speed |
1500 Rpm |
|
|
Maximum Engine Power |
1650 KW |
|
|
Number of Cylinders/Valves |
16/64 |
|
|
Distribution Type of Cylinder |
V-type |
|
|
Cylinder Diameter & Stroke |
170*220 mm |
|
|
Displacement |
79.2 L |
|
|
Fuel System Type |
Common Rail + Electronic Governor |
|
|
Type of Air Intake |
Turbocharged Inter-cooling |
|
|
Compression Ratio |
15.5:1 |
|
|
Engine Cooling Method |
Radiator suitable for 40℃ ambient temperature, belt-driven cooling fan with safety shield |
