Category Parameter Specification Diesel Generator Set Data Model XC1000GF Output Rating 1250 KVA / 1000 KW Rated Output Curr...
|
Category |
Parameter |
Specification |
|

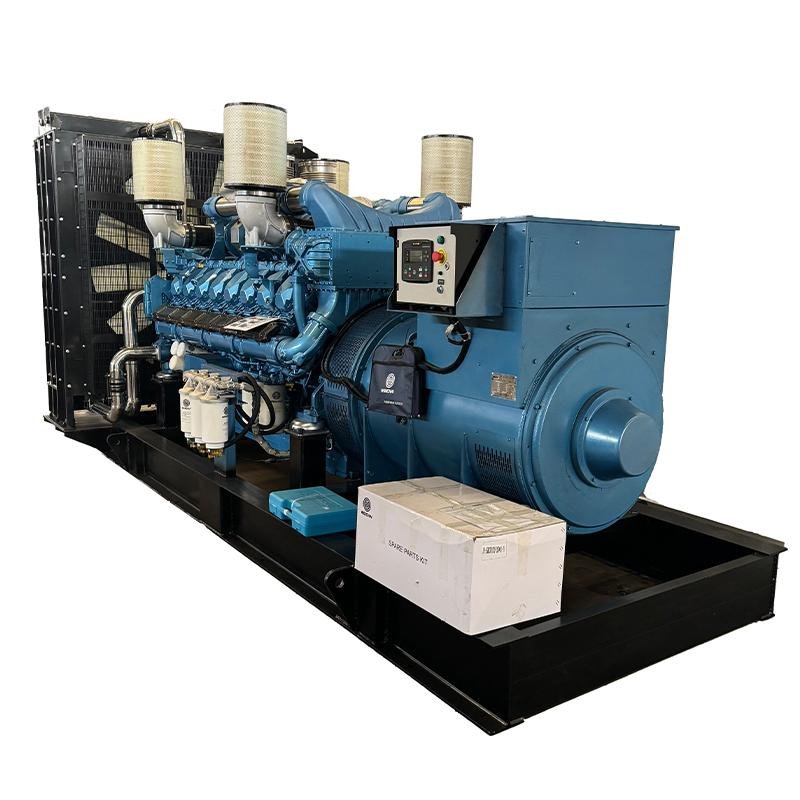

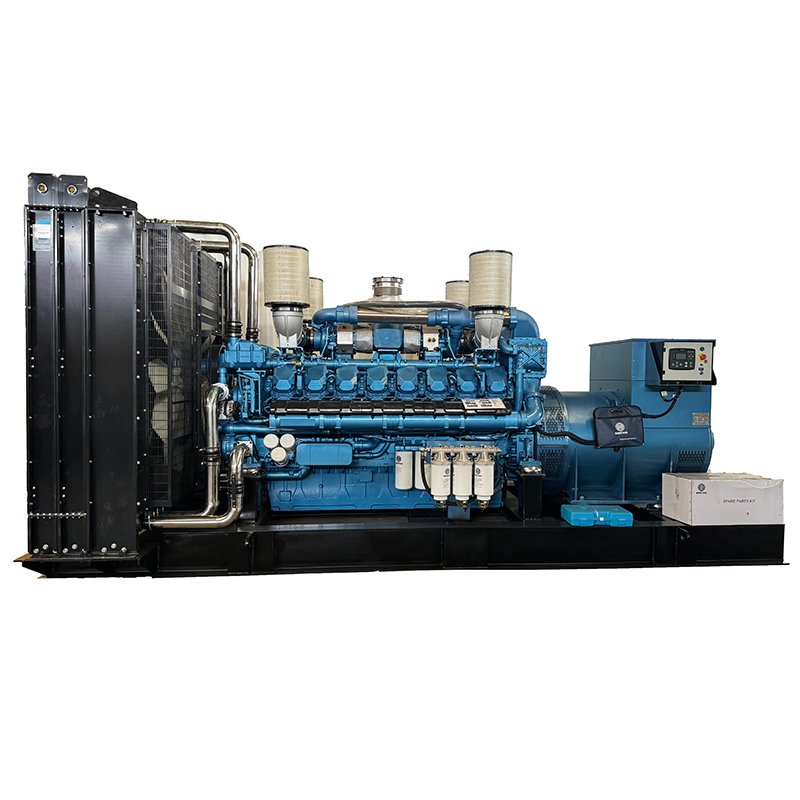

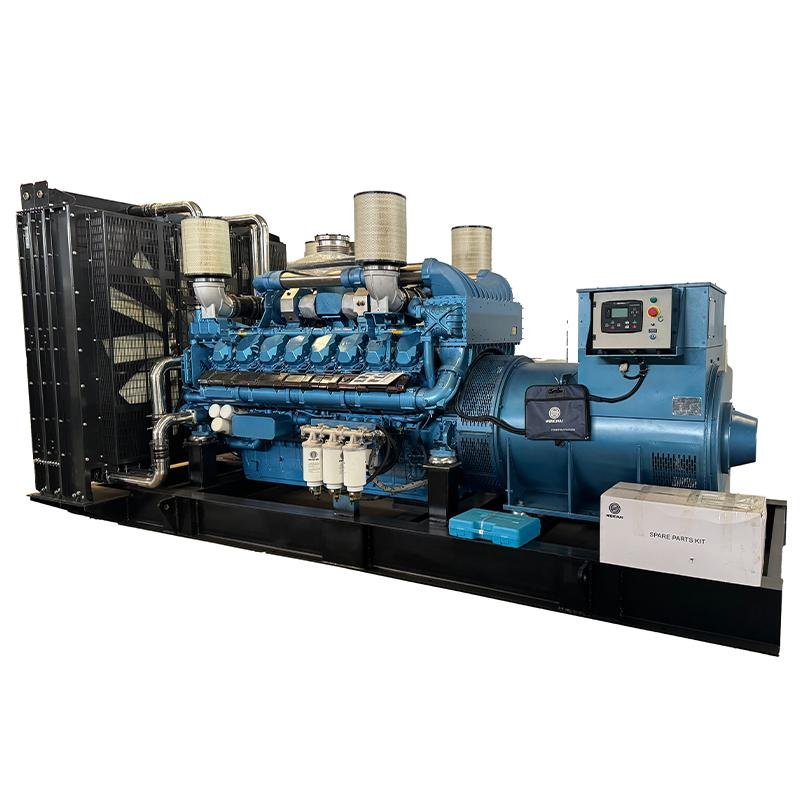

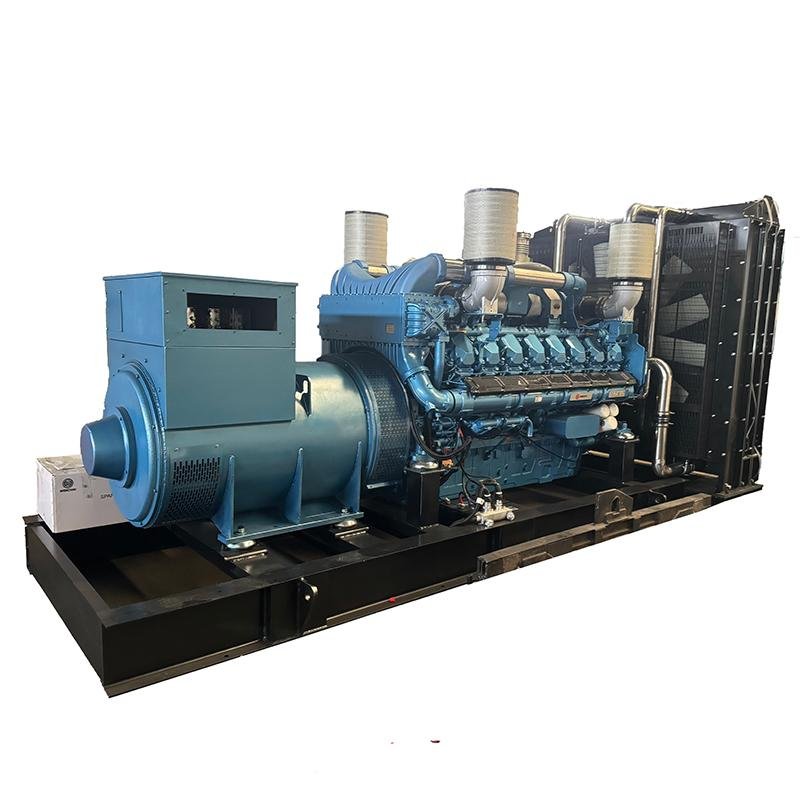

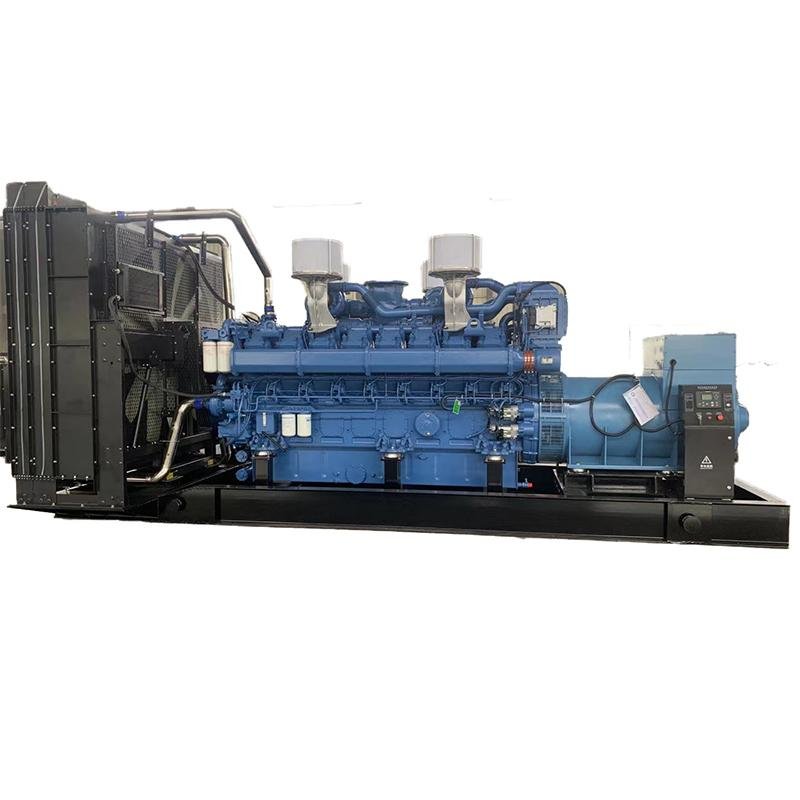

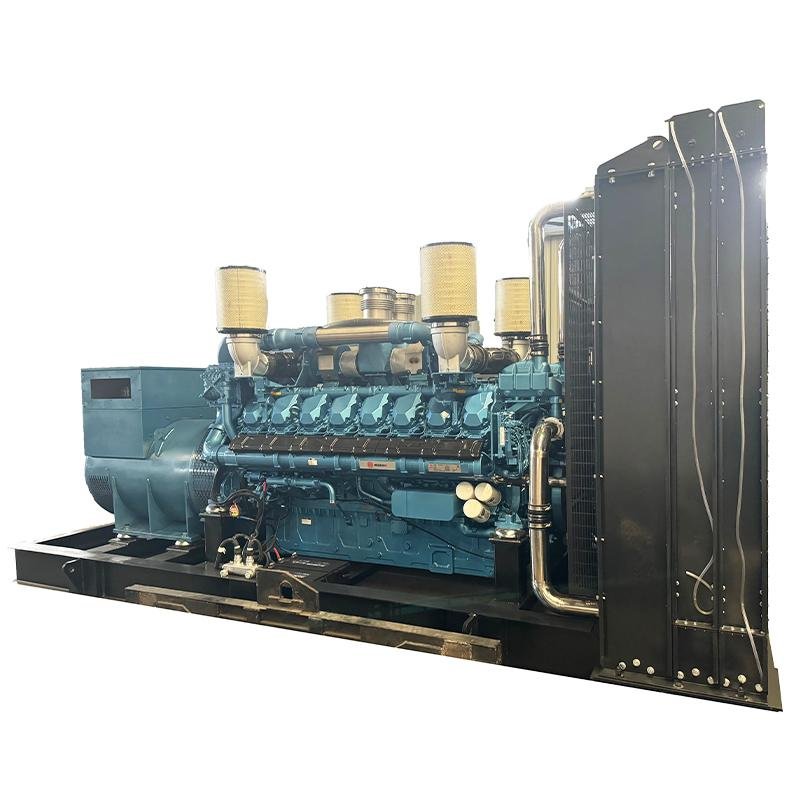

Diesel Generator Set Data |
Model |
XC1000GF |
|
Output Rating |
1250 KVA / 1000 KW |
|
|
Rated Output Current |
1800 A |
|
|
Non-firm Power |
1100 KW |
|
|
Output Voltage |
400 / 230 V |
|
|
Speed |
1500 Rpm |
|
|
Fuel Consumption |
210 g/(Kw·h) (No. 0 diesel recommended) |
|
|
Mode of Connection |
Three phase four wire |
|
|
Power Factor |
0.8 (Lagging) |
|
|
Starting Mode |
24V DC power on |
|
|
Frequency |
50 Hz |
|
|
Unit Weight |
9000 kg |
|
|
Unit Size (Length*Width*Height) |
4600*2100*2450 mm |
|
|
Diesel Engine Data |
Manufacturer/Vendor |
Bo Du'an (Weifang) Power Co., LTD |
|
Model |
12M33D1108E310 |
|
|
Rated Speed |
1500 Rpm |
|
|
Maximum Engine Power |
1210 KW |
|
|
Number of Cylinders/Valves |
12/48 |
|
|
Distribution Type of Cylinder |
V-type |
|
|
Cylinder Diameter & Stroke |
150*185 |
|
|
Displacement |
39.2 L |
|
|
Fuel System Type |
Mechanical Pump + Electronic Governor |
|
|
Type of Air Intake |
Turbocharged Inter-cooling |
|
|
Compression Ratio |
15:1 |
|
|
Oil and Fuel Consumption Ratio |
≤0.3 % |
|
|
Engine Cooling Method |
Radiator suitable for 40℃ ambient temperature, belt-driven cooling fan with safety shield |
