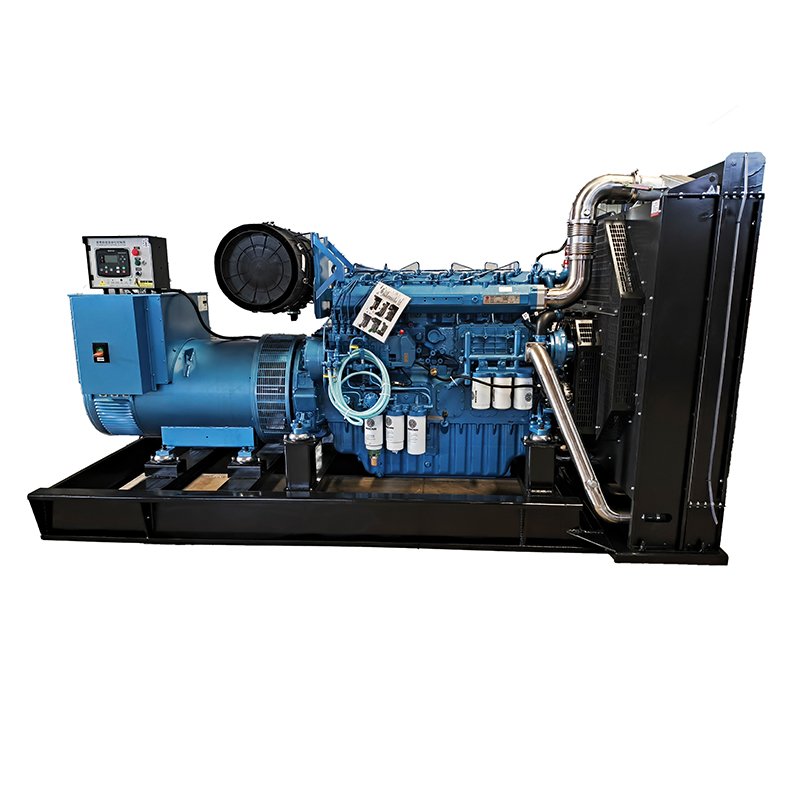

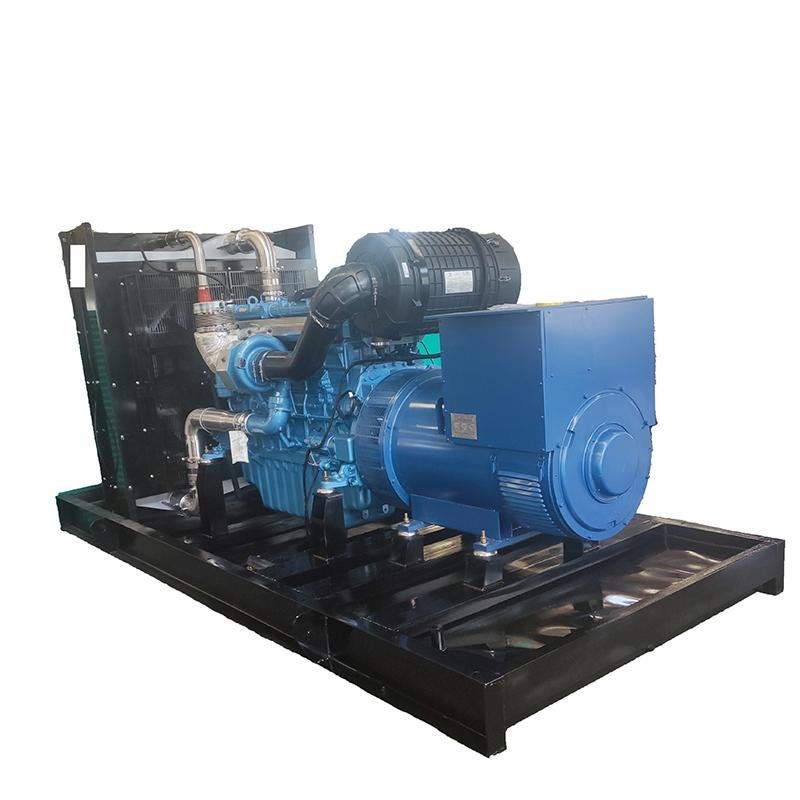

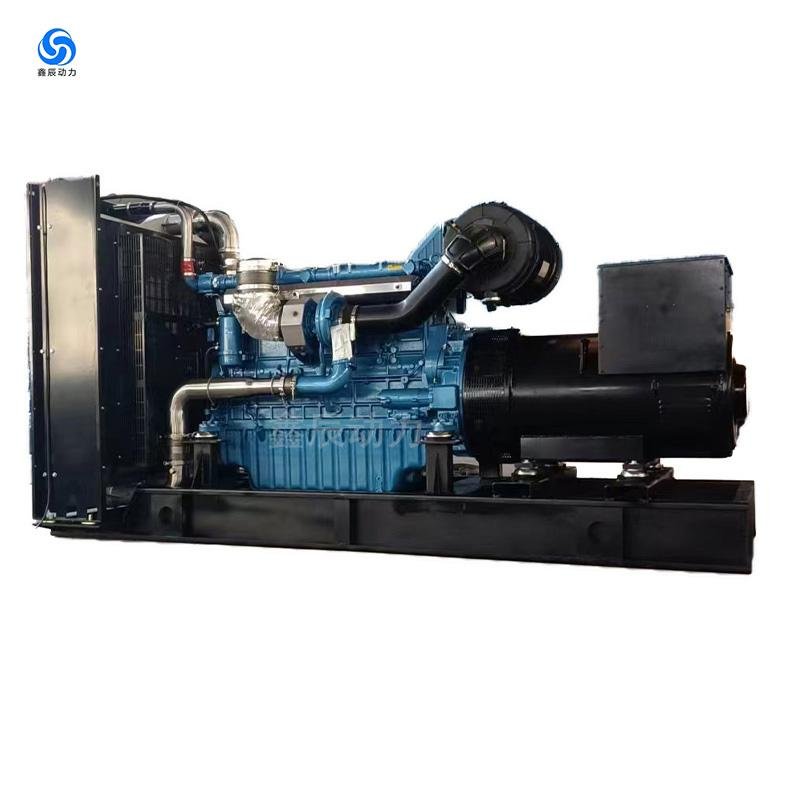

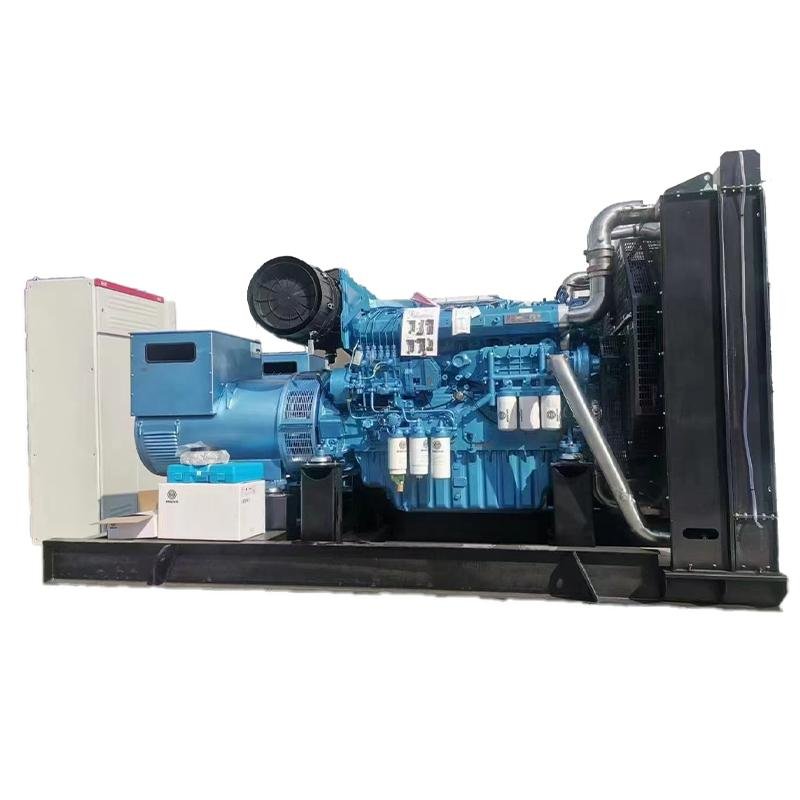

Weichai 500KW600KVA diesel generator set open-rack soundbox mobile trailer ATS50/60HZ optional
Unit model Generator set model DC-500GF Power (KW) Prime power Kilowatt (KW) 500 Power (KVA) Prime power Kilovolt-a...
Category Diesel Engine
Keywords 500KW GENERATOR, 600KVA GENERATOR, WEICHAI GENERATOR, SILENT GENERATOR, DIESEL GENERATOR
Email Now
Call Us / Whatsapp
Weichai 500KW600KVA diesel generator set open-rack soundbox mobile trailer ATS50/60HZ optional
|
Unit model |
Generator set model |
|
DC-500GF |
|
Power (KW) |
Prime power |
Kilowatt (KW) |
500 |
|
Power (KVA) |
Prime power |
Kilovolt-ampere (KVA) |
625 |
|
Voltage |
Output voltage |
Volts/Hertz |
400/230V |
|
speed |
Rated speed |
Rotation (r/min) |
1500 |
|
Phase count/line count |
phases /lines |
/ |
3-phase 4-wire |
|
noise |
Noise limit |
Decibel (db) |
≤ 117 |
|
current |
Maximum output current |
Ampere (A) |
900 |
|
fuel consumption |
Fuel Consumption at 100% |
g/(kW·h) |
≤ 198 |
|
size |
Gensets Dimensions |
Millimeter (MM) |
3600*1500*1850 |
|
weight |
Gensets weight |
Kilogram (KG) |
3900 |
|
Engine Technical Data |
|||
|
Engine model |
Engine model |
|
6M33D633E200 |
|
Engine brand |
Engine brand |
|
Weichai |
|
power |
Rated power |
Kilowatt (KW) |
633kw |
|
Engine type |
Engine type |
|
Vertical, inline, water-cooled, four- stroke |
|
Fuel injection form |
Injection Type |
|
Direct Injection |
|
intake method |
Intake way |
|
Turbocharged Inter-cooled |
|
Number of engine cylinders |
No. of Cylinders |
|
6 |
|
Cylinder bore and stroke |
piston stroke |
Millimeter (MM) |
150*185 |
|
Total displacement |
Displacement |
Liters (L) |
19.6 |
|
connection type |
Connection Type |
|
≤ 1 |
|
Startup method |
Starting way |
|
24V DC start |
|
speed regulation method |
Governor Type |
|
Electronic speed regulation |
|
Overall dimensions |
Engine dimension |
Millimeter (MM) |
/ |
|
weight |
Engine Dry Weight |
Kilogram (KG) |
/ |
