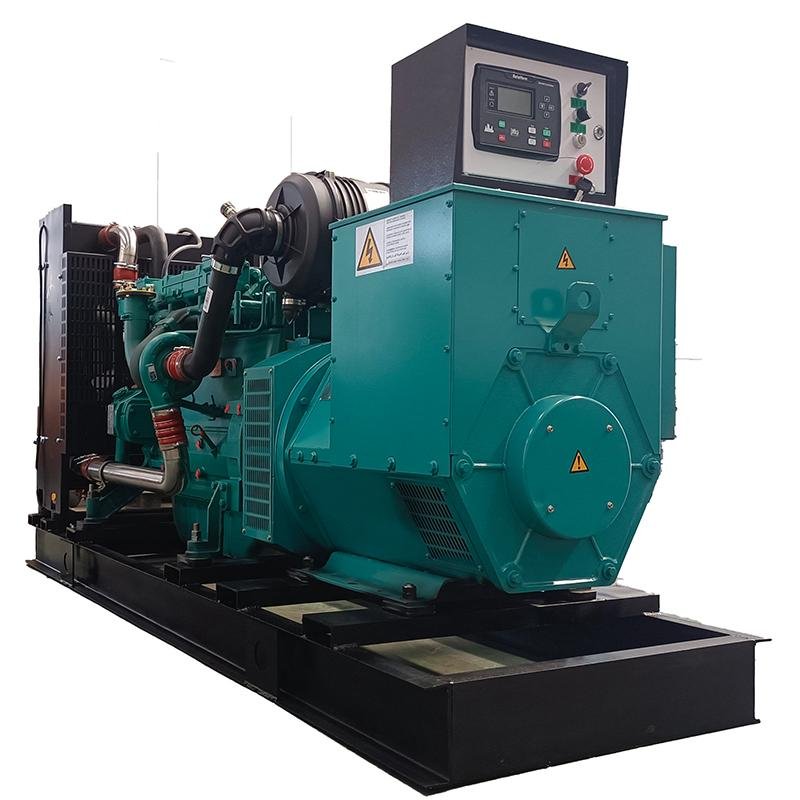

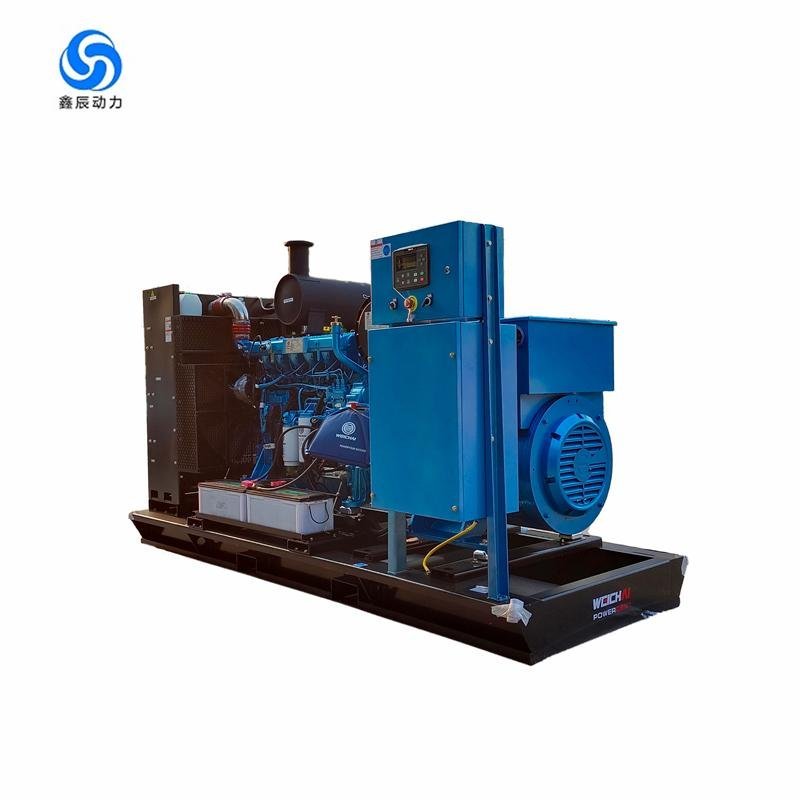

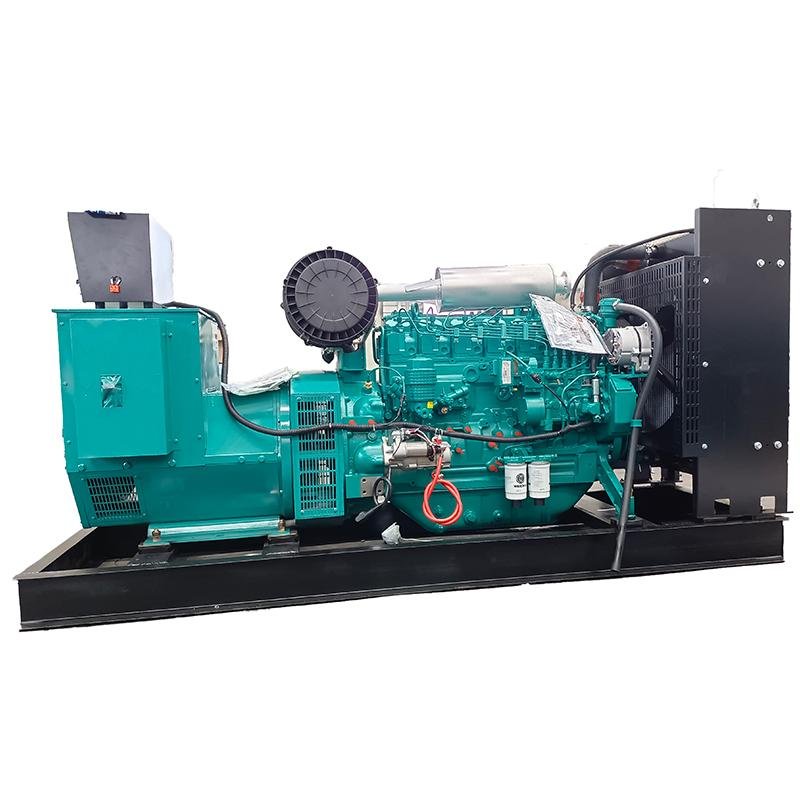

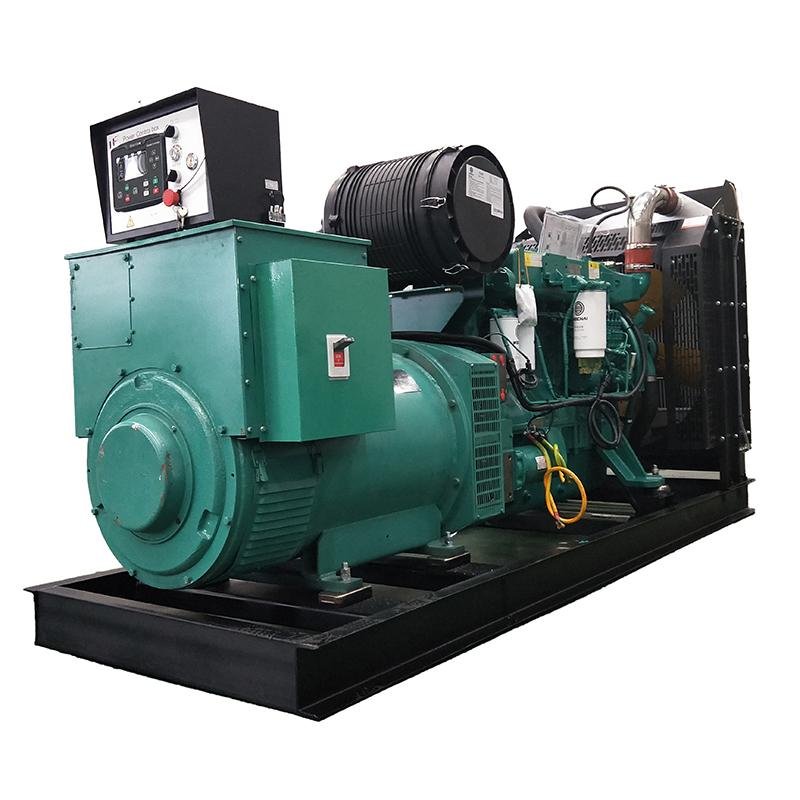

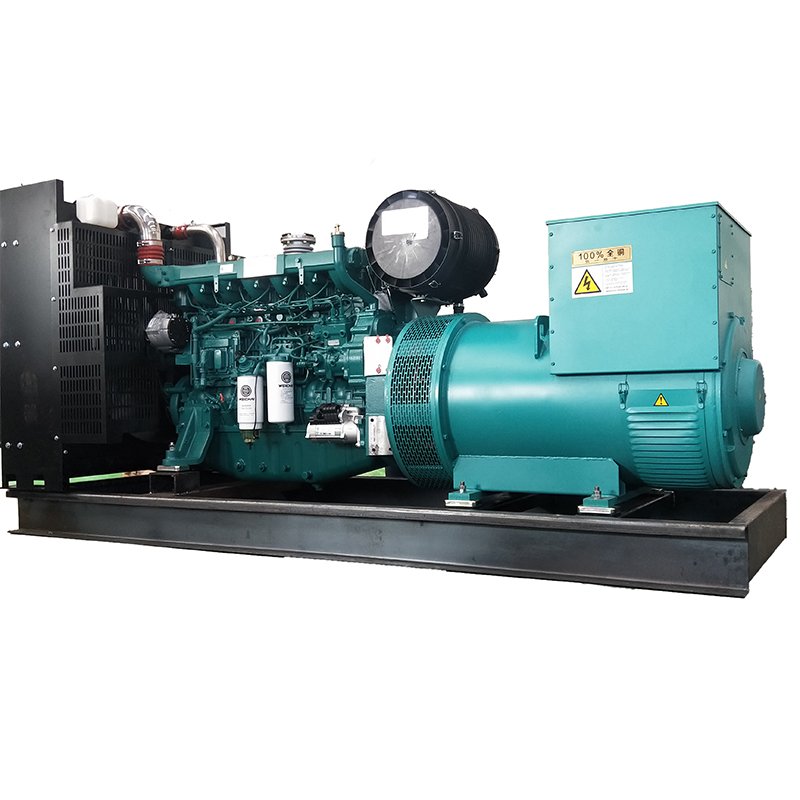

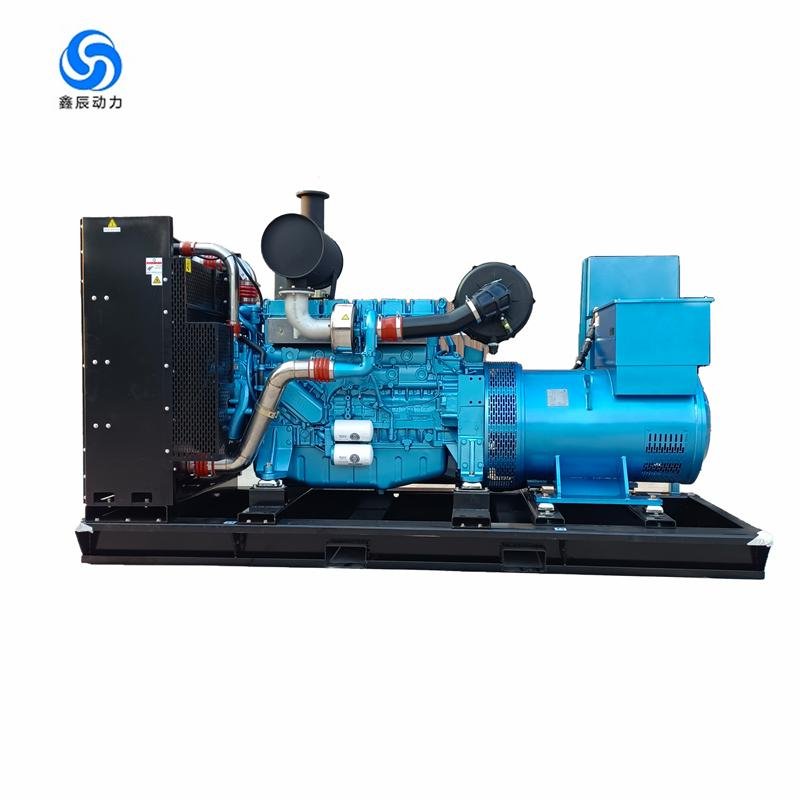

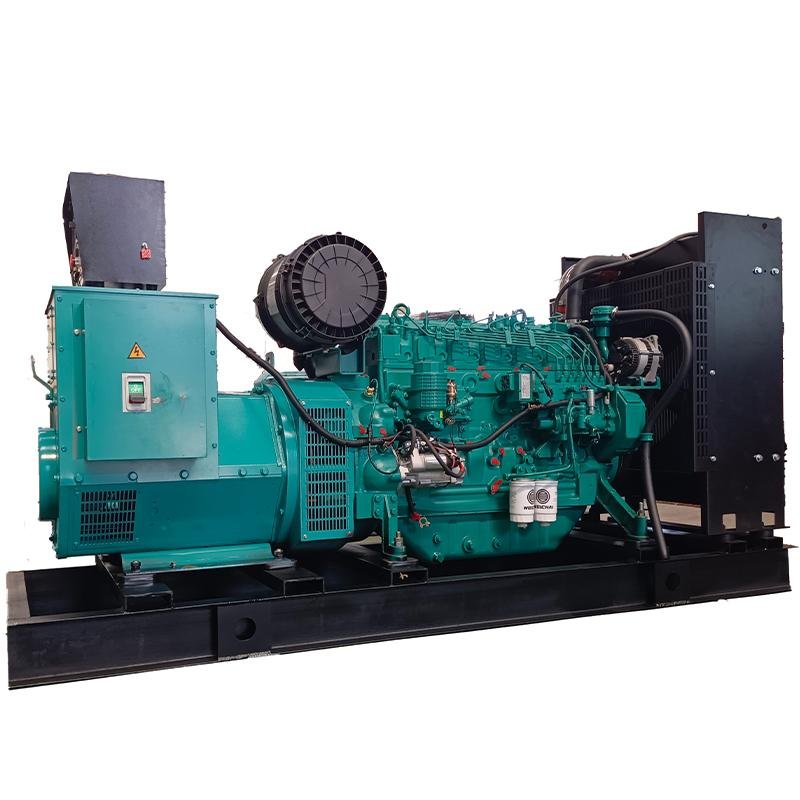

Weichai 400KW500KVA diesel generator set open-rack soundbox mobile trailer ATS50/60HZ optional
| Weichai engine open frame generator set parameters | ||||||||
| Gensets Mode | Power | Engine | Dimensions | Weight | ||||
| Rated Power | Standby Power | Engines Model | Power | Bore*Stroke | cylinder No. | |||
| XC-20J | 20/25 | 22/27.5 | WP3.9CD33E1 | 33 | 102*118 | 4 | 1314*700*1165 | 480 |
| XC-24J-WJ | 24/30 | 26.4/33 | WP3.9CD33E1 | 33 | 102*119 | 4 | 1314*700*1165 | 490 |
| XC-30J-WJ | 30/37.5 | 33/41.25 | WP4.3CD38E1 | 38 | 105*125 | 4 | 1314*700*1165 | 500 |
| XC-40J-WJ | 40/50 | 44/55 | WP4CD66E200 | 60 | 105*130 | 4 | 1750*800*1237 | 1000 |
| XC-50J-WJ | 50/62.5 | 55/68.75 | WP4CD66E200 | 60 | 105*130 | 4 | 1750*800*1237 | 1050 |
| XC-64J-WJ | 64/80 | 70.4/88 | WP4CD10OE200 | 90 | 105*130 | 4 | 1800*800*1237 | 1100 |
| XC-75J-WJ | 75/93.75 | 82.5/103.1 | WP4CD100E200 | 90 | 105*130 | 4 | 1800*800*1237 | 1200 |
| XC-90J-WJ | 90/112.5 | 99/12375 | WPBCD132E200 | 120 | 105*130 | 6 | 2212*820*1336 | 1390 |
| XC-100J-WJ | 100/125 | 110/137.5 | WPBCD132E200 | 120 | 105*130 | 6 | 2212*820*1336 | 1430 |
| XC-120J-WJ | 120/150 | 132/165 | WPBCD152E200 | 138 | 105*130 | 6 | 2250*820*1336 | 1450 |
| XC-150J-WJ | 150/187.5 | 165/206.25 | WP10CD200E200 | 182 | 126*130 | 6 | 2540*1000*1572 | 1950 |
| XC-180J-WJ | 180/225 | 198/247.5 | WP10CD238E200 | 216 | 126*130 | 6 | 2540*1000*1572 | 2000 |
| XC-200J-WJ | 200/250 | 220/275 | WP10CD264E200 | 240 | 126*130 | 6 | 2540*1000*1572 | 2050 |
| XC-250J-WJ | 250/312.5 | 275/343.75 | WP12CD317E200 | 288 | 126*155 | 6 | 2540*1000*1630 | 2500 |
| XC-300J-WJ | 300/375 | 330/412.5 | WP13CD385E200 | 350 | 127*165 | 6 | 2445$1000*1533 | 2700 |
| XC-400J-WJ | 400/500 | 440/550 | 8170ZC | 441 | 170*200 | 6 | 3900*1186*2030 | 8200 |
| XC-500J-WJ | 500/625 | 550/687.5 | CW6200ZD | 600 | 200*270 | 6 | 4600*1800*2450 | 12000 |
| XC-600J-WJ | 600/750 | 660/825 | XCW6200ZD-1 | 720 | 200*270 | 6 | 4600*1800*2450 | 12000 |
| XC-700J-WJ | 700/875 | 770/962,5 | CW8200ZD | 800 | 200*270 | 8 | 5300*2000*2500 | 14000 |
| XC-800J-WJ | 800/1000 | 880/1100 | CXW8200ZD-10 | 960 | 200*270 | 8 | 5300*2000*2500 | 14000 |
| XC-900J-WJ | 900/1125 | 990/1237.5 | CW12V200ZD-2 | 1080 | 200*270 | 12 | 5300*2000*2500 | 14000 |
| XC-1000J-WJ | 1000/1250 | 1100/1375 | CW12V200ZD | 1200 | 200*270 | 12 | 5300*2000*2500 | 14000 |
