Weichai 100KW125KVA diesel generator set open-rack soundbox mobile trailer ATS50/60HZ optional
Diesel generator set data model XC100GF Rated output power (KVA/KW) 125/100 Rated output current (A) 180 Mode of connection Three...
Category weichai diesel generator set
Keywords WEICHAI GENERATOR, 100KW GENERATOR SET, 125KVA GENERATOR, DIESEL GENERATOR, SILENT GENERATOR
Email Now
Call Us / Whatsapp

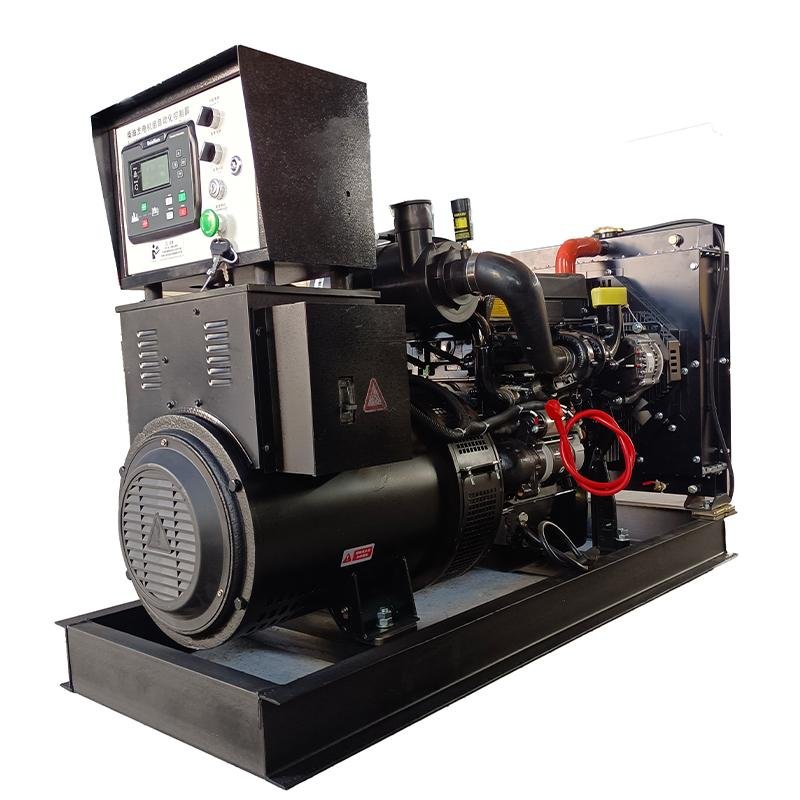

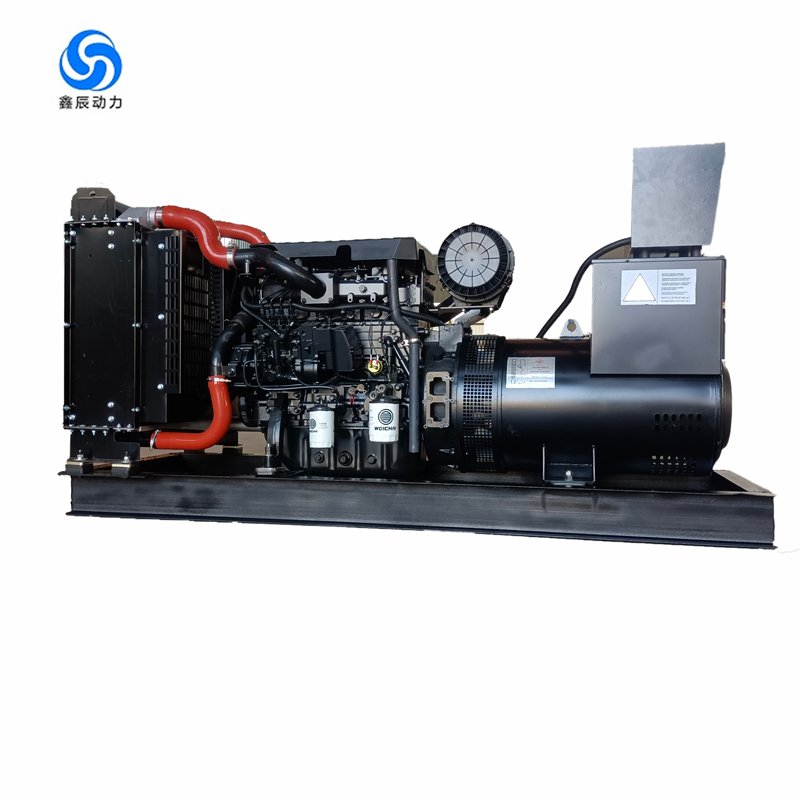

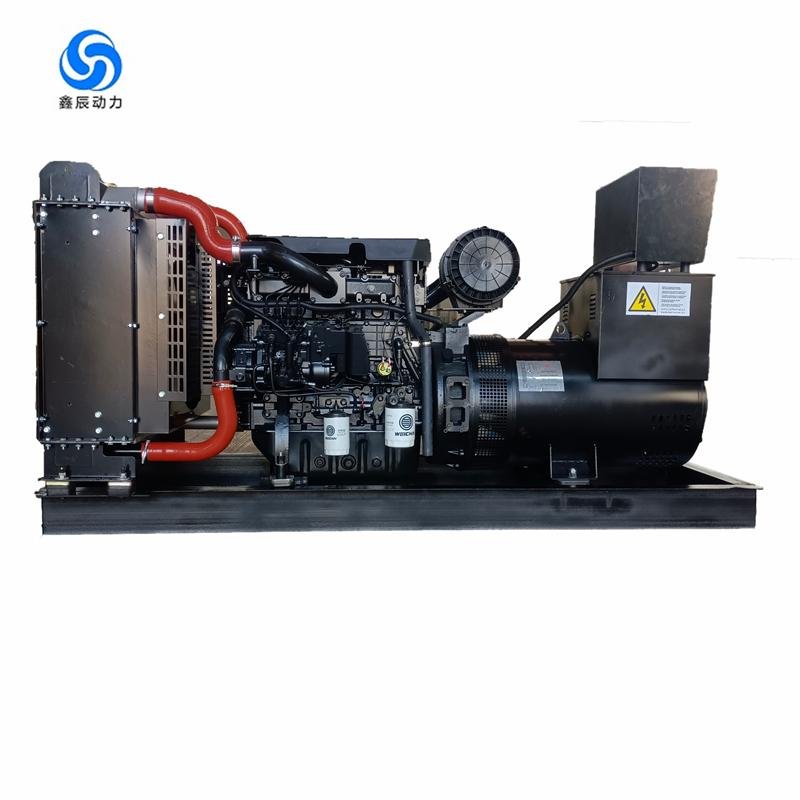

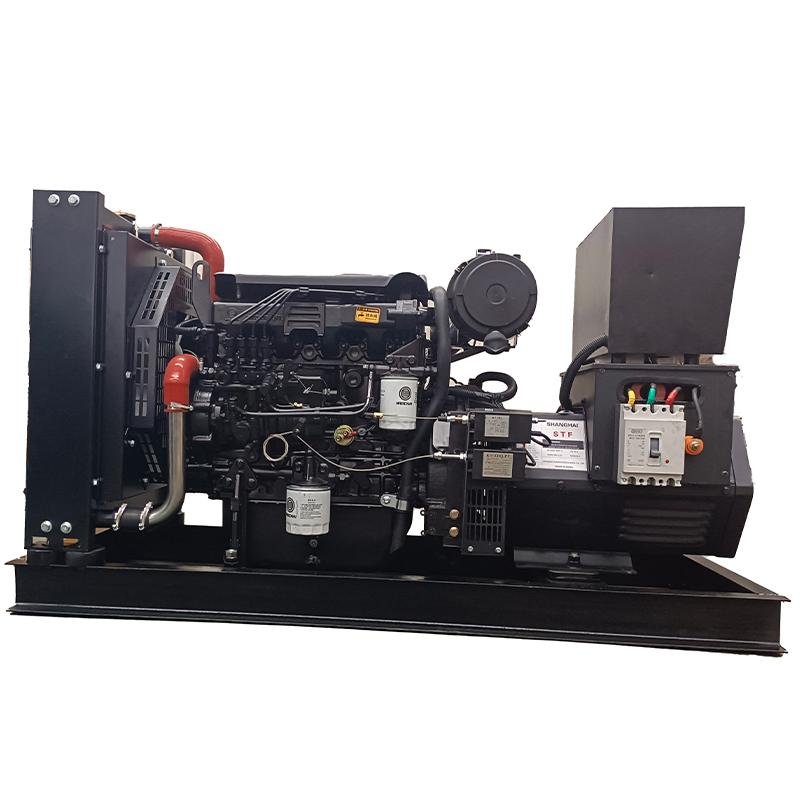

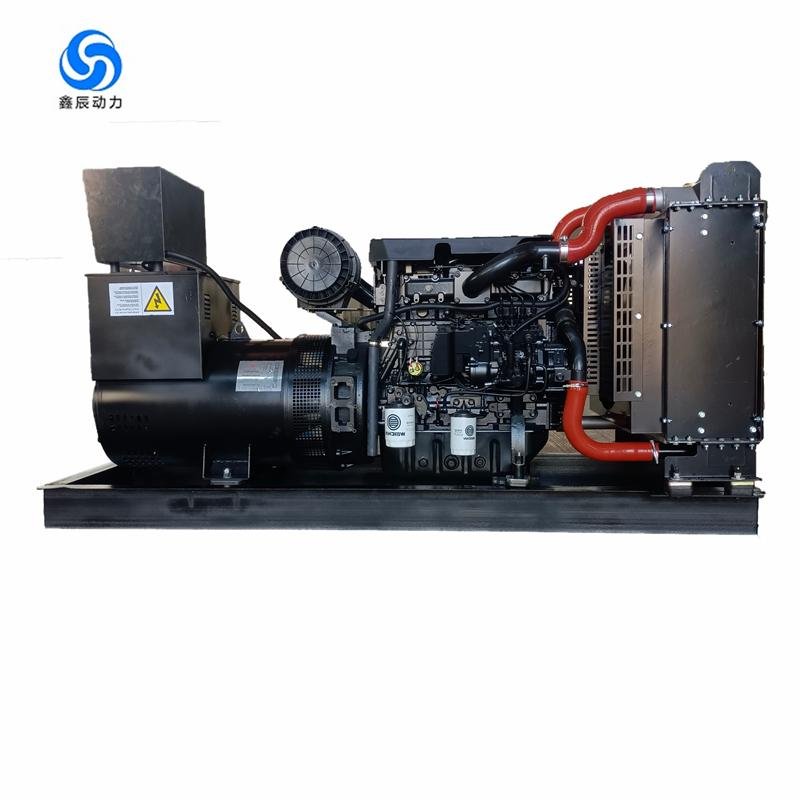

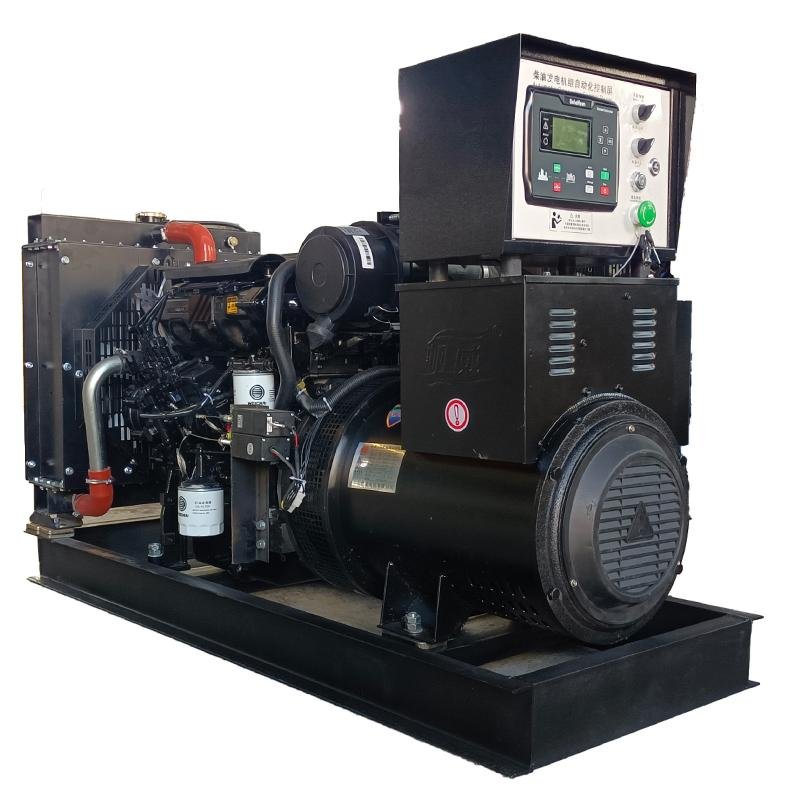

Weichai 100KW125KVA diesel generator set open-rack soundbox mobile trailer ATS50/60HZ optional
| Diesel generator set data | |||
| model | XC100GF | ||
| Rated output power (KVA/KW) | 125/100 | Rated output current (A) | 180 |
| Mode of connection | Three phase four wire | Power factor | 0.8 (lag) |
| Starting mode | 24V DC start | Frequency (Hz) | 50 |
| Engine brand | WEICHAI | Type | WP6D132E200 |
| Rated speed (rpm) | 1500 | Maximum engine power (KW) | 132 |
| Engine cooling method | water cooled | Number of cylinders | 6 |
| Generator brand | Stanford (Shanghai) | Model | STF274-100 |
| Power (KVA/KW) | 125/100 | Levels of protection | IP23 |
| Insulation grade | H | Efficiency (%) | 98.6 |
| No-load voltage adjustment range | ≥±5% | Voltage control mode | AVR |
