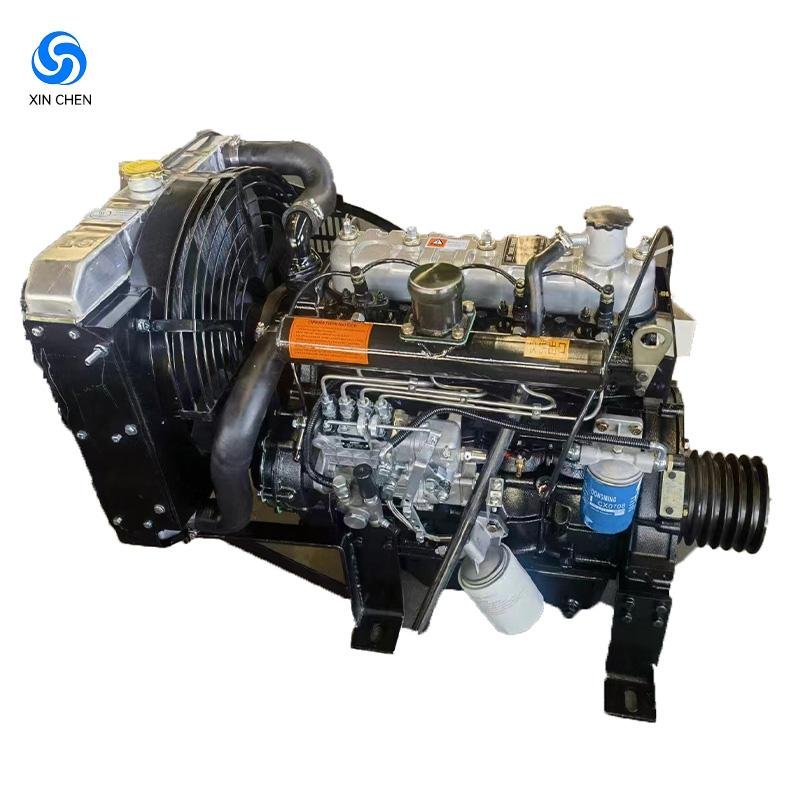

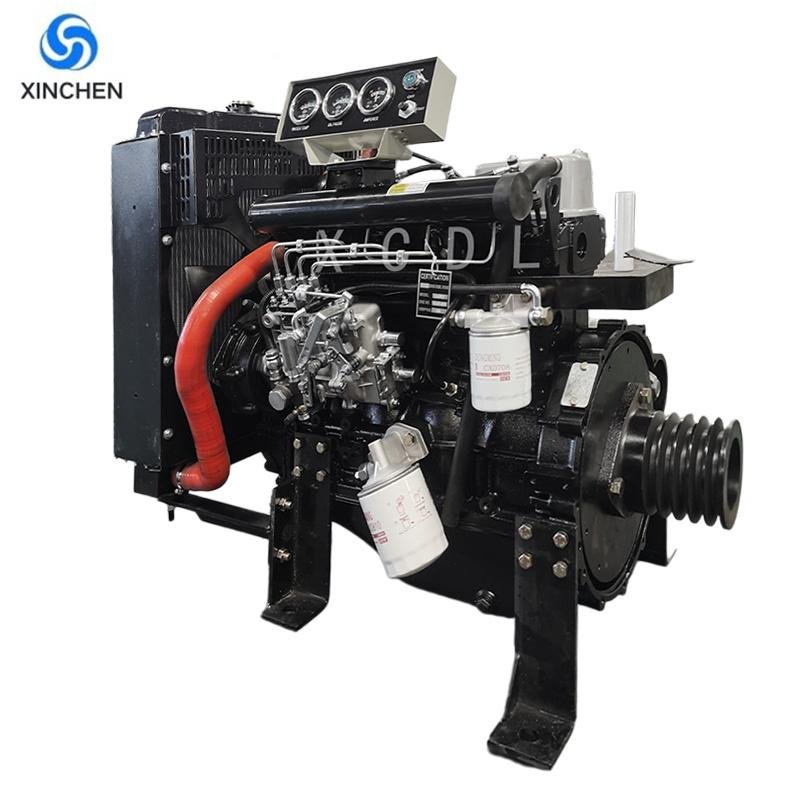

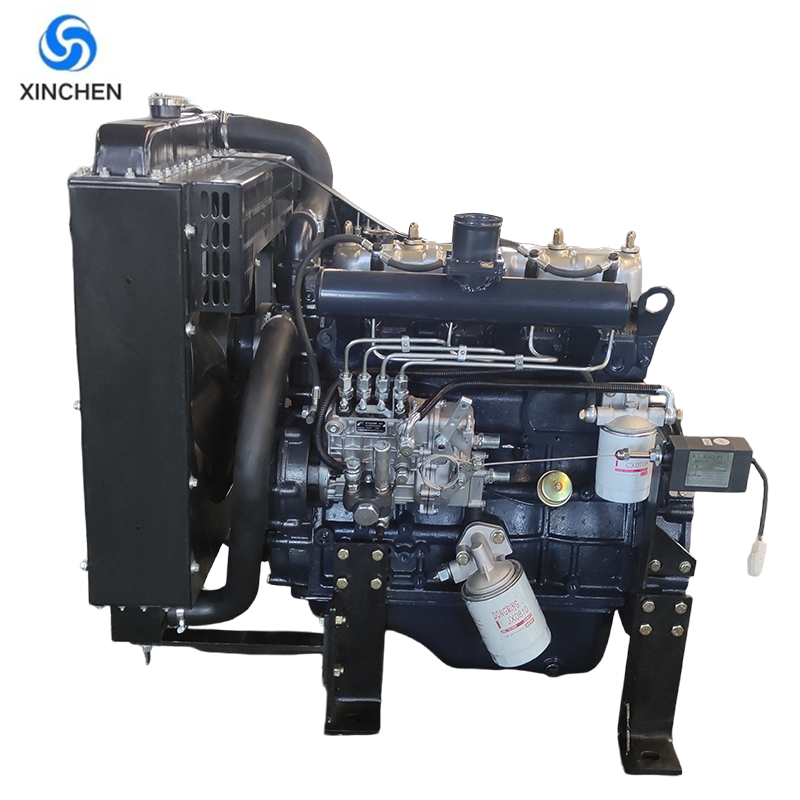

ZH490P High-quality four-cylinder water-cooled diesel engine assembly, clutch pulley optional
| ZH490P技术参数（ZH490P Technical Parameters) |
||||
| 发动机型号 Model |
ZH490P | |||
| 标定功率及相应转速(KW/r/min) Rated Power and Corresponding Speed |
26/1500 | 30/1800 | 32/2000 | 34/2400 |
| 最高空载转（r/min） Maximum No‑load Speed (r/min) |
1578 r/min(50HZ) | 1894 r/min(60HZ) | 2105 r/min(50HZ) | 2526 r/min(50HZ) |
| 最低空载稳定转速 Minimum no-load stable speed |
650r/min | |||
| 结构形式 Type |
直列式、水冷式、四冲程 Inline, water-cooled, four-stroke |
|||
| 燃烧方式 Burning method |
直喷 Direct injection |
燃烧式 Burning chamber |
||
| 气缸数 Number of cylinders |
4 | |||
| 缸径*行程 Bore × stroke |
90×100mm | |||
| 排量 Displacement |
2.54L | |||
| 压缩比 Shrinkage ratio |
18:1 | |||
| 气缸工作顺序 Ignition sequence |
1-3-4-2 | |||
| 进气方式 Air intake method |
自然吸气 Normally aspirated |
|||
| 冷却方式 Cool the way |
封闭式强制水循环冷却系统 Closed forced water circulation cooling system |
|||
| 启动方式 Activation Method |
24伏电动起动 24VElectric start |
|||
| 连接方式 Connection Type |
逆时针方向（从飞轮端开始） Counterclockwise (from flywheel end) |
|||
| 连接 Connection |
飞轮壳体 3# flywheel housing |
|||
| 标定转速机油压力 Calibrated speed oil pressure |
0.2-0.4MPa | |||
| 怠速时机油压力 Oil pressure at idling |
≥0.098MPa | |||
| 冷却水出口温度 Cooling water outlet temperature |
≤75-90℃ | |||
| 油温 Oil temperature |
≤95℃ | |||
| 排气温度 Exhaust temperature |
≤500℃ | |||
| 燃料消耗率 Fuel consumption rate |
≤241g/kw.h | |||
| 机油消耗率 Fuel consumption rate |
≤2.6g/kw.h | |||
| 机油等级 Oil grade |
优于CD15W/40 Better than CD15W/40 |
|||
| 燃料类型 Fuel Type |
柴油 Diesel |
|||
| 净质量 Net weight |
205kg | |||
 |
||||
