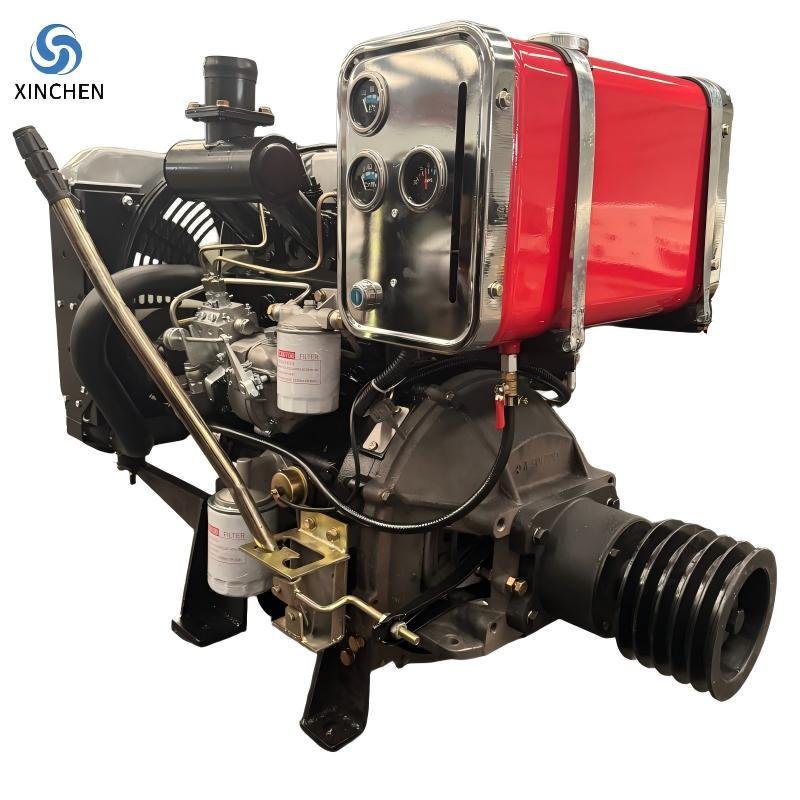

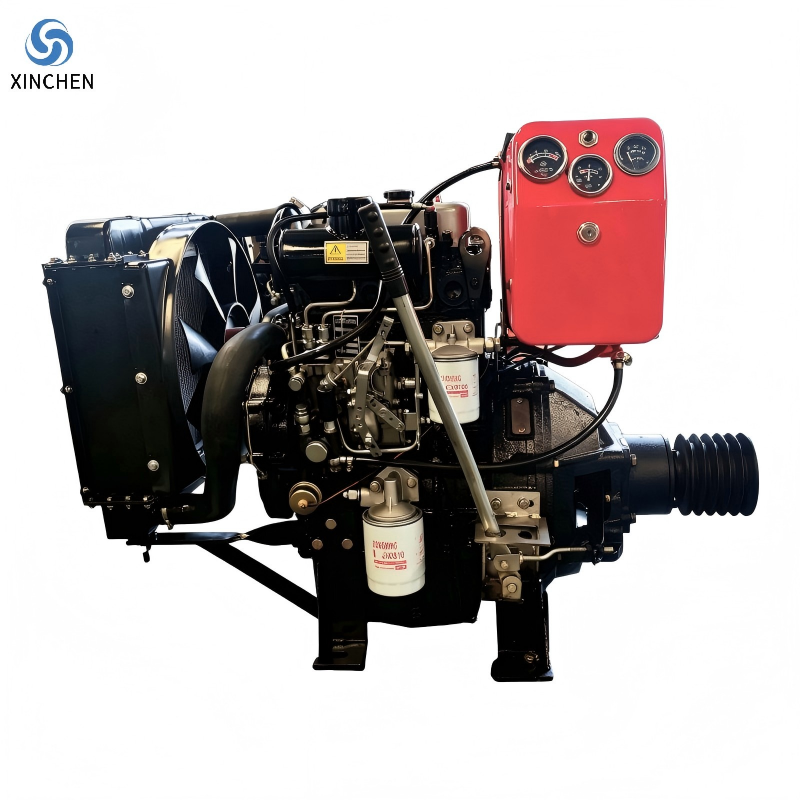

Factory Direct Sales Zh2110/2105 Fixed Power Two Cylinder Water-Cooled Diesel Engine with Clutch

Model

ZH2110P

Diesel engine power

18-26KW

Diesel Engine Rated Speed

1500-2400r/min

Type

In line, water-cooled, four stroke

Minimum speed of empty vehicle

850±50r/min

Intake Type

Natural aspiration

Cyinder Quantity

2

Burning pattern

Direct injection

Cylinder working sequence

1-2

Bore*stroke（mm)

110*117

Lubrication method

Pressure and splash composite type

Cylinder liner type

Wet type

Cooling method

Closed forced water cooling

Displacement

2.22L

Direction of crankshaft rotation

 (viewed from the flywheel end)

Counterclockwise

Compression Ratio

17:1

Speed regulation method

Mechanical speed regulation

Noise

≤107dB(A)

Startup method

Electric starter 12V

Oil consumption rate

≤2.72g/KW.h

Fuel consumption rate (g/KW. h)

≤252g/KW.h

Net mass

(flywheel end stop)

230kg

Dimensions

(flywheel housing end stop)

length * width * height mm

600*510*722

Diesel Fuel

0# diesel oil; the smoke emission at rated working conditions meets environmental protection requirements.
