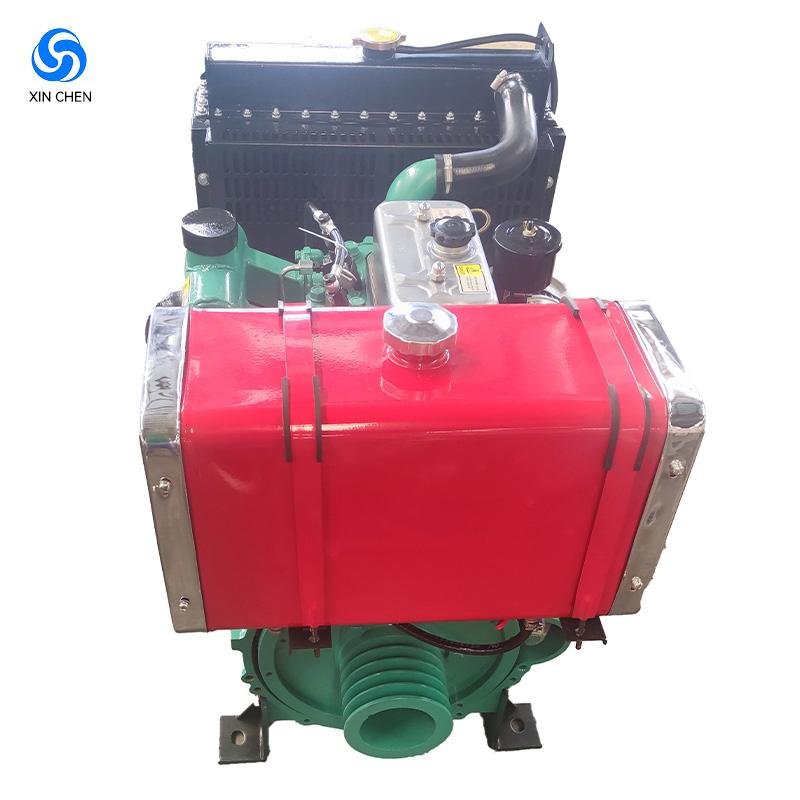

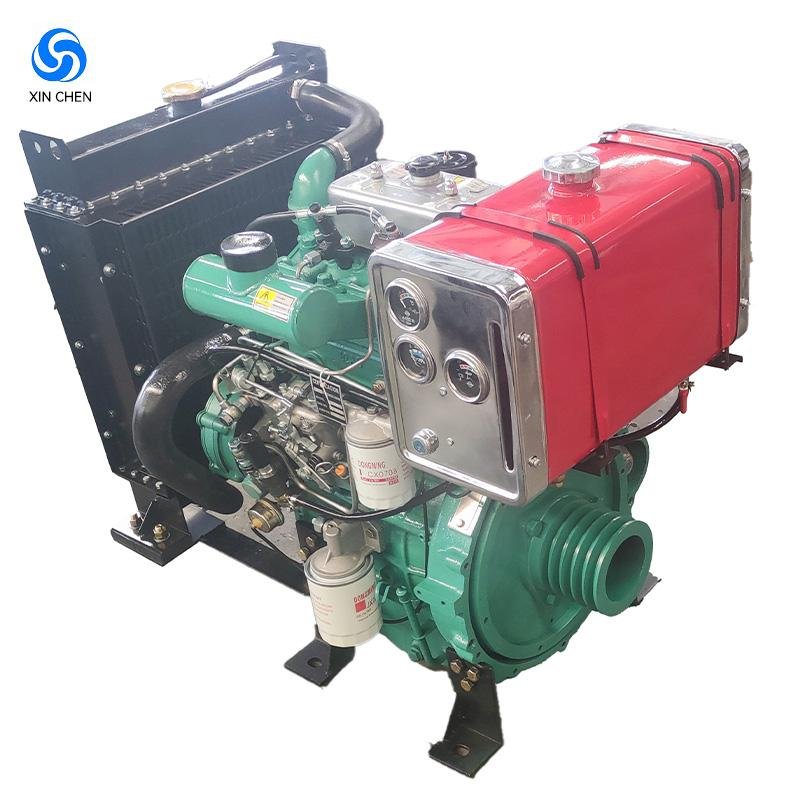

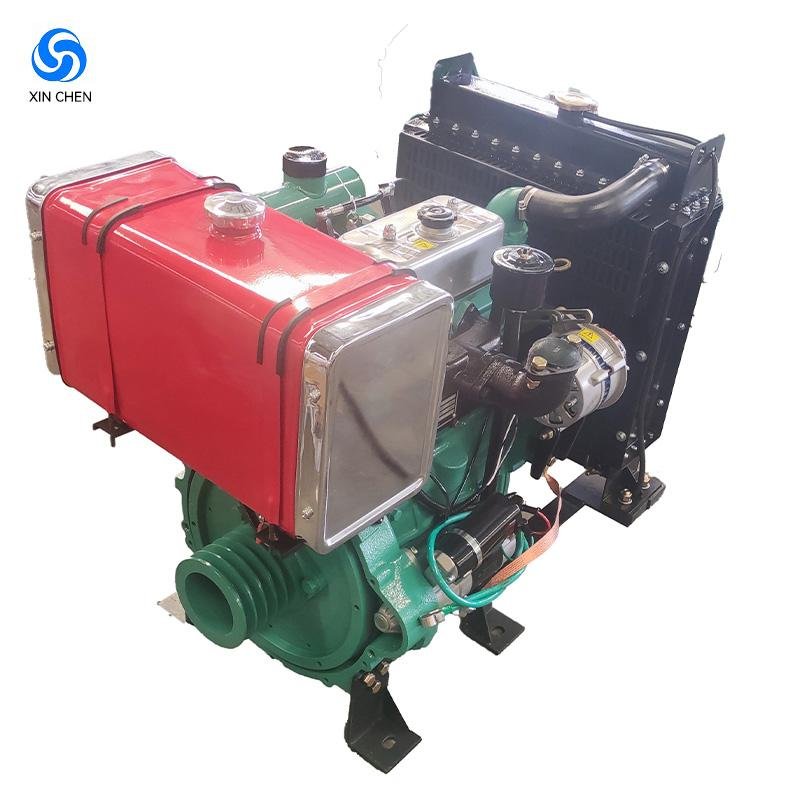

Zh2110d Electric Start 2-Cylinder Water Cooled Diesel Engine

Engine Parameter

Model

ZH2110D

Rated power：

20

KW

Rated speed：

1800

r/min

Number of cylinders：

2

Way of burning：

Direct injection

diameter×stroke：

110×117

(mm)

Displacement：

1.81

L

Compression ratio

18：1

cylinder working sequence：

1-3-4-2

 oil temperature ≤

95

℃

Cooling water outlet temperature： ≤

90℃

Oil  Pressure：

0.2-0.4

MPa

Idle oil pressure： ≥

0.05MPa

Exhaust temperature：

470

℃

Fuel Type：

Diesel

Fuel consumption rate： ≤

240

g/kw.h

Oil consumption rate： ≤

2.04

g/kw.h

  air intake mode

Inhale naturally

 Cooling method：

 water cooling

Speed Control

Mechanical speed regulation

  Starting method：

12V Electric start

Lubricating method

Pressure splash composite

Way of burning：

Direct injection

 Crankshaft rotating direction(ace to output end)：

Anticlockwise

weight

220KG

Dimension（mm)(L×W×H)

706*575*720
