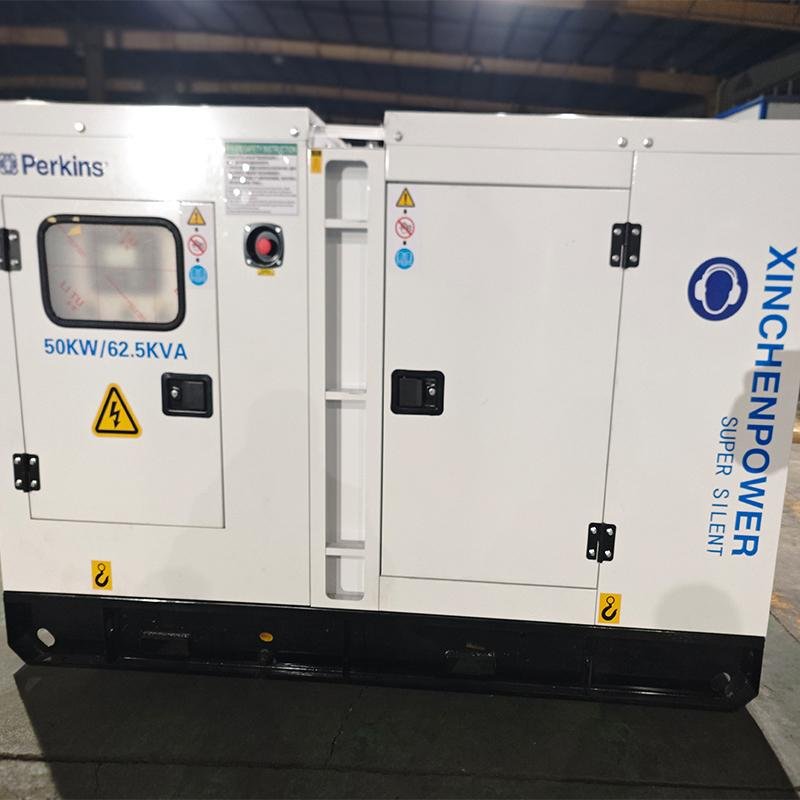

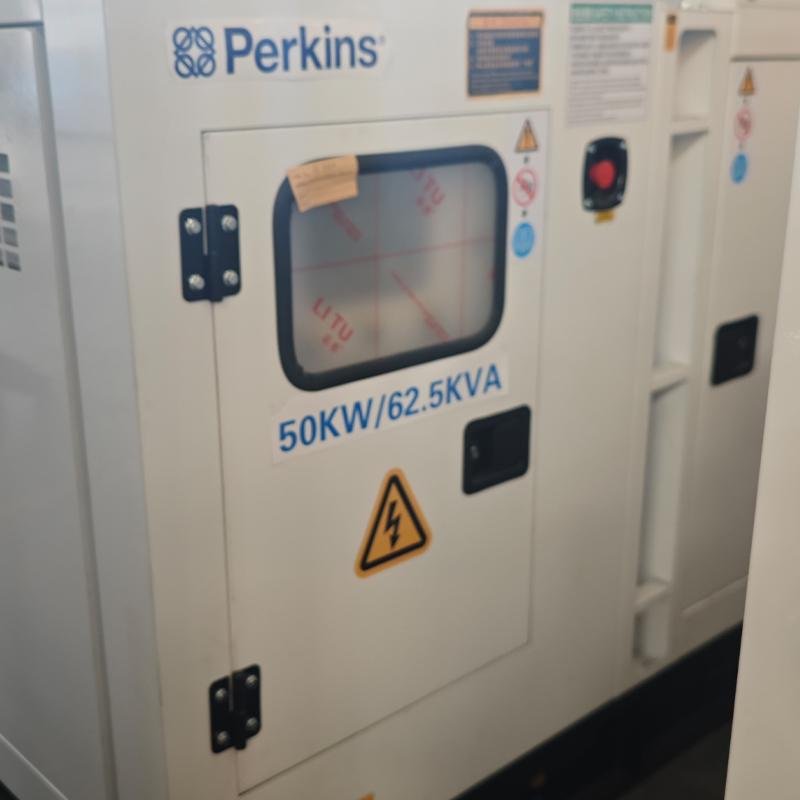

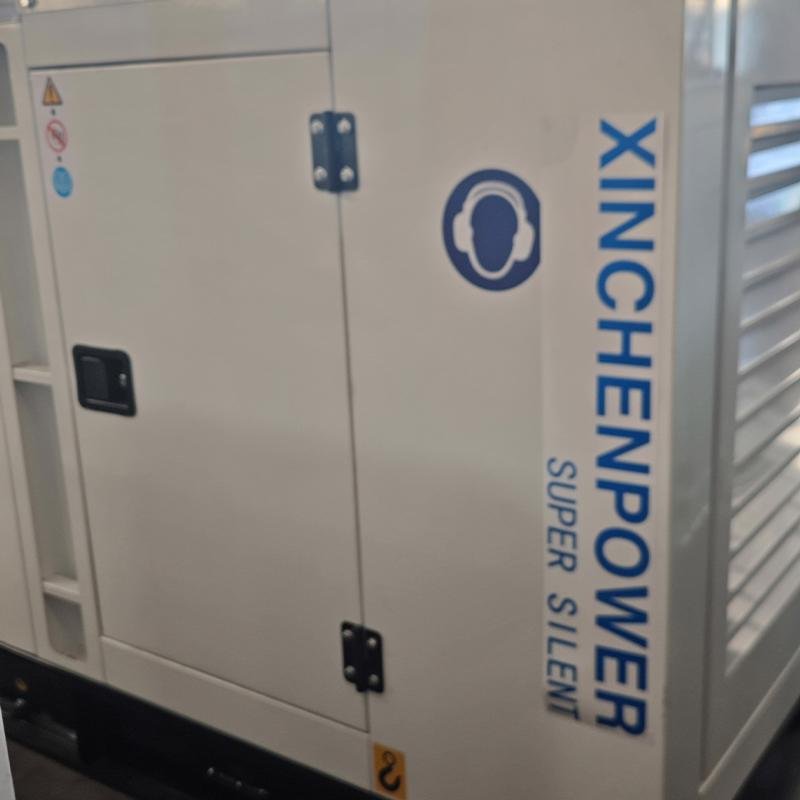

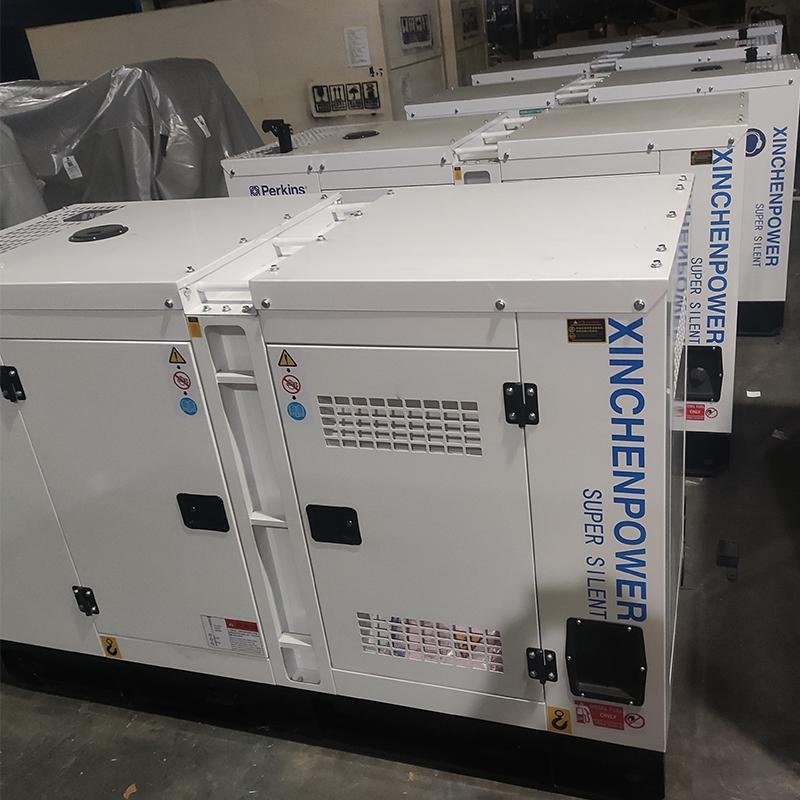

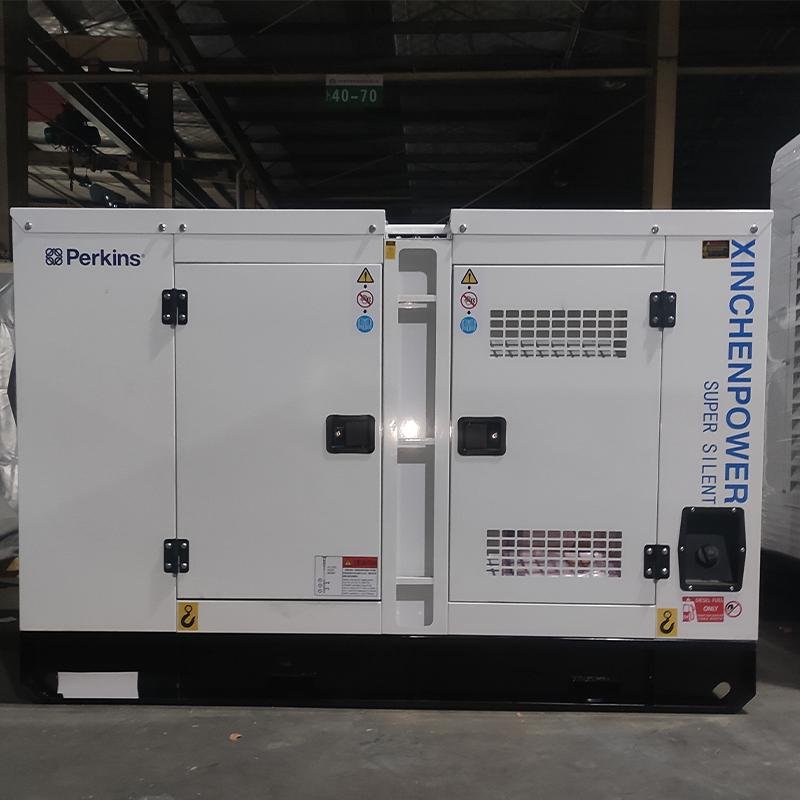

Perkins 50KW mute generator set 50/60HZ four-protection ATS optional

Perkins 50KW mute generator set 50/60HZ four-protection ATS optional
Perkins 50KW mute generator set 50/60HZ four-protection ATS optional
Perkins 50KW mute generator set 50/60HZ four-protection ATS optional
Perkins 50KW mute generator set 50/60HZ four-protection ATS optional
Perkins 50KW mute generator set 50/60HZ four-protection ATS optional
Perkins 50KW mute generator set 50/60HZ four-protection ATS optional
Perkins 50KW mute generator set 50/60HZ four-protection ATS optional
Perkins 50KW mute generator set 50/60HZ four-protection ATS optional

Perkins 50KW mute generator set 50/60HZ four-protection ATS optional

Category Item Specifications/Details Product Identification Model Numbers 1104D-44TG2, 1104D-44TG3 Series 1100 Series   Product...

Keywords Perkins, Perkins generator, diesel generator, silent generator, generator set
Email Now

anna@chendura.com

Call Us / Whatsapp

+8613884816171

Perkins 50KW mute generator set 50/60HZ four-protection ATS optional

Category Item Specifications/Details
Product Identification Model Numbers 1104D-44TG2, 1104D-44TG3
Series 1100 Series
Product Name Electropak
Gross Power 56.6 - 69.0 kWm @ 1500/1800 rpm
Basic Technical Data Cylinders & Arrangement 4 (Vertical inline)
Cycle Four-stroke
Fuel Type Diesel
Induction/Combustion System Turbocharged + Direct injection
Compression Ratio 18.23:1
Bore/Stroke 105.0 mm / 127.0 mm
Cubic Capacity 4.4 litres
Rotation Direction • Anti-clockwise (flywheel view)
• Clockwise (front view)
Firing Order (Cyl.1 = furthest from flywheel) 1, 3, 4, 2
Est. Weight (Dry/Wet) 401 kg / TBA kg
Overall Dimensions Length (Radiator → Air Cleaner Rear) 1239 mm
Width 615 mm
Height (w/ Radiator Brackets) 951 mm
Moments of Inertia (mk²) Engine Rotational Inertia 0.1402 kgm² (excl. pulley/flywheel)
Crank Pulley Inertia Refer to ESM (option-dependent)
Flywheel Inertia 1.14 kgm² (option-dependent)
Centre of Gravity (Wet) Forward from Block Rear 227.2 mm
Above Crankshaft Centre Line 160.4 mm
Offset to RHS of Crankshaft Line 8.1 mm
Performance Reference Standard ISO 3046-1:2002
Rating Tolerance 5%
Speed Variation (Constant Load) G2/G3: +0.75%
Test Conditions Air Temp/Barometric Pressure 25°C / 100 kPa
Relative Humidity 30%
Air Inlet/Exhaust Back Pressure 3 kPa / 12 kPa
Fuel Temp (Inlet Pump) 40°C
Sound Level & Emissions Average Sound Pressure Level 104.5 dBA (A)
Sound Level Note Adjustments needed for non-test ambient conditions (contact Perkins Tech Service)
Emissions Certification Compliant with EU 2011/98/EC Stage IIa
