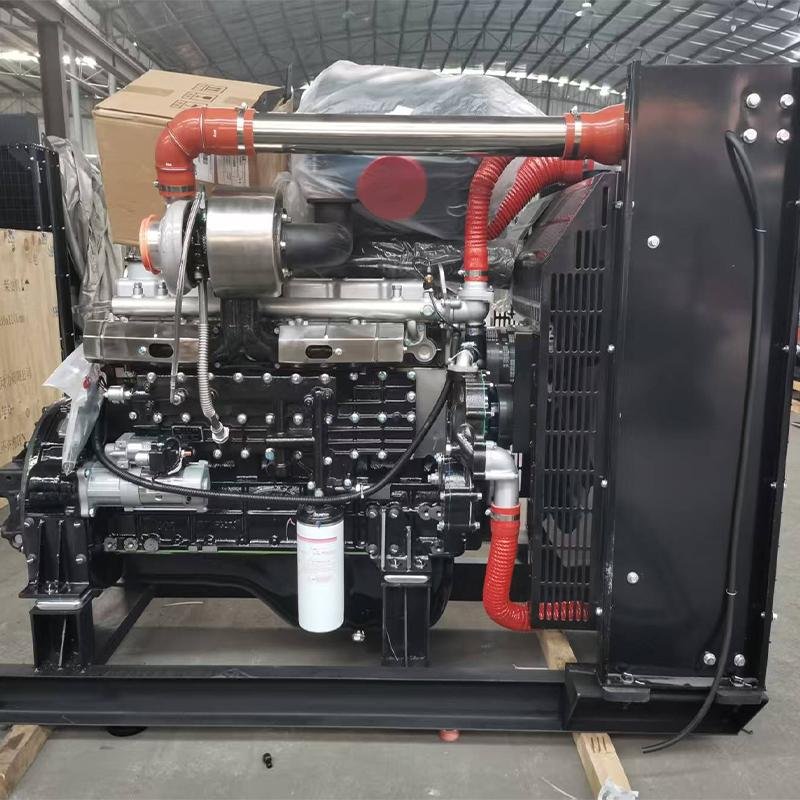

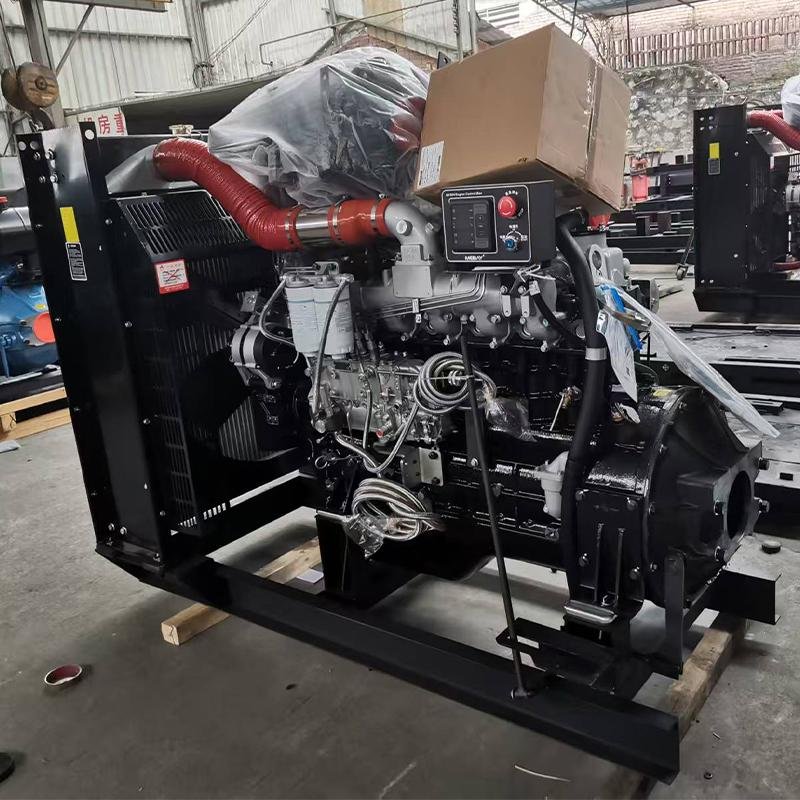

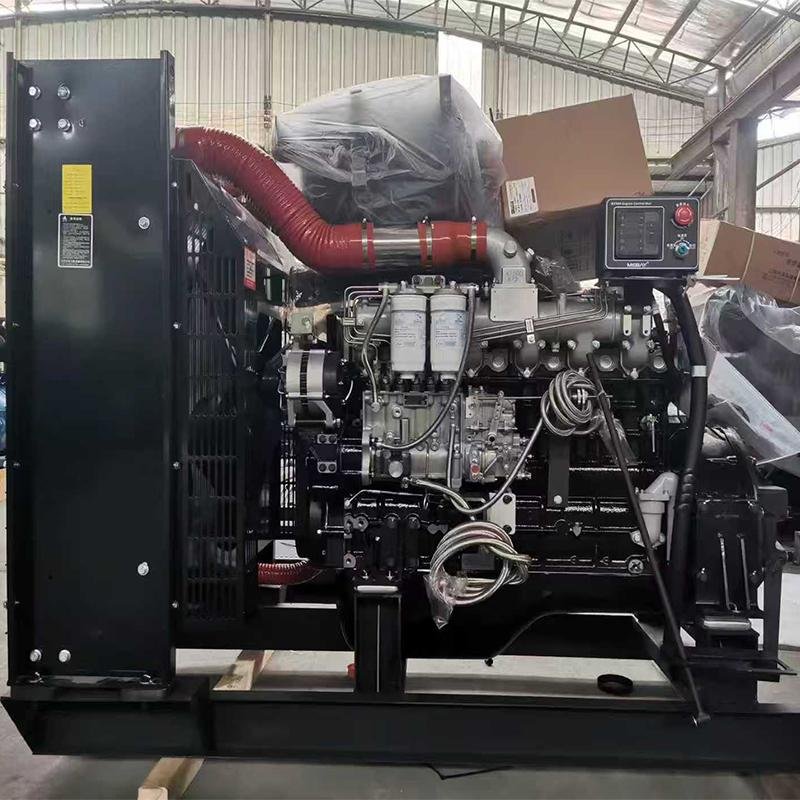

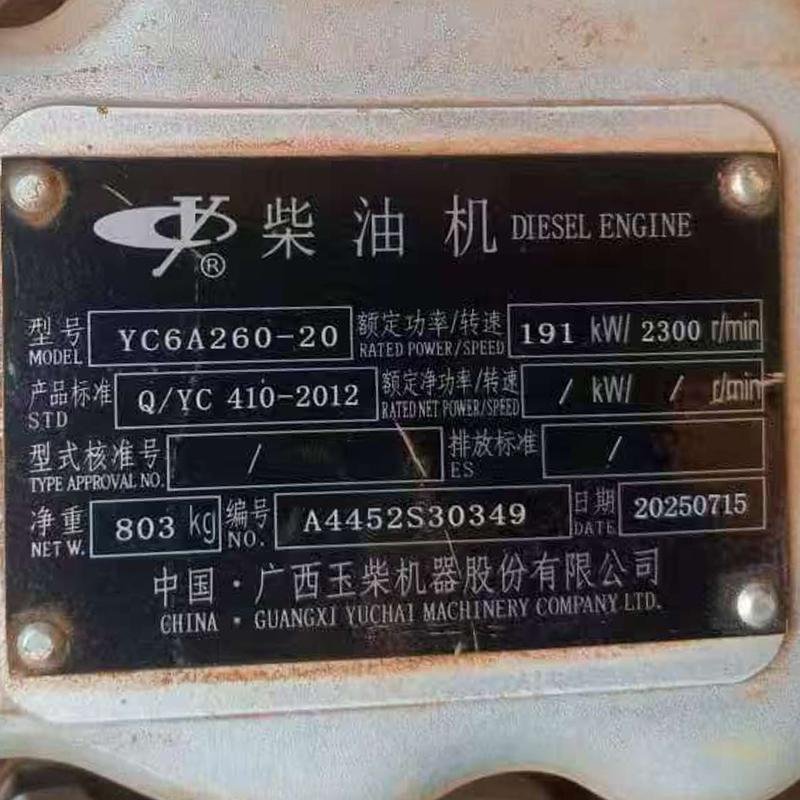

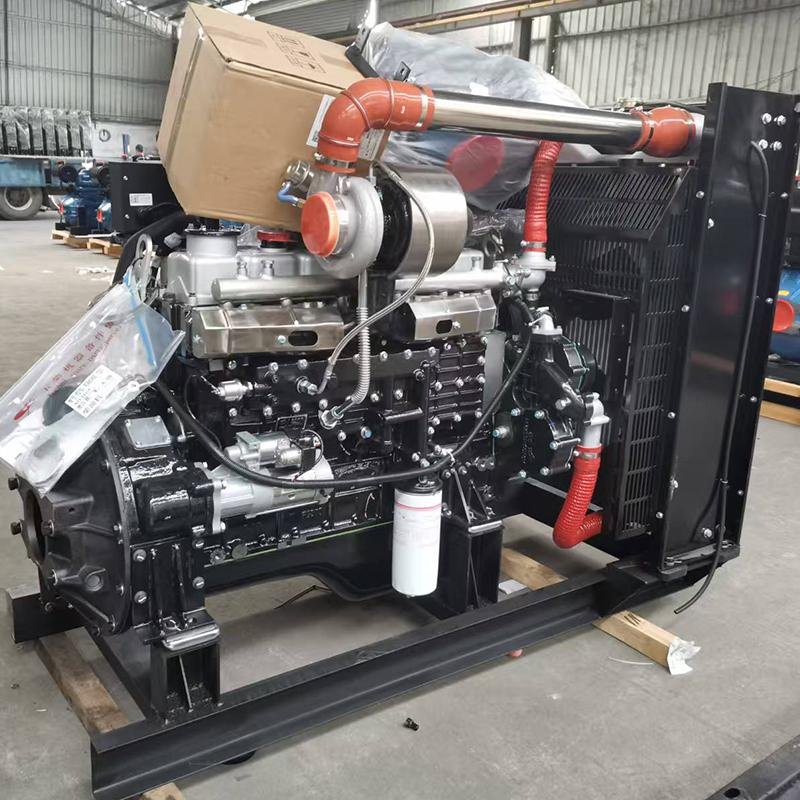

Yuchai Yc6a260-20 Turbocharged Diesel Engine 191kw 2300rpm for Marine & Construction Machinery
Product Name: Yuchai YC6A260-20 Turbocharged Diesel Engine
Detailed Technical Parameters
|
Parameter Item
|
Specification
|
|---|---|
|
Engine Model
|
YC6A260-20
|
|
Engine Type
|
Vertical, In-line, Water-cooled, Four-stroke, Direct Injection
|
|
Intake Method
|
Turbocharging & Inter-cooled
|
|
Number of Cylinders - Bore × Stroke
|
6 - 108×132 mm
|
|
Displacement
|
7.252 L
|
|
Compression Ratio
|
17:1
|
|
Continuous Power / Speed
|
191 kW (260 Ps) / 2300 r/min
|
|
Overload Power / Speed
|
210 kW (285 Ps) / 2374 r/min
|
|
Minimum Specific Fuel Consumption
|
≤ 198 g/kW·h
|
|
Specific Oil Consumption
|
≤ 0.8 g/kW·h
|
|
Crankshaft Rotation Direction (Facing Power Output End)
|
Anticlockwise
|
|
Starting Method
|
Electrical Start
|
|
Net Weight
|
803 kg
|
|
Overall Dimensions (L×W×H)
|
1415×910×1075 mm
|
|
Certifications
|
ZC, CCS, IMO
|
|
Major Overhaul Period
|
More than 10000 hours
|
Product Advantages Summary
- Advanced Technology: Developed by integrating German and Japanese marine engine technologies, ensuring reliable performance and stable operation.
- High Durability: Adopts alloy cast iron cylinder block and cylinder head, with integral crankshaft and sliding bearings, featuring high strengthening degree and long service life.
- Superior Fuel Efficiency: Equipped with ω-type combustion chamber technology, AD-type high-pressure fuel pump and low-inertia small-orifice injector, realizing full combustion and lower fuel consumption compared with domestic products of the same power level.
- Low Maintenance Cost: Applies Yuchai's proprietary piston ring sealing technology and valve oil seal technology, reducing lubricating oil consumption by more than 50% compared with domestic products of the same power level.
- Wide Application: Ideal power for small ships, small fishing boats and 90~120kW marine generator sets, also suitable for 8-12 ton medium-duty trucks and construction machinery.
- User-friendly Design: Compact structure, small size and light weight, facilitating installation, maintenance and repair. Low noise, fast start-up and environmentally friendly performance.
