Steyr series WP10ZL turbocharged 308KW 420HP 6-cylinder high-performance water-cooled diesel engine
Engine Parameter
Model
WP10ZL
Rated power:
Category Construction Machinery Diesel Engine
Keywords steyr diesel engine, engine, diesel engine, 420HP diesel engine, WP10 engine
Email Now
Call Us / Whatsapp

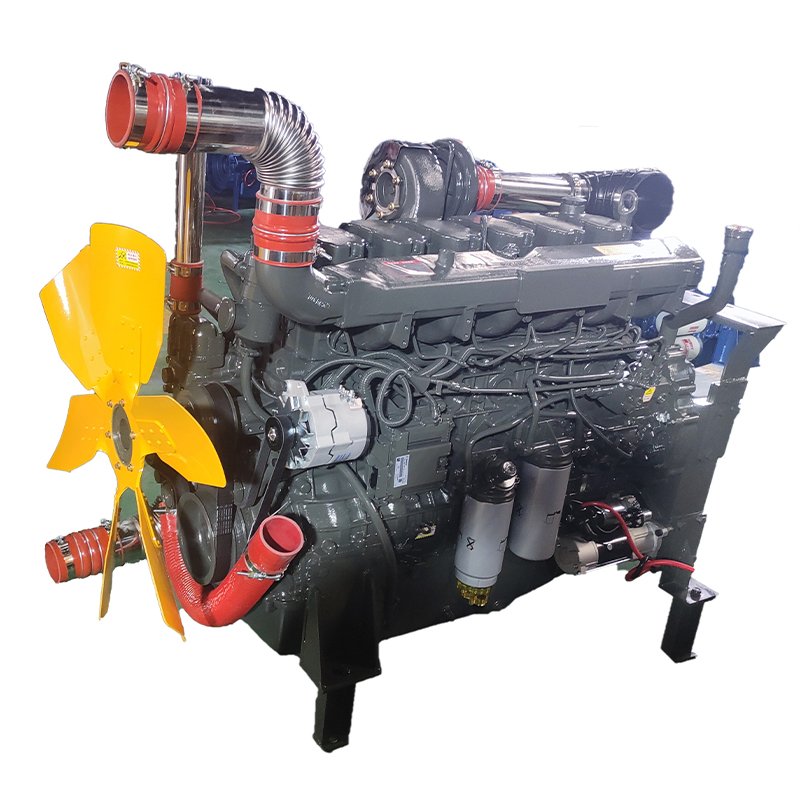

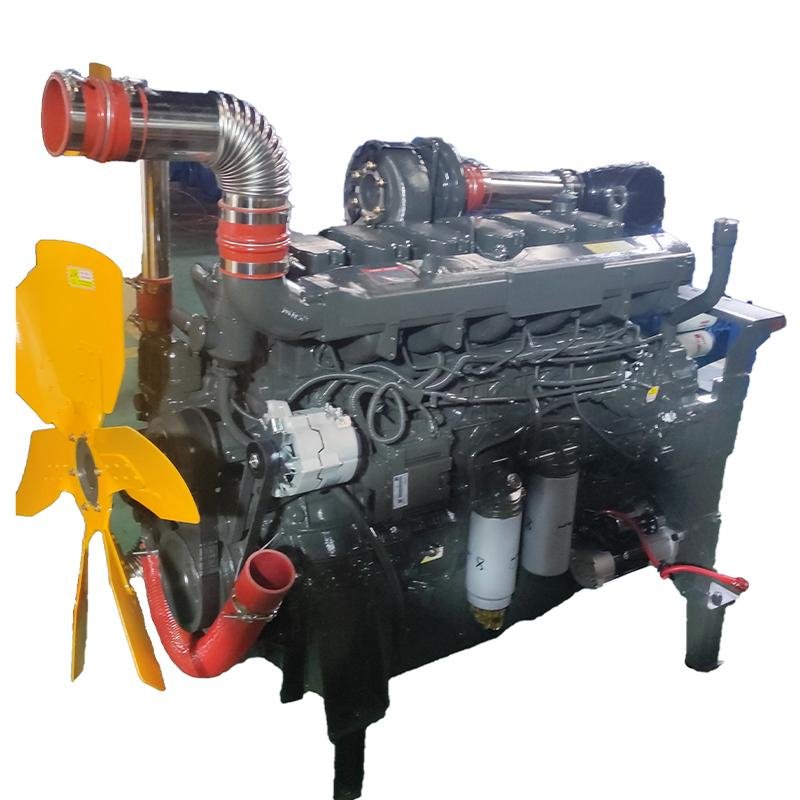

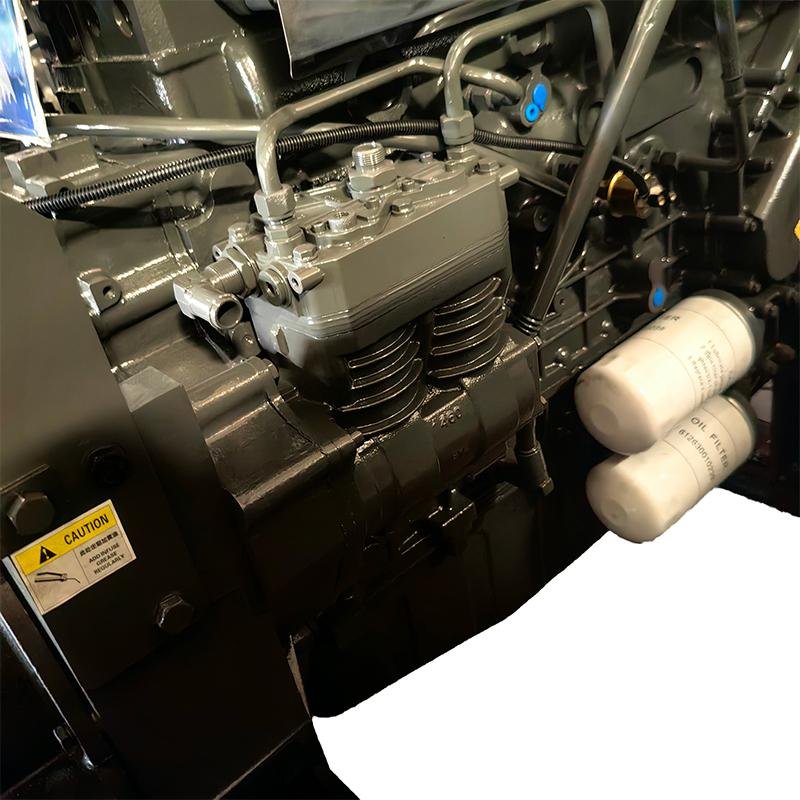

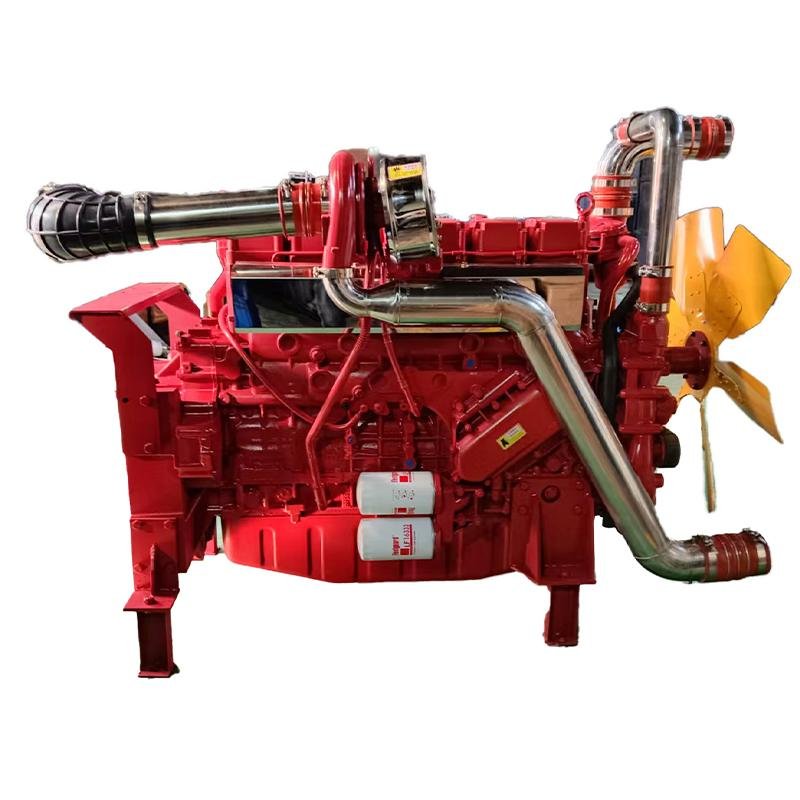

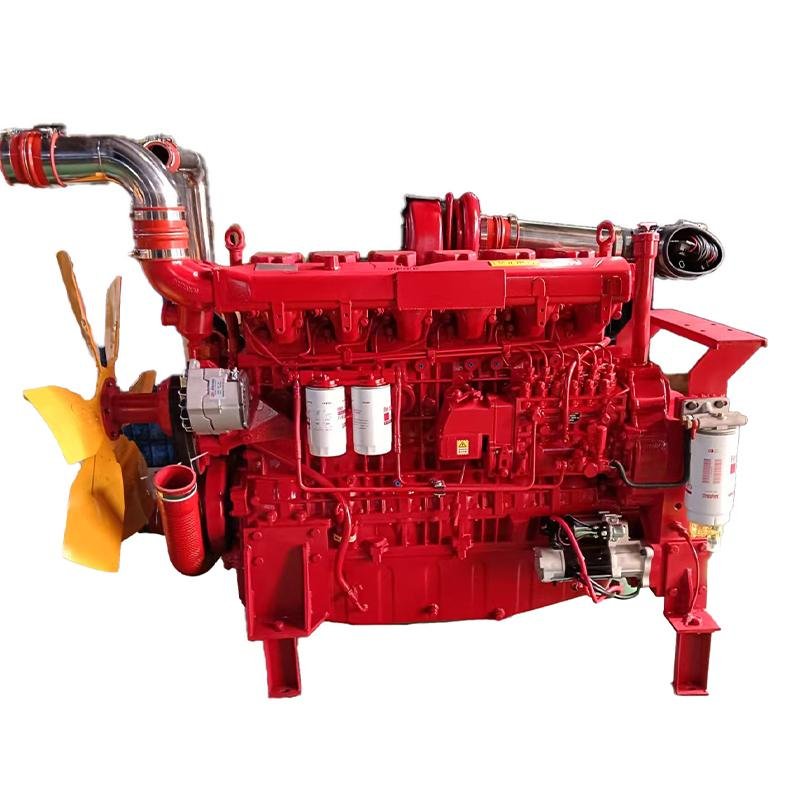

Steyr series WP10ZL turbocharged 308KW 420HP 6-cylinder high-performance water-cooled diesel engine
|
Engine Parameter |
|||||
|
Model |
WP10ZL |
||||
|
Rated power: |
308 |
KW |
Rated speed: |
1500-2200 |
r/min |
|
Number of cylinders: |
6 |
Way of burning: |
Direct injection |
||
|
diameter×stroke: |
126×130 |
(mm) |
Displacement: |
9.726 |
L |
|
Compression ratio |
17:1 |
Combustion system |
Electronically controlled high-voltage common rail |
||
|
oil temperature ≤ |
95 |
ºC |
Cooling water outlet temperature: ≤ |
90ºC |
|
|
Oil Pressure: |
0.3-0.4 |
MPa |
Idle oil pressure: ≥ |
0.05MPa |
|
|
Fuel consumption rate: ≤ |
217 |
g/kw.h |
Fuel Type: |
Diesel |
|
|
Continuous working time |
24 hours |
Cooling method: |
water cooling |
||
|
Lubricating method |
Pressure splash composite |
air intake mode: |
|
||
|
Size（LxWxH） |
1525x730x1063mm |
Weight |
875KG |
||
|
Crankshaft rotating direction(ace to output end): |
Anticlockwise |
||||
