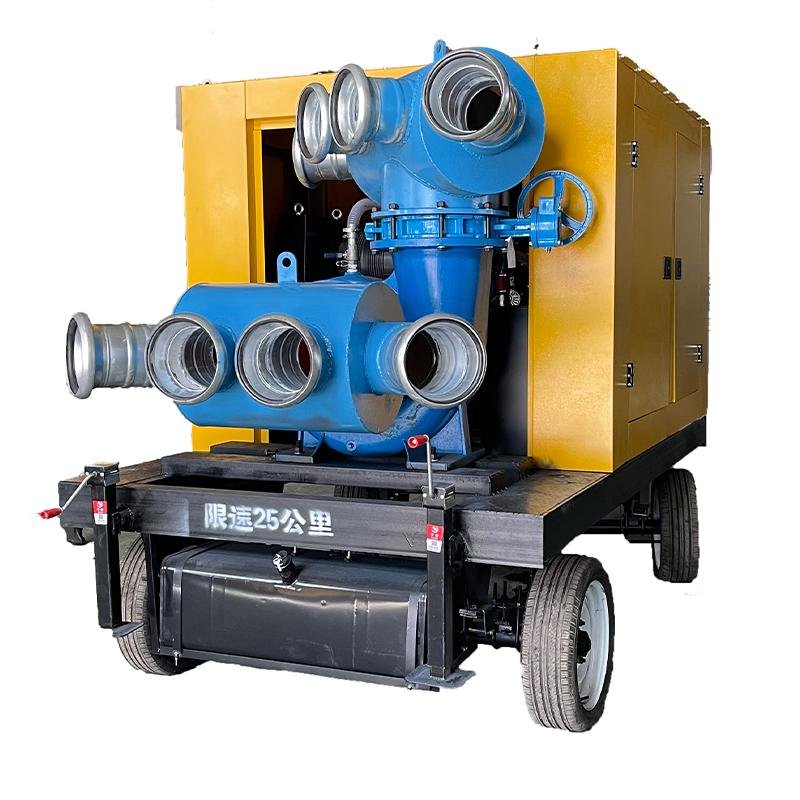

Mobile Flood Control Pump Truck Drainage Pump High Lift Large Flow Emergency Self-priming Large Suction diesel Drainage Pump

Mobile Flood Control Pump Truck Drainage Pump High Lift Large Flow Emergency Self-priming Large Suction diesel Drainage Pump

800 cubic pump unit parameter table The name of the device Diesel engine water pump unit Pump type XC300-800-15 Type of diesel engine R...


Category 800-1000m³
Keywords self-priming pump, drainage pump, Diesel Self-priming Pump, Water pump unit, Flood pumping units

Email Now

anna@chendura.com

Call Us / Whatsapp

+8613884816171


Mobile Flood Control Pump Truck Drainage Pump High Lift Large Flow Emergency Self-priming Large Suction diesel Drainage Pump

800 cubic pump unit parameter table
The name of the device Diesel engine water pump unit Pump type XC300-800-15
Type of diesel engine R6105IZLD
Diesel power 121KW Pump speed 1450r/min
Speed of diesel engine 1500r/min Pump outlet 200mm*2
Cylinder diameter/stroke 105x130mm Water Pump Inlet
Speed control mode Mechanical speed regulation Lift off 15m
Number of cylinders Six cylinders Traffic 800m³/h
Unit size 2800*1700*2100mm weight 2350kg
1000 cubic pump unit parameter table
The name of the device Diesel engine water pump unit Pump type XC300-1000-15
Type of diesel engine R6105AZLD
Diesel power 121KW Pump speed 1450r/min
Speed of diesel engine 1500r/min Pump outlet 220mm*2
Cylinder diameter/stroke 105x130mm Water Pump Inlet
Speed control mode Mechanical speed regulation Lift off 15m
Number of cylinders Six cylinders Traffic 1000m³/h
Unit size 3000*1800*1900mm weight 2400kg
